1. General Description
THEVA231 and THEVA236 boards are designed to
evaluate THCV231 and THCV236 for transmission
of Video data between the host and display.
One high-speed lane can carry up to 14bit data at a
pixel clock frequency from 12MHz to 160MHz.
The chipset, which has one high-speed data lane,
can transmit video data up to 1080p/60Hz.
The maximum serial data rate is 4.00Gbps/lane.
3. Overview
Copyright(C) 2018 THine Electronics, Inc.
Arrow.com.
Downloaded from
THCV231 / THCV236 Evaluation Kit
SerDes Single Link Evaluation Board
Parts Number: THEVA231, THEVA236
(a) THEVA231 (Top Side)
(c) THEVA231 (Bottom Side)

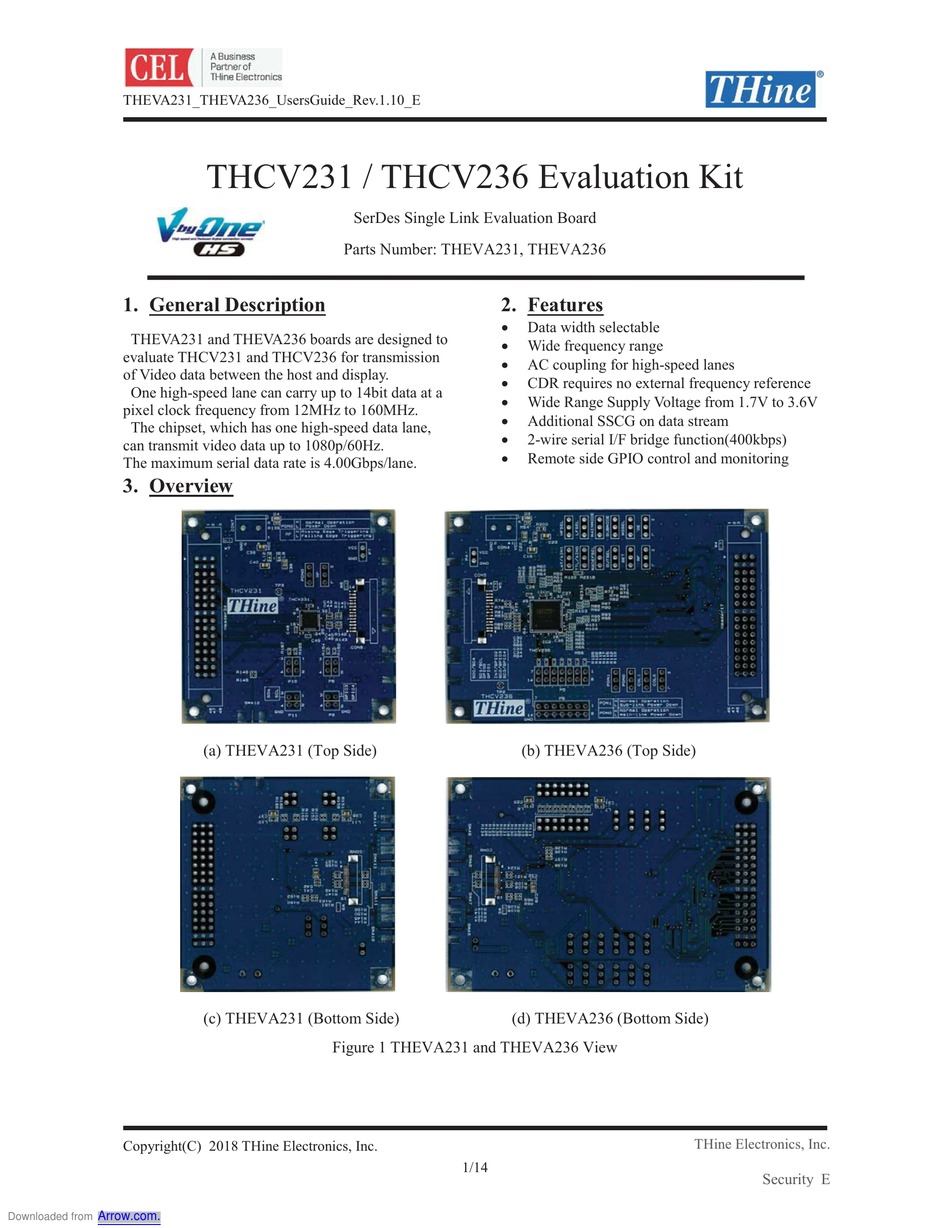

Figure 1 THEVA231 and THEVA236 View
2. Features
x
Data width selectable
x
Wide frequency range
x
AC coupling for high-speed lanes
x
CDR requires no external frequency reference
x
Wide Range Supply Voltage from 1.7V to 3.6V
x
Additional SSCG on data stream
x
2-wire serial I/F bridge function(400kbps)
x
Remote side GPIO control and monitoring
(b) THEVA236 (Top Side)
(d) THEVA236 (Bottom Side)
1/14
THine Electronics, Inc.
Security E
Advertisement
Related Manuals for THine GEL THCV231
Summary of Contents for THine GEL THCV231
- Page 1 The maximum serial data rate is 4.00Gbps/lane. 3. Overview (a) THEVA231 (Top Side) (b) THEVA236 (Top Side) (c) THEVA231 (Bottom Side) (d) THEVA236 (Bottom Side) Figure 1 THEVA231 and THEVA236 View THine Electronics, Inc. Copyright(C) 2018 THine Electronics, Inc. 1/14 Security E Arrow.com. Downloaded from...
-
Page 2: Power Supply Setup
W6: Connect the VCC power supply with pin#18 and 19 of CON6. (a)THEVA236 (Top Side) (b) THEVA236 (Bottom Side) Figure 4 THEVA236 Power Supply from / to Each Connector THine Electronics, Inc. Copyright(C) 2018 THine Electronics, Inc. 2/14 Security E Arrow.com. Arrow.com. - Page 3 THEVA236 R108, R109, R121, R124 R105, R106, R107, R114, R127 (a)THEVA231 (Bottom Side) (b)THEVA236 (Bottom Side) Figure 6 Resistors Mounting for 0.5mm Pitch Connector THine Electronics, Inc. Copyright(C) 2018 THine Electronics, Inc. 3/14 Security E Arrow.com. Arrow.com. Arrow.com. Downloaded from...
- Page 4 R74, R78, R81, R83, R86, R89, THEVA236 R121, R124, R127 R91, R94, R105, R106 (a)THEVA231 (Bottom Side) (b)THEVA236 (Bottom Side) Figure 7 Resistors Mounting for SMA Connector THine Electronics, Inc. Copyright(C) 2018 THine Electronics, Inc. 4/14 Security E Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from...
-
Page 5: Function Setting
Figure 8 High / Low Setting Description with 3HEADER (a) THEVA231 (Top Side) (b) THEVA236 (Top Side) Figure 9 Position of Function Setting pin and Control pin THine Electronics, Inc. Copyright(C) 2018 THine Electronics, Inc. 5/14 Security E Arrow.com. Arrow.com. - Page 6 General Purpose Input Output GPIO3 GPIO3 General Purpose Input Output GPIO4 GPIO4 (*1)A pin function changes by operation mode. Carry out appropriate transact. (THCV231_THCV236_Rev.1.00_E.pdf and up) THine Electronics, Inc. Copyright(C) 2018 THine Electronics, Inc. 6/14 Security E Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
- Page 7 (*1)A pin function changes by operation mode. Carry out appropriate control. (THCV231_THCV236_Rev.1.00_E.pdf and up) (*2)Data Width Setting refers to data sheet for details. (*3)HTPDN connection is option. Refer to data sheet for details. (*4)Address Setting for 2-wire serial I/F THine Electronics, Inc. Copyright(C) 2018 THine Electronics, Inc. 7/14 Security E Arrow.com. Arrow.com.
- Page 8 R133, R134 Furthermore, operational (yellow area) / disconnect (red area) following header. (a) THEVA231 (Top Side) (b) THEVA236 (Top Side) Figure 10 Operational / disconnect header THine Electronics, Inc. Copyright(C) 2018 THine Electronics, Inc. 8/14 Security E Arrow.com. Arrow.com. Arrow.com.
- Page 9 The following show indicating status of each LED. (*1) D4: VCC Power Supply Indicator for THEVA231 D3: VCC Power Supply Indicator for THEVA236 (*1) When VCC is over 2.0V, LED indicator will be valid. THine Electronics, Inc. Copyright(C) 2018 THine Electronics, Inc. 9/14 Security E Arrow.com. Arrow.com.
- Page 10 THEVA231_THEVA236_UsersGuide_Rev.1.10_E 9. Schematic Figure 12 THEVA231 Schematic THine Electronics, Inc. Copyright(C) 2018 THine Electronics, Inc. 10/14 Security E Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...
- Page 11 THEVA231_THEVA236_UsersGuide_Rev.1.10_E Figure 13 THEVA236 Schematic THine Electronics, Inc. Copyright(C) 2018 THine Electronics, Inc. 11/14 Security E Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...
-
Page 12: Bills Of Materials
Resistor 10kΩ(NC) 1005 R131, R132, R133, R134 Resistor 0Ω 1608 0.1W R200 Resistor 10Ω(NC) 1005 0.1W R231A THine Electronics, Inc. Copyright(C) 2018 THine Electronics, Inc. 12/14 Security E Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. -
Page 13: Set Items
52271-1469 ® FFC 14pin 1mm pitch for V-by-One HS Link 98267-0299 Pin Header It’s possible to mount these parts on this board and use. THine Electronics, Inc. Copyright(C) 2018 THine Electronics, Inc. 13/14 Security E Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. - Page 14 Therefore, customers are encouraged to have sufficiently redundant or error-preventive design applied to the use of the product so as not to have THine’s product cause any social or public damage. Neither replacement nor failure analysis of the product is available in any case of defects with the product and/or the product’s components.
