StarGazer - Wake Edition
Stern Drive
February 2023
2/23/2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wake Edition Stern Drive and is the answer not in the manual?

Questions and answers

Related Manuals for STARGAZER Wake Edition Stern Drive

Summary of Contents for STARGAZER Wake Edition Stern Drive

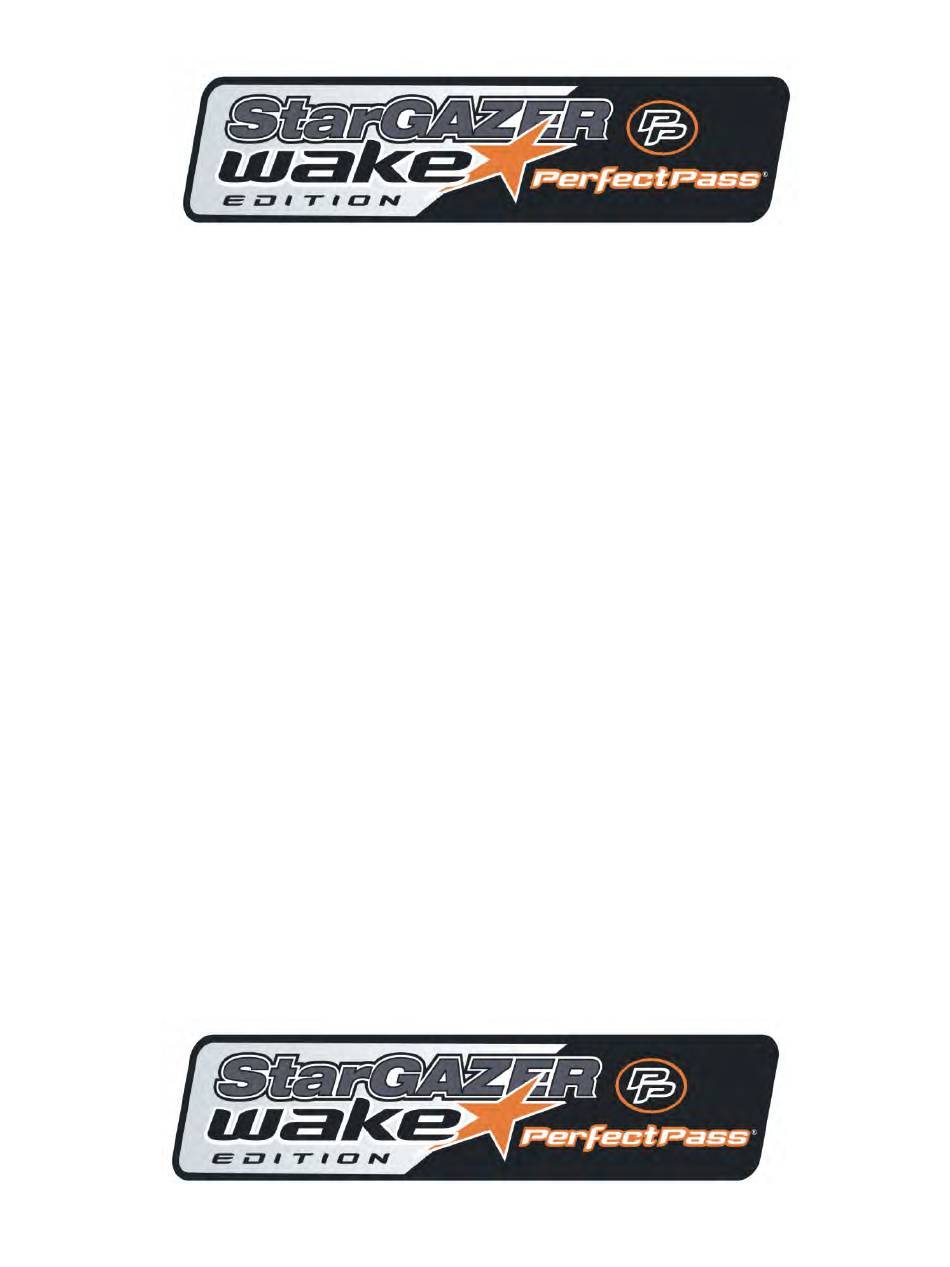

  • Page 1 StarGazer - Wake Edition Stern Drive February 2023 2/23/2023...

  • Page 2: Table Of Contents

    Table of Contents Page No. Section 1 Using StarGazer Wake Edition Wakeboard Speed Mode Setting KDW Section 2 Using RPM Mode Section 3 Using Slalom Mode Course Timing (No Mag Timing) Section 4 Using Name List Section 5 Other Display Features...

  • Page 3: Using Stargazer Wake Edition

    Up Key. For metric, press the Down Key. 3. [ WAKE EDITION ^ = YES ] Press UP Key to confirm Wake Edition software. USING STARGAZER WAKE EDITION There are three operating modes to choose from: (1) Wakeboard Mode is speed based and controls from the GPS Sensor;...

  • Page 4: Setting Kdw

    Once desired speed has been set, you can simply pull up the rider and when set point has been reached or exceeded the system will engage and take over automatically. (You will hear an audile beep and “WAKEBD” heading will become highlighted to confirm engagement.

  • Page 5: Using Rpm Mode

    Section 2 RPM Mode USING RPM MODE In this mode, the screen will appear as follows: 2. Menu Arrow 1. SETPOINT Speed Base Mode Indicator Speed Tachometer Operating in this mode is very similar to using the Wakeboard or Trick modes, except the system is now controlling to an RPM SETPOINT.

  • Page 6: Using Slalom Mode

    Section 3 Slalom Mode 1. Select Slalom Mode. Simply set your speed and go. 2. If you wish to time your passes in a slalom course, you must “MAP” the course. 3. You can select speeds in 1 mph (1.5 kph) increments. The official speeds in MPH are: 24.9, 26.7, 28.6, 30.4, 32.3, 34.2, 36.0 4.
  • Page 7 UP Key at DOWN Key at Entrance in opposite Entrance direction (Entry 2) (Entry 1) Note: Only the entrance gates from each direction will be “mapped”. Step. 3 Starting at one end of the course, idle the boat towards and through the entrance gates.

  • Page 8: Using Name List

    Section 4 Using Name List Additional PerfectPass features are accessed by pressing the MENU & UP keys together. The features available vary depending on the make and model of your boat. If a feature is not present on your PerfectPass then it is not available on your system. To move to the next feature press the MENU key.

  • Page 9: Other Display Features

    Section 5 Other Features If you press the Menu & Up keys together you will access the following. To move to the next feature press the Menu Key. CONTRAST – By pressing the UP or Down Keys you can adjust the contrast level. (3 is normal).

  • Page 10: Driving Tips

    Section 6 Driving Tips Always pull a rider up smoothly. If you accelerate too far past the target speed, you can gently pull the throttle handle back to assist PerfectPass in taking control. When PerfectPass engages you will hear an audible “beep”. In addition when engaged the Modes (Wakeboard) or Name on Screen will become highlighted.

  • Page 11: Troubleshooting

    Section 7 Troubleshooting Detailed Trouble Shooting documents and videos can be found on line at www.perfectpass.com . See Support, “Trouble shooting”. Common Questions & Answers Condition: New System - high idle on start-up. Solution: There is a “gap” at the Brass L-Adapter. See install pics or call PerfectPass for “High Idle Document”.
  • Page 12 Condition: PerfectPass has no digital speed reading. Solution: 1. Check Master Module to ensure GPS cable is properly connected and pins are in proper position and not bent. 2. Does main screen show “No GPS Data”? If so, it does not see the GPS connected or GPS is defective.

  • Page 13: System Reset

    SYSTEM RESET Turn key ON and quickly press and hold “ON/OFF” and “Menu Keys” together for about 5 seconds until [ SYSTEM RESET ^ = YES ] appears. Answer the questions including YES to [Wake Edition Only ^ = YES]. LINKAGE TEST This test should confirm whether the PerfectPass throttle cable &...

  • Page 14: Installation

    Section 8 Installation Instructions See Installation Video “Brass L-Adapter” at www.perfectpass.com Step 1. Installation of Servo Motor / Throttle Cable Refer to detailed instruction photos attached for Volvo or Mercruiser applications. Using the hose clamps on the manifold hose, loosely mount the servo motor on top as shown in photo.
  • Page 15 Step 3. Mount Dash Display Remove the existing speedometer from dash. Install PerfectPass In -Dash Display and connect to Master Module. (Alternatively, you can replace the tachometer). (If there is a speedo tube on the back, it must be clamped). Step 4.

  • Page 16: Gps Receiver

    MerCruiser Stern Drives (5.0, 5.7 & 6.2 L Fuel Injected Engines) Amended instructions from manual for servo motor and throttle cable installation. 1) Install servo motor on large rubber exhaust manifold as shown in this photo. The throttle cable will come forward and turn back 180 degrees to where the PerfectPass cable joins the MerCruiser throttle cable.
  • Page 17 MerCruiser 2005 - 2009 I/O Throttle Connection (5.0, 5.7 & 6.2 L) After you have Servo Motor connected to exhaust manifold, you are ready to install the PerfectPass cable which connects to the MerCruiser cable & throttle arm. Step 1 - Remove MerCruiser throttle cable from the throttle arm bolt, then remove the throttle arm bolt assembly from the engine throttle arm.
  • Page 18 Volvo Cable Installation These photos show a proper installation of cable & servo motor location. Throttle is in neutral position in photo.
  • Page 19 Volvo 5.0 / 5.7 L Amended Instructions Image #1. The servo motor is mounted on the large rubber exhaust hose on driver’s side as shown. The Perfectpass cable should measure about 24” from bracket to the end of cable. The key to a good installation is a smooth 180 degree bend in the cable back to the throttle connection.
  • Page 20 Step 8. GPS Receiver Installation Installation: The GPS Receiver can be installed on the dash board looking up through the wind screen. As long as the receiver has a clear unobstructed view of the sky, it will work properly, even if sitting at an angle to the sky. (It can also be installed under the dash looking up through the fiberglass.
  • Page 21 WARNING RELEASE OF LIABILITY – ASSUMPTION OF RISK IMPORTANT (Detach, sign and mail immediately) YOU MUST READ THIS! The PerfectPass Speed Control device is a high performance mechanism designed solely for use with water ski and wakeboard boats operating under ideal, calm conditions utilizing a spotter and all other safety crew and requirements of tournament water skiing.
  • Page 22 LIMITED WARRANTY During the first 12 months from date of original retail purchase, any PerfectPass component that fails due to defects in materials or workmanship will be repaired or replaced at the option of PerfectPass at no charge. All warranty claims must be authorized in advance and a Return Authorization (R/A #) issued.
