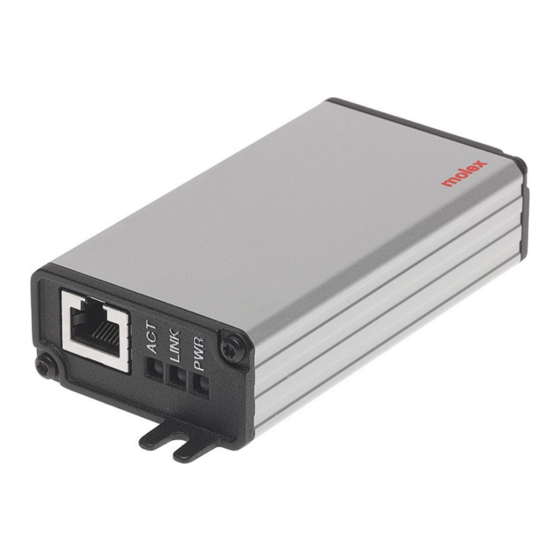

CoreSync MechoShades Gateway
RJ45 Connector for PoE input over
CAT5e (PoE rated)/CAT6/CAT6A
Link Speed Indication – Active when
operating speed is 100Mbps
Link Activity Indicator – Blinks when
detecting activity on the network
Power Indicator LED
Order No.
1809931001
Molex is a registered trademark of Molex, LLC in the United States of America and may be registered in other countries; all other
trademarks listed herein belong to their respective owners
CoreSync MechoShades Gateway
©2022 Molex
10-pin Micro-Fit 3.0 Connector
for CoreSync Bus
42-57 VDC + RS485 Data line
Description
Advertisement
Table of Contents
Related Manuals for molex CoreSync MechoShades
Summary of Contents for molex CoreSync MechoShades
- Page 1 Order No. Description 1809931001 CoreSync MechoShades Gateway Molex is a registered trademark of Molex, LLC in the United States of America and may be registered in other countries; all other trademarks listed herein belong to their respective owners ©2022 Molex...
- Page 2 (CHECK WITH LOCAL AND NATIONAL CODES FOR PROPER INSTALLATION) Molex is a registered trademark of Molex, LLC in the United States of America and may be registered in other countries; all other trademarks listed herein belong to their respective owners...
- Page 3 Dimensions for CoreSync MechoShades Gateways: Mounting pattern for CoreSync 60W UPOE Metal Gateways: Molex is a registered trademark of Molex, LLC in the United States of America and may be registered in other countries; all other trademarks listed herein belong to their respective owners...
- Page 4 48.5W of connected devices. For further details please refer to the CoreSync Academy Module “Device Layout & Design Overview”. Molex is a registered trademark of Molex, LLC in the United States of America and may be registered in other countries; all other trademarks listed herein belong to their respective owners...
- Page 5 The author has made every attempt to ensure the accuracy and reliability of the information provided in this document. However, the information is provided "as is" without warranty of any kind. Molex does not accept any responsibility or liability for the accuracy, content, completeness, legality, or reliability of the information contained in this document.
