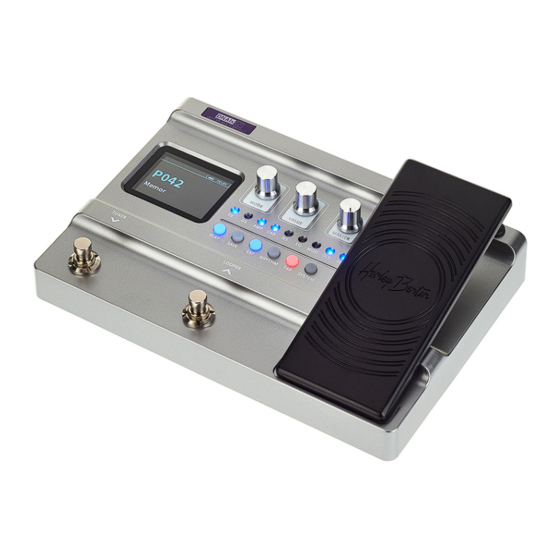

  • Page 1 DNAfx GiT Multi Effects Unit...
  • Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 08.03.2023, ID: 478040...

  • Page 3: Table Of Contents

    6.1 Presets..............................25 6.2 Expression pedal..........................28 6.3 Tap Tempo............................31 6.4 Drum machine..........................32 6.5 Tuner..............................33 6.6 Looper..............................34 6.7 OTG function............................36 6.8 System settings..........................37 6.9 Software............................... 38 Effects list..............................39 DNAfx GiT Multi Effects Unit...
  • Page 4 Table of contents Technical specifications........................53 Plug and connection assignment....................55 Protecting the environment......................57 DNAfx GiT Multi Effects Unit...
  • Page 5 DNAfx GiT Multi Effects Unit...

  • Page 6: General Information

    Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. DNAfx GiT Multi Effects Unit...

  • Page 7: Further Information

    Personal consultation For personal consultation please contact our technical hotline. If you have any problems with the device the customer service will Service gladly assist you. 1.2 Notational conventions This manual uses the following notational conventions: DNAfx GiT Multi Effects Unit...

  • Page 8: Symbols And Signal Words

    ð Automatic operation is started. Switch off the device. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. DNAfx GiT Multi Effects Unit...
  • Page 9 This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – danger zone. DNAfx GiT Multi Effects Unit...

  • Page 10: Safety Instructions

    (for example after transport at low outside temperatures). Dust and dirt inside can damage the unit. When operated in harmful ambient conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by qualified service personnel at regular intervals to prevent overheating and other malfunction. DNAfx GiT Multi Effects Unit...
  • Page 11 Unplug the external power supply before electrical storms occur and when the device is unused for long periods of time to reduce the risk of electric shock or fire. DNAfx GiT Multi Effects Unit...

  • Page 12: Features

    40 drum rhythms and 10 metronome rhythms Phrase Looper with 80 seconds recording time Tap Tempo function up to 200 storable presets built-in expression pedal Large LED colour display USB connectivity for editing via PC or MAC robust aluminium housing DNAfx GiT Multi Effects Unit...

  • Page 13: Installation

    Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. DNAfx GiT Multi Effects Unit...
  • Page 14 Installation Connection options Mixer Computer Smartphone / audio device Smartphone OUTPUT AUX IN INPUT LEFT/MONO RIGHT PHONES 300MA Guitar Headphones Ampli er DNAfx GiT Multi Effects Unit...
  • Page 15 AC outlet is protected by a residual current circuit breaker. Failure to do so could result in damage to the device and possibly the user. Connect the supplied mains adapter to the power supply input of the device and then plug the adapter into an AC outlet. DNAfx GiT Multi Effects Unit...
  • Page 16 Ampli er Connect the guitar to the input jack [INPUT] of the unit. Turn off the [AMP] and [CAB] effects. Connect the input of the amplifier to the output jack [LEFT MONO] of the unit. DNAfx GiT Multi Effects Unit...
  • Page 17 Connection to the power ampli‐ fier Connect the guitar to the input jack [INPUT] of the unit. Turn off the [CAB] effect. Connect the RETURN interface of the amplifier to the output jack [LEFT MONO] of the unit. DNAfx GiT Multi Effects Unit...
  • Page 18 Connect the guitar to the input of an amplifier. Connect the SEND interface of the amplifier to the input jack [INPUT] of the unit. Connect the RETURN interface of the amplifier to the output jack [LEFT MONO] of the unit. DNAfx GiT Multi Effects Unit...
  • Page 19 Connect the guitar to the input jack [INPUT] of the unit. Connect an audio interface to the output jack [LEFT MONO] of the unit. Connect a mixer to the output jack [RIGHT] of the unit. Connect the headphones to the [PHONES] jack. DNAfx GiT Multi Effects Unit...
  • Page 20 Connect the guitar to the input jack [INPUT] of the unit. Connect the RETURN interface of the amplifier to the output jack [LEFT MONO] of the unit. Connect a mixer to the output jack [RIGHT] of the unit. Connect headphones to the [PHONES] jack. DNAfx GiT Multi Effects Unit...

  • Page 21: Connections And Operating Elements

    Top side # $ % & ö MASTER MODE VALUE AMP CAB MOD DLY PLAY SAVE RHYTHM SYSTEM TUNER LOOPER 1 Display 2 [MODE] | Rotary control for switching on and off the respective effect modules. DNAfx GiT Multi Effects Unit...
  • Page 22 13 [PLAY] | Button to call up the preset menu screen 14 [TUNER] | Footswitch to activate the tuner Hold down the footswitch to activate the tuner. With the looper activated: Press the footswitch to activate the REC / PLAY / DUB function. DNAfx GiT Multi Effects Unit...
  • Page 23 Connections and operating elements Display 1 Preset number ö 2 Value controlled by the expression pedal 3 Preset name DNAfx GiT Multi Effects Unit...
  • Page 24 A compatible device lets you directly record the songs being played or edit presets with the special editor software. 22 [DC IN] | Connection for the external voltage supply with 9 V DC. When connecting, observe the correct polarity - the inner pole must be negative. DNAfx GiT Multi Effects Unit...

  • Page 25: Operating

    Preset Requirement Function P001…P050 Effects AMP and CAB Connection of full-range devices (headphones, enabled sound card, mixer, full-range speakers, etc.) P051…P100 Effects AMP enabled Connection to the RETURN interface of the guitar amplifier DNAfx GiT Multi Effects Unit...
  • Page 26 ð The effect block is activated. The display shows ‘ON’ . Deactivating effect block Turn [MODE] to select a enabled effect block. Press [MODE]. ð The effect block is deactivated. The display shows ‘OFF’ . DNAfx GiT Multi Effects Unit...
  • Page 27 Via the expression pedal. Via the submenu ‘MST’ in the effects. 6.1.3 Storing presets Press [SAVE]. ð A window for allocating a memory location and a name for the preset to be saved opens up. DNAfx GiT Multi Effects Unit...

  • Page 28: Expression Pedal

    6.2 Expression pedal Setting the effects volume Press [EXP]. ð The menu for setting the expression pedal is called up. Press [VALUE] until the display shows ‘Level/Volume/MST’ . Press [VALUE]. ð The set value is applied. DNAfx GiT Multi Effects Unit...
  • Page 29 ð The set parameter is activated. Calibrating the expression pedal Press [EXP]. ð The menu for setting the expression pedal is called up. Lower the Expression Pedal to the rear and press [VALUE]. ð The setting is confirmed. DNAfx GiT Multi Effects Unit...
  • Page 30 Press [VALUE]. ð The display shows ‘EXP VOL PEDAL: ON’ . Turn [VALUE] to select the desired value for the volume from ‘MIN 000’ to ‘MST 100’ . Press [VALUE]. ð The setting is confirmed. DNAfx GiT Multi Effects Unit...

  • Page 31: Tap Tempo

    Turn [VALUE] to select the desired FXCOMP effect. Press [VALUE]. ð The setting is confirmed. 6.3 Tap Tempo Press [TAP]. Press [DLY]. ð The delay effect is activated. Turn [VALUE] to select the submenu ‘SUB-D’ . DNAfx GiT Multi Effects Unit...

  • Page 32: Drum Machine

    6.4 Drum machine Press [RHYTHM]. ð The drum machine is activated. The LEDs of the [RHYTHM] and [TAP] buttons light up blue. Turn [VALUE] to select the desired submenu. Press [VALUE]. ð The setting is confirmed. DNAfx GiT Multi Effects Unit...

  • Page 33: Tuner

    Sets the operating Metronome. ‘STYLE’ Adjusts the drum rhythm. ‘BPM’ Sets the beats per minute. ‘VOLUME’ Adjusts the volume 6.5 Tuner Hold down the [TUNER] footswitch. ð The tuner is activated. Turn [VALUE] to select the desired submenu. DNAfx GiT Multi Effects Unit...

  • Page 34: Looper

    435 Hz and 445 Hz. 6.6 Looper Hold down the [LOOPER] footswitch. ð The looper is activated. Turn [VALUE] to select the desired submenu. Press [VALUE]. ð The setting is confirmed. DNAfx GiT Multi Effects Unit...
  • Page 35 With PLAY activated: The dubbing is started. Press [TUNER] ‘STOP’ With PLAY/DUB acti‐ Playback or dubbing is stopped. vated: Press [LOOPER] ‘CLEAR’ Press and hold [LOOPER] All audio tracks are being deleted. for one second DNAfx GiT Multi Effects Unit...

  • Page 36: Otg Function

    The device can be used as an audio interface with a smartphone or tablet. Connect the device to a smartphone or tablet using an OTG cable. ð The device is connected for recording audio or video recordings on the mobile device. DNAfx GiT Multi Effects Unit...

  • Page 37: System Settings

    Adjusts the brightness of the display. ‘CAB SIM TRHU’ Sets the different output options in the speaker box simulation of the device. ‘RESET’ Resets the device to factory defaults. ‘OTG OUT’ Sets the output level for OTG mode. DNAfx GiT Multi Effects Unit...

  • Page 38: Software

    To do this, connect your computer to the device via the USB port on the device. Ensure that the device is connected to the power supply via the supplied power adapter. DNAfx GiT Multi Effects Unit...

  • Page 39: Effects List

    535 WAH DUNLOP Crybaby 535Q AUTO WAH @WAH TALK WAH AH RedKid Talk wah ’AH’ TALK WAH OH RedKid Talk wah ’OH’ TOUCH WAH ENVELOPE auto-wah YELLOW COMP YELLOW COMP compressor BLUE COMP BLUE COMP compressor DNAfx GiT Multi Effects Unit...
  • Page 40 MTL ZONE BOSS METAL ZONE MTL MASTER Digitech METAL MASTER OBSESSIVE DIST Fulltone OCD JIMMY OD 1 Paul Cochrane Timmy OD FULL DRV Fulltone Fulldrive 2 SHRED Marshall Shred master Beebee PRE Xotic BB Preamp DNAfx GiT Multi Effects Unit...
  • Page 41 Effects list Number Name Template BeeBee + Xotic BB Plus RIET Suhr Riot TIGHT DS Amptweaker TightRock FULL DS Fulltone GT-500 GOLD CLON Klon Centaur DNAfx GiT Multi Effects Unit...
  • Page 42 Marshall Plexi 100 E650 CL Engl E650 Clean E650 DS Engl E650 Distortion POWERBELL CL Engl E645 Clean POWERBELL DS Engl E645 Distortion BLACKNIIGHI CL Engl EN650 Blackmore Clean BLACKNIGHT DS Engl EN650 Blackmore Distortion DNAfx GiT Multi Effects Unit...
  • Page 43 Orange OR 50 SLOW 100 CR Soldano SLO-100 Crunch SLOW100 DS Soldano SLO-100 Distortion DR.ZEE 18 JR DR.Z Maz18 Jr DR.ZEE RECK DR.Z Z-Wreck JET100H CL Jet City JCA100H Clean JET100H OD Jet City JCA100H Distortion DNAfx GiT Multi Effects Unit...
  • Page 44 CAROL OD Two Rock Coral Overdriven CARDEFF Two Rock Cardiff Ev5050 CL EVH 5150 Clean Ev5050 DS EVH 5150 Distortion HT CLUB CL Blackstar HT Stage 100 Clean HT CLUB DS Blackstar HT Stage 100 Distortion DNAfx GiT Multi Effects Unit...
  • Page 45 HUGEN OD Diezel Hagen Overdrive HUGEN DS Diezel Hagen Distortion KOCHE OD Koch Powertone Overdrive KOCHE DS Koch Powertone Distortion ACOUSTIC 1 Acoustic simulator 1 ACOUSTIC 2 Acoustic simulator 2 ACOUSTIC 3 Acoustic simulator 3 DNAfx GiT Multi Effects Unit...
  • Page 46 Engl Vintage XXL 412 MARK 112 Mesa Boogie Mark 112 REC412 Mesa Boogie Rectifier 412 CITRUS 412 Orange Pc412 CITRUS 212 Orange Pc212 SLOW 412 Soldano SLO 412 DRZEE 112 DR.Z Maz 112 DRZEE 212 DR.Z Z-Wreck 212 DNAfx GiT Multi Effects Unit...
  • Page 47 TWO STONES 212 Two Rock 212 CARDEFF 112 Two Rock 112 EV 5050 412 EVH 5150 412 HT 412 Blackstar HTV 412 GAS STATION 412 Diezel Hagen 412 ACOUSTIC 112 1 x 12” cabinet for acoustic amplification DNAfx GiT Multi Effects Unit...
  • Page 48 5 band graphic EQ for guitar METAL EQ HM 5 band graphic EQ for BASS guitar 6BAND EQ G-6 6 band graphic EQ for Guitar CUSTOM EQ 3 band parametric EQ with adjustable frequencies and ±12Db boost/cut DNAfx GiT Multi Effects Unit...
  • Page 49 Fine tune pitch adjustment ROTARY Simulates a vintage leslie rotating speaker ANA-CHORUS Stompbox style analog chorus TRI-CHORUS Rich multi stage chorus RING MOD Ring modulator Q-FILTER Static notch filter (like a half cocked wah pedal) DNAfx GiT Multi Effects Unit...
  • Page 50 Effects list Number Name Template HIGH PASS Static high frequency pass filter LOW PASS Static low frequency pass filter SLOW GEAR Auto volume swell LOFI Low rate sampling filter DNAfx GiT Multi Effects Unit...
  • Page 51 Digital Delay which responds to instrument dynamics REAL Realistic and natural echo TAPE Recreates swirly 70’s tape echo Digital Delay with modulated repeats REVERSE Backwards delay DUAL DELAY 2 delays with independent controls PINGPONG Stereo delay DNAfx GiT Multi Effects Unit...
  • Page 52 Effects list REVERB Number Name Template ROOM Small room reverb HALL Large room reverb CHURCH Huge room reverb PLATE Studio style plate reverb SPRING Classic spring reverb tank Reverb with modulation CAVE Spacious and atmospheric reverb DNAfx GiT Multi Effects Unit...
  • Page 53 Power supply External power adapter, 100 - 240 V 50/60 Hz Operating voltage / 300 mA , centre negative Dimensions (W × H × D) 230 mm × 156 mm × 33 mm Weight 1.0 kg DNAfx GiT Multi Effects Unit...
  • Page 54 Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20 %…80 % (non-condensing) Further information Amp modelling Drum computer Tuner included Expression pedal USB port Headphone connection MIDI port Line Out Battery operation Power supply included DNAfx GiT Multi Effects Unit...
  • Page 55 180°. Since the interference affects both cores equally, by subtracting the phase-shifted signals, the interfering signal is completely neutralized. The result is a pure signal without any noise inter‐ ference. DNAfx GiT Multi Effects Unit...
  • Page 56 Plug and connection assignment 1/4" TS phone plug (mono, unbalanced) Signal Ground, shielding DNAfx GiT Multi Effects Unit...
  • Page 57 Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. DNAfx GiT Multi Effects Unit...
  • Page 58 Notes DNAfx GiT Multi Effects Unit...
