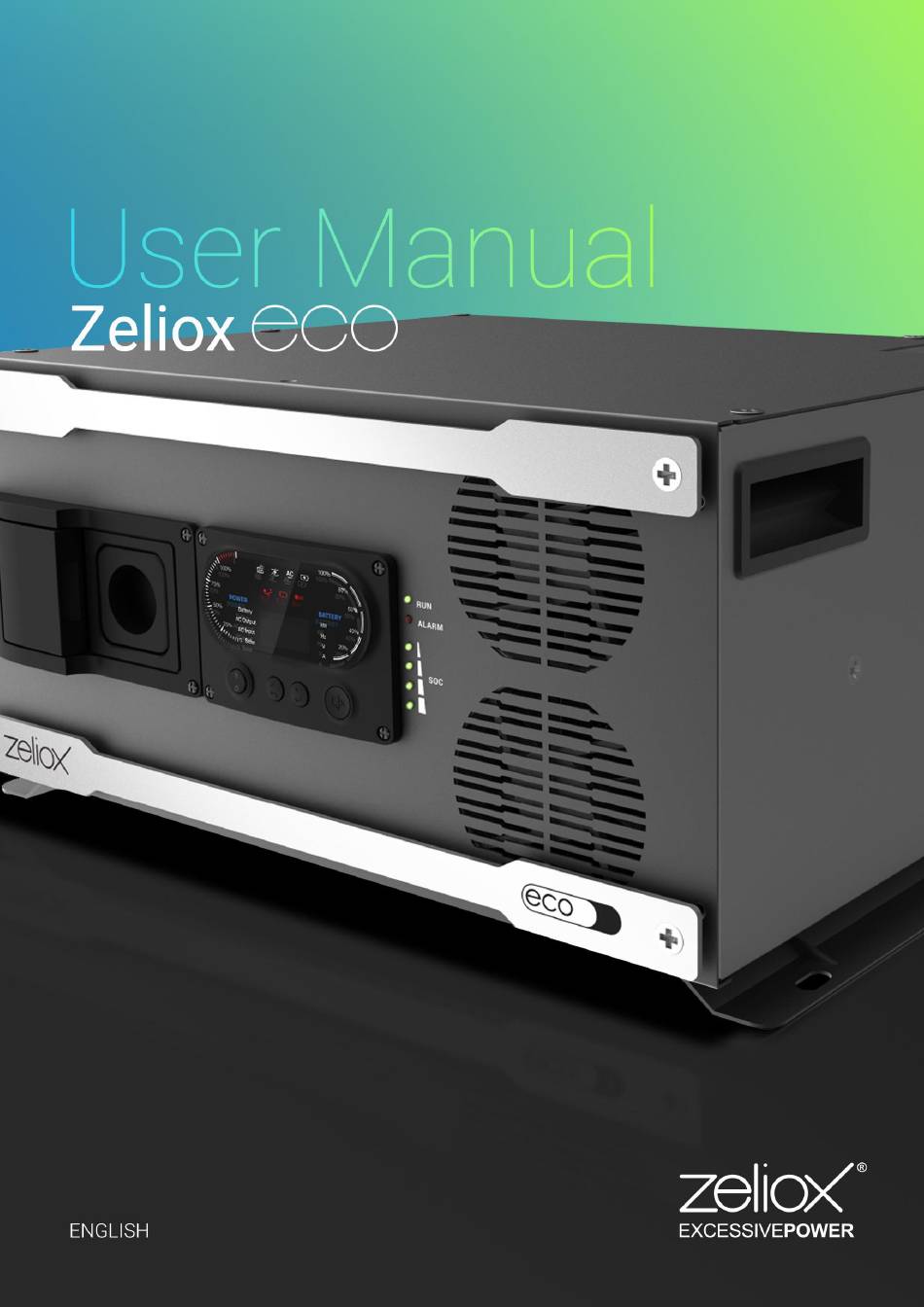

Zeliox ECO User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zeliox ECO

Summary of Contents for Zeliox ECO

  • Page 2: Preface

    Preface This user manual introduces in details of product structure, parameters, basic procedures and methods of installation, as well as operation and maintenance of the product. Please follow below request during the procedure of installation, operation and maintenance  Please connect wires properly while installation, do not reverse connect. To avoid short circuit, please do not connect positive and neg ative poles with conductor (Wires for instance).

  • Page 3: Table Of Contents

    Precautions before installation Positioning and perforation requirements Harness preparation Wiring 3.5.1 Wiring steps Operation 3.6.1 Turn on/off the system 3.6.2 The Zeliox ECO APP 3.6.3 Dry contact output function 3.6.4 Charge Only function STORAGE TRANSPORTATION COMPATIBLE PRODUCTS 4G data stick Solar Mate...

  • Page 4: Safety Instructions

    1 Safety Instructions 1.1 Safety instructions  Please pay attention to the safety signs on the product and manual.  During product installation, operation, and maintenance, electrical safety regulations and related operating procedures must be observed; otherwise it may cause personal injury or product damage. The safety precautions mentioned in the manual are only a supplement to the safety regulations.

  • Page 5: Product Introduction

    2 Product Introduction 2.1 Brief introduction Zeliox ECO is an all-in-one power supply with built in lithium battery, booster charger and inverter charger. 2.2 Features  Built-in lithium iron phosphate battery, using high-performance BMS, with over-discharge protection, over-charge protection, over-current protection, temperature protection and other protection functions.

  • Page 6: Appearance And Dimension

    2.3 Appearance and dimension Figure 2-1 Product dimensions Figure 2-2 Product dimensions For ECO I (1600VA/1.28kWh) and ECO II (2000VA/1.28kWh)
  • Page 7 Figure 2-1 Product dimensions For ECO II+ (2000VA/2.56kWh) and ECO III (3000VA/2.56kWh)

  • Page 8: Interface Definition

    2.4 Interface definition Figure 2-4 Interface definition Silk screen Definition Description System running ① indicator See 2.4.3 for details ② ALARM Fault indicator ③ SOC indicator 1600VA/1.28kWh 2000VA/1.28kWh ④ 2000VA/2.56kWh 3000VA/2.56kWh Table 2-1 Interface definition from figure 2 -4...
  • Page 9 Figure 2-5 Zeliox ECO I and II (1600VA/1.28kWh and 2000VA/1.28kWh) Figure 2-6 Zeliox ECO II+ and III (2000VA/2.56kWh and 3000VA/2.56kWh)
  • Page 10 MPPT Charger Solar Mate interface 12V Output DC load interface M12-100/P Lithium battery power interface for ECO I & ECO II Lithium battery power interface for ECO II+ & ECO M12-200/H Grounded Table 2-2 definition from figure 2-5 and figure 2-6...

  • Page 11: Dry Contact Interface Definition

    2.4.1 Dry contact interface definition Figure 2-7 Dry contact interface Pin terminal Definition terminal PIN1 Remote switch interface Battery Note: The rocker switch on the MEZ s Switch hould remain closed if you want to s PIN2 witch the product ON/OFF remotely. PIN3 Relay output normally closed contact PIN4...

  • Page 12: Mez Display Definition

    Pin terminal Definition terminal PIN12 Relay output normally closed contact PIN13 Cont Neutral point of relay output act 3 PIN14 Relay output normally open contact Table 2-3 definition pin interface 2.4.2 MEZ display definition Icon Definition Inverter on, the icon always on; Inverter off, the icon is off With AC input, the icon always on;...
  • Page 13 ② When charging, the SOC light where it is located flashes, and it does not flash at 100%; ③ No flashes during discharging. When the Zeliox ECO has an alarm, MEZ displays ALM/Err ALM; and when ECO has fault, it displays Err.

  • Page 14: Indicator Light Definition

    2.4.3 Indicator light definition Battery LED1 LED2 LED3 LED4 status Shut down 75%≤SOC≤100% Flashing 1 50%≤SOC＜75% Flashing 1 Power-on 25%≤SOC＜50% Flashing 1 static state 0%＜SOC＜25% Flashing 1 SOC=0 Flashing 1 SOC=100% 75%≤SOC＜ Flashing Flashin when 100% there is a Flashin 50%≤SOC＜75% Charging fault,...

  • Page 15: Product Installation

    If the accessories are not complete, please contact your dealer or our company. Packing List Q’ty Parts Spec. Pictures Zeliox ECO Zeliox ECO User manual Zeliox ECO user manual SA50 connector(gray plastic) SA50 connector (blue plastic) Accessories SA50 connector (red plastic) SA50 connector pin...

  • Page 16: Precautions Before Installation

    Q’ty Parts Spec. Pictures Zeliox ECO I SA120 connector Zeliox ECO II (grey plastic) Zeliox ECO SA175 connector II+ Zeliox (grey plastic) ECO III Zeliox ECO I SA120 connector Zeliox ECO II Zeliox ECO SA175 connector II+ Zeliox ECO III...

  • Page 17: Positioning And Perforation Requirements

    3.3 Positioning and perforation requirements Please select a plane and drill holes according to the installation positioning requirements in figure 3-1. Before use, the product must be effectively fixed and cannot be fixed upside down. The fixing bolt is M8, and the fixing torque is 22Nm.
  • Page 18 Recommended cable specifications Connection port Connector name Pictures Wire silkscreen Polarity Length Color diameter 6~10 mm ≤3m Positive (6~9 AWG) 12V Input SA50（Red） 6~10 mm ≤3m Negative Black (6~9 AWG) 6~10 mm ≤3m Positive (6~9 AWG) 12V Output SA50（Grey） 6~10 mm ≤3m Negative Black...
  • Page 19 Recommended cable specifications Connection port Connector name Pictures Wire silkscreen Polarity Length Color diameter *M12-100/P Standard network ≤9m Black cable *M12-200/H Standard network ≤9m MPPT COM Black cable Standard network ≤9m Data Logger Black cable 0.3~1.5mm Dry contact PLTB1.5-07-BF- NO/C/N ≤9m (16~22 3.81,Green...

  • Page 20: Wiring

    3.5.1 Wiring steps Step 1. Please use the prepared wire (Red Anderson terminal SA50) to connect the 12V Input interface on the ECO and the starter battery. Use a fuse 100A. Step 2. Please use the prepared wire (Grey Anderson terminal SA50) to connect the 12V Output interface on the ECO and the DC load.

  • Page 21: Operation

    Step 8. Please use the prepared wire to connect the M12-100/P(M12-200/H) interface on the ECO and M12-100/P(M12-200/H) lithium battery; Step 9. Please use the prepared wire to connect the M12-100/P(M12-200/H) COM port on the ECO and the Link In port on the M12-100/P(M12- 200/H) lithium battery. 3.6 Operation 3.6.1 Turn on/off the system...

  • Page 22: The Zeliox Eco App

    3.6.2 The Zeliox ECO APP Figure 3-4 Zeliox ECO App By Zeliox ECO APP, you can view the working status and other information of ECO, and you can also do some settings to the ECO. For specific operation instructions, please read the Zeliox ECO APP operation guide.

  • Page 23: Dry Contact Output Function

    3.6.3 Dry contact output function Dry contact 1 The default setting of SOC ≤5% (5%~50% can be set) will activate the output relay dry contact for starting the engine. SOC＝100% (10%~100% can be set) will break the relay output dry contact. Figure 3-5 Dry contact 1 Wiring instructions: 1.
  • Page 24 Dry contact 2 When the built-in Booster Charger starts charging it will activate the output relay dry contact for simulates the engine start signal. When the built-in Booster Charger stops charging, it will break the relay output dry contact. Figure 3-6 Dry contact 2 Dry contact 3 Figure 3-7 Dry contact 3 The default setting of SOC...
  • Page 25 D+ H/L Connects to D+ signal at smart alternator. If ACC or D+ signal is in high level, please connect to D+ H. If D+ signal is in low level, please connect to D+ L. When both alternator and auxiliary battery are well connected, the built in booster charger will automatically judge if engine is turning on by detecting D+ signal or sensing alternator output voltage, to decide to charge the battery or not.

  • Page 26: Charge Only Function

     When the cell temperature is ≤2℃, the built-in lithium battery will report a low temperature fault alarm, and the user cannot directly charge the ECO. In the low temperature environment, when the internal charger is turned on, the ECO will automatically turn on the heating function. After the...

  • Page 27: Storage

    4 Storage Please follow the storage instructions in this manual to increase the service life of the product during storage. If you do not follow the storage instructions in this chapter for storage, the lithium battery may be over -discharged and damaged. If the inspection reveals that the product is damaged, please do not try to charge or use it.

  • Page 28: Transportation

    5 Transportation This product has a built-in lithium battery. Lithium battery transportation belongs to the ninth category of dangerous goods in the UN3841 standard. Before transporting the product, please check all local, national and international applicable laws and regulations.

  • Page 29: Compatible Products

    6.1 4G data stick Figure 6-1 4G data stick Available with 4G version, wireless data logger is on external communication device which can connect Zeliox ECO to cloud. It offers a convenient way to monitor the system performance remotely. 6.2 Solar Mate...

  • Page 30: C12 Load Module

    6.3 C12 Load Module Figure 6-3 C12 Load Module C12 Load Module is a power distribution module. Features as below:  Rated current is 80A.  Support 12-18 outputs, via four relays.  Dry contact input control to cut off loads at different voltage or SOC.

  • Page 31: Expanded Battery

    6.4 Expanded battery M12-100/P M12-200/H Figure 6-4 Expanded Battery M12-100/P and M12/200H The M12 series is a 12V lithium-ion battery module. The positive electrode of the battery is made of lithium iron phosphate (LiFePO4) material. It configures high-performance and high-reliability BMS to effectively manage the cells, including cell over-voltage, under-voltage, charge over-current, discharge over-current, over-temperature, low temperature, short circuit and other protection functions.

  • Page 32: Faq

     If there is no wiring error, please contact your dealer.  Check that the discharge current of the ECO does not exceed the rated discharge current, if it does, switch Discharge off part of the load. over current protection ...
  • Page 33  Please check that the discharge current protection and discharge time of the ECO do not exceed the specified requirements.  If these are normal, please contact your dealer.  Please check if the ambient temperature at the ECO installation location is below - 20°C.
  • Page 34  Please check that the ambient temperature at the location where the ECO is to be installed is below -40°C. If temperature so, the ECO is not suitable for operation protection at such a low ambient temperature and...

  • Page 35: Specification

    8 Specification Zeliox ECO Model ECO I ECO II ECO II+ ECO III Battery type LiFePO4 12.8V 100Ah 12.8V 200Ah Battery capacity (1.28kWh) (2.56kWh) Input voltage range 12-16 VDC Charge voltage 14.2V Booster charger Maximum charging current 30ADC 60ADC Terminal...
  • Page 36 0℃~35℃（Less than 1 year），<70% Cooling Forced fan IP rating IP20 Product dimensions in mm 450*391.5*225 520*391.5*303 Product weight 32.6kg 34.8kg 50.6 kg 53.8 kg Package dimensions in mm 525*485*305 595*485*385 Package weight 36kg 38.2kg 54.6 kg 57.8 kg Table 8-1 Specifications Zeliox ECO...
