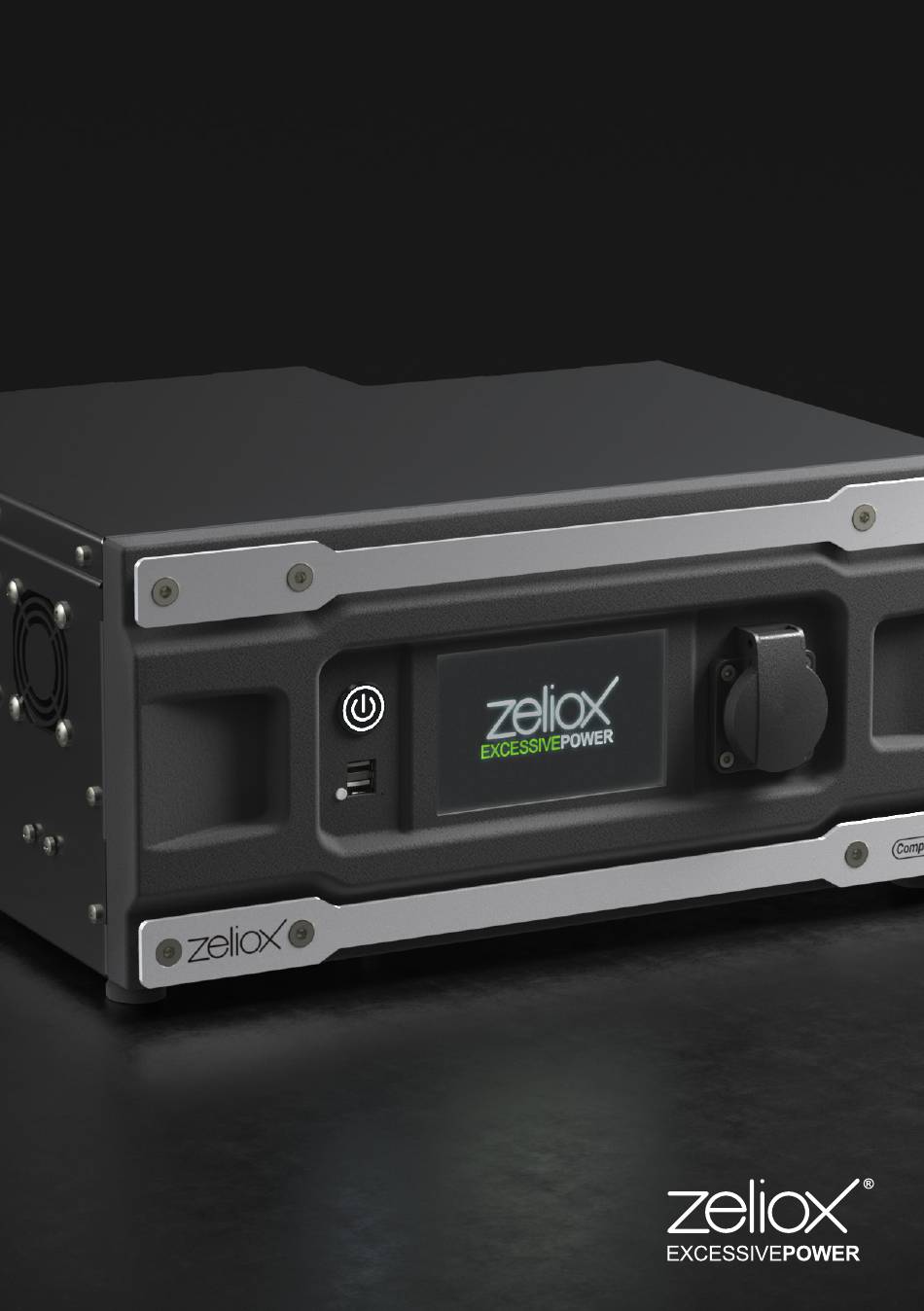

  • Page 1 Installing Guide Zeliox Compact ENGLISH...

  • Page 2: Table Of Contents

    Contents Stand Alone Aluca Bott Servicesystem Sortimo Different brands Information contained in this document may be changed without prior notice.

  • Page 3: Stand Alone

    1. Stand Alone Follow these steps for correct installation WARNING: • Do not place the Zeliox Compact upside down or on its back. 1. Screw the 4 legs in place at marked positions. 2. See User & Installation Manual page 25 for further instructions.

  • Page 4: Aluca

    2. Aluca Follow these steps for correct installation WARNING: • Do not place the Zeliox Compact upside down or on its back. 1. All cables should be prepared and routed according the local regulations. 2. Remove the drawer from the cabinet.
  • Page 5 4. Drill 4 holes size 7mm at the marked positions. 5. Place 4 claw nuts M6 at the marked positions. 6. Mount the adapter plate ZEL-MKS-024 at the bottom of the Zeliox Compact with 3 bolts.
  • Page 6 7. Place the Zeliox Compact with adapter into the drawer. 8. Mount the 4 bolts at the marked positions. 9. Place the drawer into the rails connecting the assembly to the cabinet. 10. See User & Installation Manual page 25 for further instructions.
  • Page 7 12. Gently close the drawer until it clicks in place. 13. The Zeliox Compact is ready for use.

  • Page 8: Bott

    3. Bott Follow these steps for correct installation WARNING: • Do not place the Zeliox Compact upside down or on its back. 1. All cables should be prepared and routed according the local regulations. 2. Remove the drawer from the cabinet.
  • Page 9 4. Place 4 claw nuts M6 at the marked positions. 5. Mount the adapter plate ZEL-MKS-020 at the bottom of the Zeliox Compact. 6. Mount the 4 bolts at the marked positions.
  • Page 10 8. See User & Installation Manual page 25 for further instructions. 9. Connect the cables to the Zeliox Compact. 10. Gently close the drawer until it clicks in place. 11. The Zeliox Compact is ready for use.

  • Page 11: Servicesystem

    4. Servicesystem Follow these steps for correct installation WARNING: • Do not place the Zeliox Compact upside down or on its back. 1. All cables should be prepared and routed according the local regulations. 2. Remove the drawer from the cabinet.
  • Page 12 4. Place 4 claw nuts M6 at the marked positions. 5. Mount the adapter plate ZEL-MKS-024 at the bottom of the Zeliox Compact with 3 bolts. 6. Mount the 4 bolts at the marked positions.
  • Page 13 8. See User & Installation Manual page 25 for further instructions. 9. Connect the cables to the Zeliox Compact. 10. Gently close the drawer until it clicks in place. 11. The Zeliox Compact is ready for use.

  • Page 14: Sortimo

    5. Sortimo Follow these steps for correct installation WARNING: • Do not place the Zeliox Compact upside down or on its back. 1. All cables should be prepared and routed according the local regulations. 2. Remove the drawer from the cabinet.
  • Page 15 4. Place 4 claw nuts M6 at the marked positions. 5. Mount the adapter plate ZEL-MKS-024 at the bottom of the Zeliox Compact with 3 bolts. 6. Mount the 4 bolts at the marked positions.
  • Page 16 8. See User & Installation Manual page 25 for further instructions. 9. Connect the cables to the Zeliox Compact. 10. Gently close the drawer until it clicks in place. 11. The Zeliox Compact is ready for use.

  • Page 17: Different Brands

    6. Different brands Follow these steps for correct installation WARNING: • Do not place the Zeliox Compact upside down or on its back. 1. All cables should be prepared and routed according the local regulations. 2. Use the measurements for placing the Zeliox Compact.
  • Page 18 Notes...
  • Page 19 Notes...
  • Page 20 Zeliox BV Spaarpot 13, 5667 KV, Geldrop The Netherlands www.zeliox.com...
