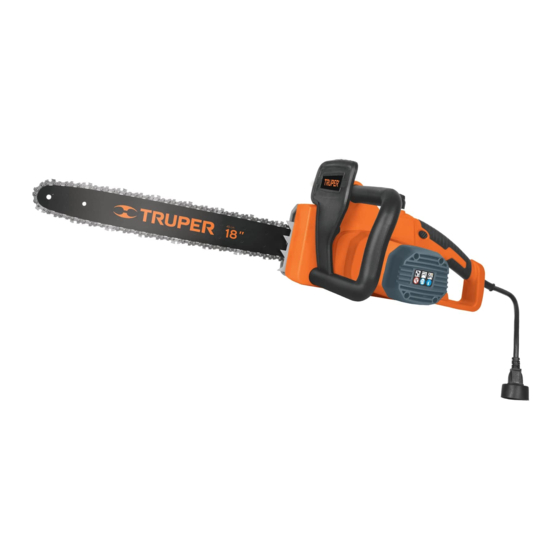

- Page 1 Manual Electric 2.2 Hp Chainsaw MOTE-18 Applies for: Code Model 16295 MOTE-18 Read the user’s manual thoroughly CAUTION before operating this tool.
-
Page 2: Table Of Contents
Contents CAUTION Technical Data Power requirements To gain the best performance of the tool, prolong the duty life, Safety warnings for electric tools make the Warranty valid if necessary, and to avoid hazards Safety warnings for using Chainsaws of fatal injuries please read and understand this Manual before Parts using the tool. -
Page 3: Technical Data
Technical Data MOTE-18 Code 16295 Description Electric Chainsaw Voltage Current 127 V 13 A Frequency Power 60 Hz 2.2 Hp Axis Speed 6 000 RPM Advance Speed 43.6 ft/s 18” Oil Tank 6.7 oz Chain Pitch Chain Gauge 3/8” 0.05”... -
Page 4: Safety Warnings For Electric Tools
Safety warnings for electric tools WARNING! Read carefully all safety warnings and instructions listed below. Failure to comply with any of these warnings may result in electric shock, fire and / or severe damage. Save all warnings and instructions for future references. -
Page 5: Safety Warnings For Using Chainsaws
Safety warnings for Using Chainsaws To Prevent Kickback General Kickback is the sudden and strong movement off the cut • Keep this in mind. Safety is a combination of common and towards the operator made by the running tool. It sense, alert mind and knowledge of the tool operation. - Page 6 Safety warnings for Using Chainsaws Before operating the Chainsaw DANGER • Never use the chainsaw when tired, sick or under the effects of drugs, alcohol o medication. • Wear clothes adequate for chainsaw operation: tight fitting clothes, thick slacks, safety non-skid boots, heavy-duty protective gloves, safety goggles or protective lenses with side protection compliant with the ANSI Z87.1 Standard, head and hearing protectors.
-
Page 7: Parts
Parts Oil Deposit Front Guard / Chain Brake Rear Handle Low Kickback Cut Bar Chain Cable Chain Chain Chain Cover Fastener Tightening Knob Cover Locking Knob Front Switch Handle Lock Cut Bar Scabbard Trigger Switch Motor Oil Level Rear Handle Cover Window Base... -
Page 8: Safety Devices
Safety Devices Chain Brake • The chain brake (A) function is to stop quickly the chain movement and protects the hand in case of kickback. (See page 5). It is designed taking in consideration the Changing Direction of the Left Hand predictable movement of kickback, which sends the cut to Activate the bar upwards and towards the operator, so when the brake... -
Page 9: Oil Supply
Oil Supply Oil Supply for Cut Bar and Chain • Use oil for bars, chains and their lubrication systems, specially designed to work in a wide range of temperatures without any dilution. Using SAE-20 oil is recommended. • Oil level should be checked every 20 minutes through the oil level window (E). -
Page 10: Bar And Chain Assembly
Bar and Chain Assembly WARNING • Never start the motor before having first assembled the cut bar, chain and chain cover. Otherwise, the operator would be exposed to severe personal injury. • Set the switch in the off position. • Pull back the chain brake to be sure it is in the operating position (see page 8). - Page 11 Bar and Chain Assembly • Lift the bar with the chain and set it into the saw. Pass the mounting knob (F) through the bar groove and the loose space between the bar and the chain around the sprocket wheel (G). Upon setting the bar in the knob, double check that the tension pin enters into the corresponding orifice in order to tighten the chain (H).
-
Page 12: Start Up
Start Up Connection • Use the cable holder (A) to prevent the chainsaw will get unplugged accidentally from the extension cable while in use. • Make a loop in the extension end and pass it through the orifice in the rear handle base. •... -
Page 13: Cutting Operation
Cutting Operation Cutting Correct Position Basic Cutting Procedures • Both feet should be evenly set on firm ground. Your If you lack of previous experience using chainsaws and to body weight well balanced. The left foot should be slightly get familiar with its use, it is recommended to practice forward from your right foot. -
Page 14: Felling And Bucking
Felling and Bucking Felling Restrictions. Do not attempt this EVER! • Do not cut down trees under heavy rain or while strong winds are blowing. Wait for suitable weather. • Do not cut down trees when people or animals are in the area. The safe distance standards for passersby are explained in “When Using the Chainsaw”... - Page 15 Felling and Bucking Anchor Root Cutting • Anchor roots are those roots that stick out too much from the ground. When they are too big may make the felling job too difficult. They must be removed before felling. • First, make a horizontal cut through the root, some Anchor Root centimeter up the ground.
-
Page 16: Cutting Branches And Pruning
Felling and Bucking Bucking the Top of the Trunk • Setting the lower side of the bar against the trunk, start Bucking the Bucking Below cutting the upper side of the trunk. Top of the Trunk the Trunk • Apply pressure downwards. CAUTION •... -
Page 17: Adjustments And Maintenance
Adjustments and Maintenance • Shut off the chainsaw before maintenance and service. Top Plate Top Plate Top Plate Top Plate Cutting Edge Cutting Edge • Use heavy-duty protective gloves. Depth Depth Gauge Gauge Chainsaw Chain Maintenance Rivet • To make smooth and fast cuts, the cutting chain needs maintenance periodically. - Page 18 Adjustments and Maintenance Chain Depth Gauge Cutting Link Depth 0,025” Depth Gauge Gauge • The chain has cleaning teeth (Depth Gauge) placed in front of each tooth. Their design avoids getting too deep into the wood getting pinched and causing kickback. •...
-
Page 19: Troubleshooting
Adjustments and Maintenance • Remember to disconnect the tool before cleaning or Carbon Replacement maintenance. • Check periodically the carbons. If worn have them • All the tool components are an important part of the insulating system and should only receive maintenance in replaced in a Authorized Service Center. -
Page 20: Notes
Notes ENGLISH... -
Page 21: Authorized Service Centers
Authorized Service Centers In the event of any problem contacting a Truper Authorized Service Center, please see our webpage www.truper.com to get an updated list, or call our toll-free numbers 800 690-6990 or 800 0187-8737 to get information about the nearest Service Center. -
Page 22: Warranty Policy
. Transportation costs resulting from compliance of this warranty will be covered by For questions or comments, call 800-690-6990. Made in China. Imported by Truper S.A. de C.V. Parque Industrial 1, Parque Industrial Jilotepec, Jilotepec, Edo. de Méx. C.P. 54257 Stamp of the business.
