Invision HDTV-M Instruction Manual

www.InvisionTechnology.co.uk

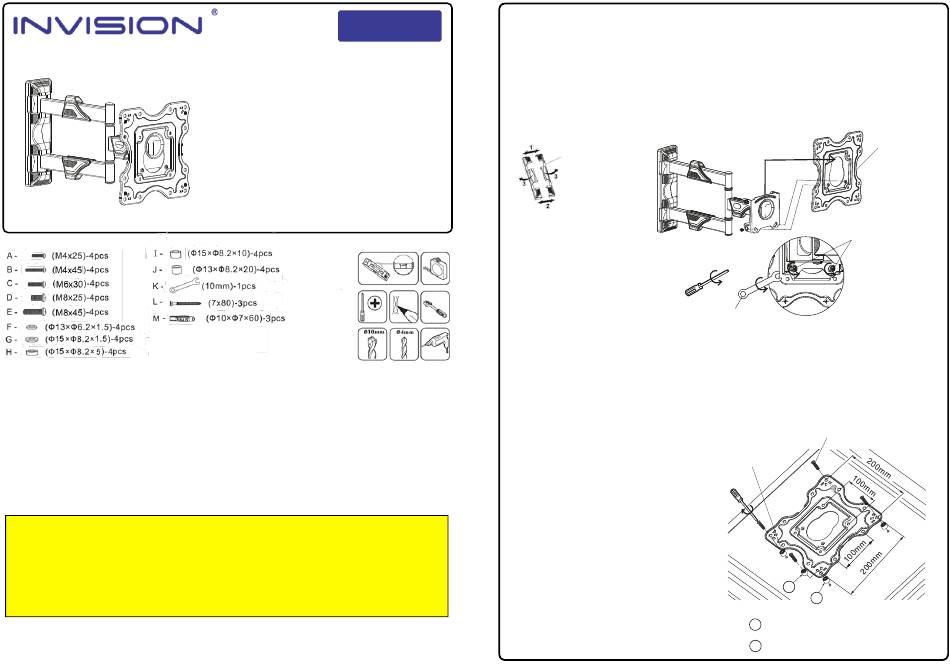

Parts List:
First things first: Check the box contains all the items in the parts list above.
Check VESA Compatibility: Please check the VESA measurements before drilling any holes (to check your TVs VESA,
measure distance between mounting holes on back of TV both horizontally and vertically).
Check the weight of your TV: You may need an extra person on hand to help!
You will need a few additional tools: A drill and 10mm masonry drill bit or 4mm wood drill bit, depending on the fixing surface, safety
glasses, a large Phillips screw driver, a 12mm spanner for the wall fixings (a 12mm socket set is even better) a pencil and a spirit
level.
Please wear safety glasses before using your drill – if you have any doubts installing this item please consult your retailer or an
experienced installer.
Now please read the instructions fully and plan how to mount your bracket! As with most single arm cantilevers, the TV
mounting centre line will be 105 mm (4¼") offset to the wall fixing centre line.
Severe personal injury and property damage can result from improper installation or assembly. Please read the following warning carefully before beginning.
• Product must be installed by a professional or competent installer.
• If you do not understand the instructions or have any concerns or questions please contact us or a competent installer.
• Do not install or assemble if the product or hardware is damaged or missing. If you require replacement parts, please contact us at Invision for assistance.
• This product fits most 24"-43" Plasma, LCD, LED, OLED screen, maximum weight of 27.2kg (59.9lb).
• This product has been designed for use on vertical walls constructed of wood studs (minimum 2" x 4"/ 51mm x 102mm) or masonry (solid concrete 2000 PSI density minimum).
• For safe installation, the wall you are mounting must support minimum 3 times the weight of the total load (the TV bracket, the TV and all accessories).
• Do not use this product for any other application than the original design purpose.
• This product contains moving parts, please use with caution.
• When installing, take care not to damage electrical wiring or power source.
• The manufacturer will bear no responsibility for mounting to the wall, or incidental or consequential damages arising there from.
• The manufacturer disclaims any liability for the modifications, improper installation or installation over the specified weight range.
• The manufacturer will not be liable for any damages arising from the use of, or inability to use the product.
Lets Get Started!
If you require assistance please contact us at: help@InvisionTechnology.co.uk
English
Invision HDTV-M
Single Arm TV Wall Mount
Instruction Manual
VESA Compliance 100x100mm - 200x200mm
Recommended Screen Sizes 24" - 43"
Integrated Cable Management
Load Capacity 27.2kg (59.9lbs)
To receive large format PDF instructions
please email help@InvisionTechnology.co.uk
Tools List:
(NOT to be used
with wall bolt 'L')
WARNING!
1

Step 1 Unboxing

1. Open the box, take out TV bracket then remove the wall fixing plate covers - see Diagram 'A'. Once
removed straighten out the TV bracket.
2. Remove the bottom 2x M6 securing bolts using spanner K (provided) which secures TV mounting
plate to the bracket arm (Do NOT remove the top 2x locking nuts that adjust tilt).
3. Remove the TV mounting plate by lifting it upwards using the keyhole slot (1) to take it off the wall
bracket circular safety mounting ring (2).
Diagram 'A'
Wall fixing
plate covers
TIP: Lay the bracket flat and gently pull the two
covers apart from the top and bottom first this
should help the other tabs release from their holders.

Step 2 Attaching TV to TV mounting plate

1. Lay TV face down on a flat surface to access the 4 fixing points (VESA) at the back of TV.
2. Position TV mounting plate onto back of the TV with flat side facing the TV and align to the 4 fixing
points. Use relevant bolts, washers and spacers to secure the TV mounting plate to your TV - see
Diagram 'B'.
The TV mounting plate only covers TVs with VESA sizes 100x100mm, 100x200mm, 200x100mm
and 200x200mm.
Diagram 'B'
NOTE:
A combination of spacers/washers can be used
when shorter fixing screws are required, clearance
for cable access or if the rear of the TV is not flat.
Use screws, washers and spacers A - J to secure
the mounting plate to your TV
v20221201
TV mounting plate
1
2
M6 securing bolts
Or
Spanner K
Screws A-E
Spacers and
washers F-J.
a
or
b
a
spacers can be fitted on top of the TV mounting plate.
or
b
underneath the TV mounting plate.
2
