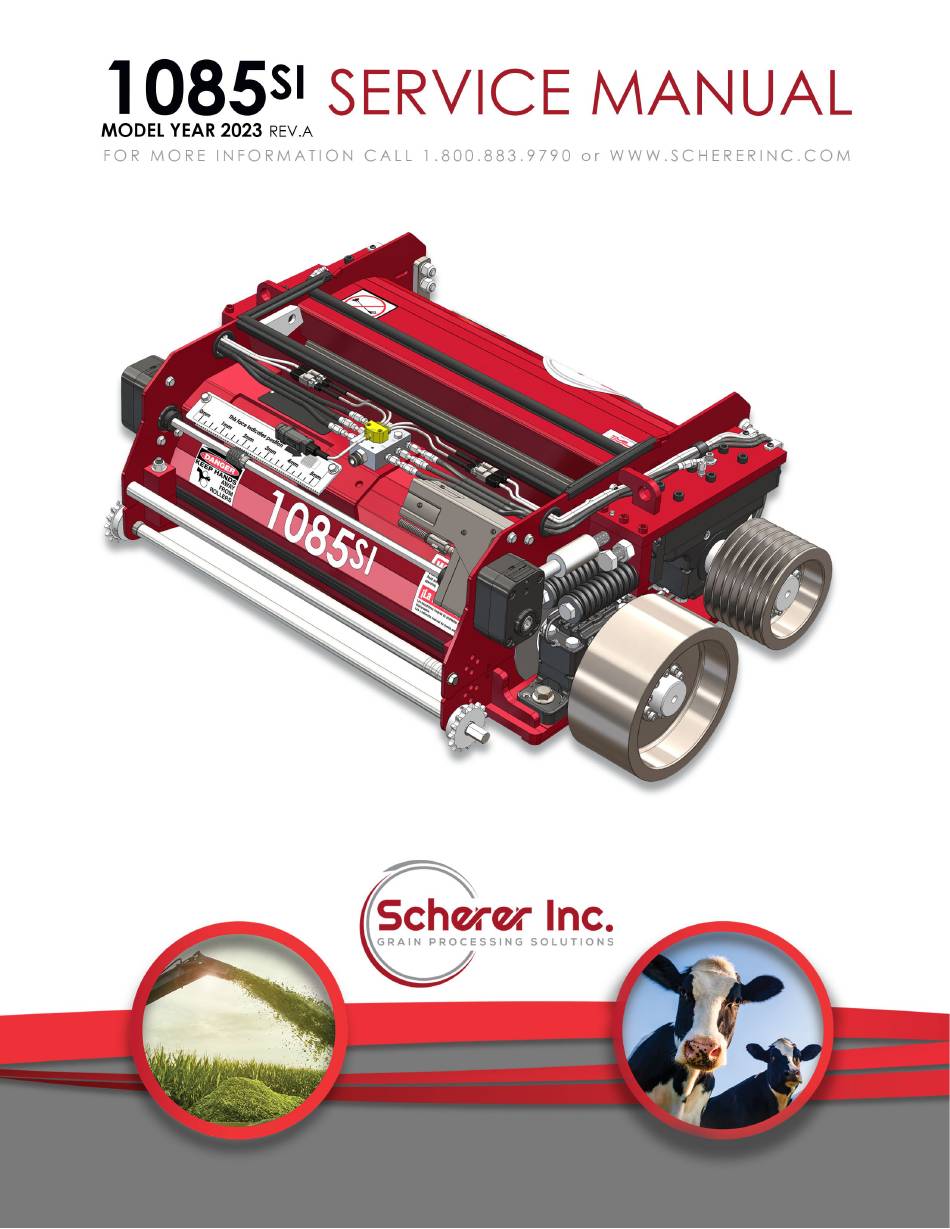

Scherer 1085SI Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1085SI and is the answer not in the manual?

Questions and answers

Related Manuals for Scherer 1085SI

Summary of Contents for Scherer 1085SI

  • Page 2: Table Of Contents

    Kernel Processor Installation Scherer Equipped Taper Lock Installation Accessory Parts Sentry 2.0 Installation Scherer Sentry 2.0 Parts Scherer Sentry 2.0 Grease Parts Air Dryer Installation 498 & Newer Belt Options 7 Groove Pulley Options Roll Gap Adjustment Instructions Maintenance Intervals...
  • Page 3 U.S. Patent No. 7,681,384 Others Patents Applied for Foreign Patents Applied for 46994 Mindy St. Tea, SD 57064 1-800-883-9790 (605) 368-2659 Fax: (605) 368-9737...

  • Page 4: Service New Product Warranty

    END OF SEASON maintenance as set out in the owner’s manual) is not covered and is the owner’s responsibility. USE OF OTHER THAN GENUINE SCHERER PARTS – Defects and damage caused by the use of parts that are not genuine Scherer parts are not covered.
  • Page 5 This warranty gives you specific legal rights and you may also have other rights which vary from state to state. Scherer Inc. does not authorize any person to create for it any other obligation or liability in connection with these Kernel Processors and Processor Rolls. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE APPLICABLE TO THESE TRANSMISSIONS IS LIMITED IN DURATION TO THE DURATION OF THIS WRITTEN WARRANTY.

  • Page 6: Safety

    Safety Warning: Read and understand all of the following safety messages. Be familiar with general operating and maintenance instructions. Be sure to lock out the power supply before performing any maintenance and adjustments. The person performing the maintenance should be the only one with the ignition key for the machine. General Safety Practices, Always observe safe operating practices around machinery.
  • Page 7 Eye Protection Wear approved safety glasses when working around all equipment. Moving machinery can throw objects unexpectedly. Head Protection Wear an approved hard hat while installing the processor into and out of the machine. Falling objects or low overhead can cause severe injury while installing or removing the processor from the machine.

  • Page 8: Stone Door Cyl. Retrofit 498 & Newer

    Stone Door Cylinder Retrofit 498 & Newer 1.) Using Kit HOD1405 : In the front of the KP service compartment, remove the clevis pin from the sharpening door cylinder. Take the supplied template HOD1404, and line it up with the outside of the left bracket. Align top of template making it flush with top of mounting ear.
  • Page 9 3.) When applicable, remove the foam seal around the cylinder and trim as shown to allow for the cylinder to travel in cutout with out binding. 4.) The slotted arc on HOD1408 is there to allow for adjustment to ensure the door has pressure on it in the closed position, and opens far enough to clear the sharpening stone carriage.
  • Page 10 HOD1405 - 498 & Newer...
  • Page 11 Stone Door Cylinder Retrofit 494 - 497 1.) Using Kit ASM10010 : In the front of the KP service compartment, remove the clevis pin from the sharpening door cylinder. Take the supplied template PRT10018, and line it up with the outside of the left bracket. Use two locking pliers or a c-clamp, to hold the tem- plate in place.
  • Page 12 ASM10010 - 492 To 497...

  • Page 13: 498 & Newer Schermist Installation

    498 & Newer Schermist Installation ® Image 2 Image 1 Locate 90° fitting under the left-hand hood (Image 1). Remove the 90° fitting, and re- place it with the “T” fitting (SPL10111). Take the 90° fitting that was removed and install it on the open end of the “T”.
  • Page 14 Image 1 Image 2 Remove the service panel, in the KP compartment. Drill a hole and mount the threaded bulkhead fitting (HPD1425) as shown (Image 1). Install the 90° fitting (HPD1420) on both sides of the bulkhead fitting. Take the supplied air-line and route it from the 1/4 turn valve to the 90°...

  • Page 15: Schermist® Installation

    494 - 497 Schermist Installation ® Connect supply hose to the CLAAS air hose as shown above, using provided “T” fitting (HPD1349). You will have to cut ¾” out of the CLAAS hose in order to install “T” fitting. Route supply hose up and between cab and chute using provided wire-ties in order to connect to the coalescing filter .
  • Page 16 Image 1 Image 2 Remove the service panel, in the KP compartment. Drill a hole and mount the threaded bulkhead fitting (HPD1425) as shown (Image 1). Install the 90° fitting (HPD1420) on both sides of the bulkhead fitting. Take the supplied air-line and route it from the 1/4 turn valve to the 90°...

  • Page 17: Schermist® Upgrade Kit

    Converting Standard Oiler to Metric Oiler ASM10378 ASM10378 is only needed when upgrading a KP to a newer model that utilizes metric fittings. When upgrading from a HDS, HP, HPM-60, or HO to a S series KP this upgrade kit is needed.

  • Page 18: Schermist® Operation

    WILL NOT FUNCTION PROPERLY IF IT IS FILLED ABOVE THE FULL MARK!! • Only use Scherer KP oil. It is available from dealer in 1 gallon, and 5 gallon quantities. • In very wet corn conditions, we recommend changing the oil in the bearings every two weeks and at the end of the season.

  • Page 19: Scherer Grease Kp Installation

    Scherer Grease KP Installation When installing a Scherer grease KP, the lubrication line attached to the KP (ASM10179—seen on page 67) can be hooked up directly to the forage harvesters greaser. The line on the KP connects to the factory grease KP...

  • Page 20: Kernel Processor Installation

    Grind bottom of the head of the socket head cap screw if necessary. Also be aware of the two different hole positions. This needs to line up the grass chute. The Scherer KP also has an adaptor on the KP frame to help with this.

  • Page 21: Taper Lock Installation

    INSTALLATION OF B-LOC® KEYLESS BUSHING B-LOC® Keyless Bushings provide a high capacity, zero-backlash OVER SHAFT KEYWAYS shaft/hub or coupling connection by means of a mechanical interference fit. Please follow these INSTALLATION AND REMOVAL INSTRUCTIONS carefully to ensure proper performance The Keyless Bushing should be positioned so that slits in Keyless of this B-LOC®...

  • Page 22: Sentry 2.0 Installation

    Sentry 2.0 Installation Image 1 Image 2 Under the right hand control arm in the cab, remove the cover for the electrical cabi- net (Image 1). Take the supplied “T” cord (PM21002) and place it into the electrical cabinet. Connect the short cord (PM21006) to one of the large connectors on the “T”. Connect the long cord (PM21007) to the other large connector on the “T”.
  • Page 23 Image 1 Image 2 Take the mounting clamp (PM1007) and use it to connect the display screen to the monitor (Image 1). Take the long cable (PM21007) and route it along the rail mount using zip ties (Image 2). Image 3 Image 4 Take the supplied power cord end (PM23030).
  • Page 24 Start by taking the multi-box and place it on the inside of the right hand exterior panel. Take the upper cab firewall panel off and drill a 3/4” hole in it. Take the short cord (PM21007) and route it from the multi-box through the hole in the firewall panel. Take the supplied grommet (PM21010) and cut and wrap it around the cable.
  • Page 25 Sentry 2.0 Operation 1) The Sentry is set up to have 2 levels of alarm: warning and shutdown. 2) Warnings will only provide an amber light on the left corner of the display and an alarm screen with a description of the alarm. Schermist®...
  • Page 26 Distribution box is located behind display and distribution box. cab in the processor work area. Check connections. Contact Scherer Inc. for further assistance. Display reads “0.00H” Display is set up as “1-up” display. Press “Menu”, scroll to highlight “GO TO 4-UP DISPLAY”, press Display reads in Degrees “F”...

  • Page 27: Scherer Sentry 2.0 Parts

    Scherer Sentry 2.0 - PM24001...

  • Page 28: Scherer Sentry 2.0 Grease Parts

    Scherer Sentry Grease 2.0 - PM24004...

  • Page 29: Air Dryer Installation 498 & Newer

    Air Dryer Installation 498 & Newer 1.) Remove highlighted hose at air tank and aluminum block. 2.) Cut highlighted zip ties, lift up wire harness and install air dryer as shown. Wire Harness 3.) Connect hoses following the schematic on the next page & connection point callouts. “B”...
  • Page 30 4.) Mount solenoid valve with mounting plate bracket supplied with install kit. “C” “D” Mntg Bracket 5.) Supply 12v power to solenoid from a keyed power source. White is 12V positive and Black is 12V negative (ground). Solenoid comes programmed to open for 3 seconds every 30 minutes.
  • Page 31 Air Dryer Schematic Elbow fitting with hole.
  • Page 32 Air Dryer Timer Programming 1.) Push mode button until off-on is showing. Hit “Enter” 2.) Hit "Enter" until 00.0X.00 "X" number is flashing. This is the OFF. Hit “Add” until “5” shows. Hit “Enter” until 00.00.00 shows. This is the OFF. 3.) Hit "Enter"...
  • Page 33 Air Dryer Parts List—ASM10001...

  • Page 34: Belt Options

    BELT OPTIONS Belt Current Scherer Part # Old Part # Drive 7 Groove SCHB10002 HOD1436-7 S Drive Standard 7 Groove HOD1435-7 Drive Information necessary to determine which KP Belt customer needs: 1) Machine Serial # & year 2) KP Serial # 3) Which drive system equipped with: a.

  • Page 35: Groove Pulley Options

    7 Groove Pulley Options ASM10011—50% Differential ASM10106—30% Differential...

  • Page 36: Roll Gap Adjustment Instructions

    Roll Gap Adjustment Once the processor is installed in the cutter and some product has been run through it, you may need to adjust the roll gap. To do this, you will use the provided tool attached to the gearbox on the drive side. As you turn the hex shaft with the provided tool watch the gear indicator.

  • Page 37: Maintenance Intervals

    If roll gap is wider at one end, there is also a possibility that the rolls just need to be adjusted. · If equipped with Scherer idle components, grease lower idle pulley on drive system, and tension pulley (2 pumps each) 4) End of Season (VERY IMPORTANT) ·...
  • Page 38 An inspection of the bearing rollers may also help determine if the bearing needs to be replaced. · Make sure all bearings get fresh Scherer KP oil after they have been inspected or changed. See section “End of Year Roll Maintenance”. ·...

  • Page 39: Roll Change Instructions

    Roll Change Instructions 1. Remove processor from the forage harvester. An air wand will also help keep things clean and free from debris. 2. Take a measurement from the frame to the pulley on the roll to be replaced so you know where to place the pulley on the new roll since the pulley alignment is critical.

  • Page 40: Processor Opening Instructions

    Processor Opening Process...

  • Page 41: End Of Year Roll Maintenance

    End of Year Roll Maintenance At the end of the season it is highly recommended that KP roll housings are • disassembled and inspected for debris and unusual wear. Located on the brass seals there are 6 felt seals (HPR1009). At the end of the season •...
  • Page 42 The ends of the felt can be trimmed with a utility knife so that the felt is flush with the edge of the housing. The housings can be reassembled and filled with 14.75 CC’s of Scherer KP oil. This is •...

  • Page 43: Roll Bearing Removal & Installation

    Roll Bearing Removal and Installation 1. To remove the roll bearing, the housing must be disassembled. Remove the 4 bolts on top of the housings. Tap on the feet of the lower housing with a soft mallet to separate the two halves. *NOTE*: Housings are machined as matched sets.
  • Page 44 2. Remove inner brass housing seal and aluminum spool seal. Clean and inspect. Replace if any components show improper wear. Make sure to install the brass housing seal dry. NO LUBRICANT 3. Using the bearing heater (A0021) heat the bearing to 230 degrees F (110 degrees C). Using proper PPE (Personal Protective Equipment) take the bearing and slide it onto the shaft until it hits the machined step.

  • Page 45: Schermist® Head Rebuild

    Schermist Head Rebuild ® Cleaning Instruction: 1. After the oil tank head assembly has been removed from the oil tank reservoir, disassemble the parts as shown. 2. Clean all parts in a safe, clean solvent. Air dry after cleaning. CRITICAL ASSEMBLY FEATURE Reassemble the parts as shown above.

  • Page 46: Important Torque Specifications

    Important Torque Specifications...

  • Page 47: Top Frame Parts

    Top Frame...

  • Page 48: Top Frame Parts List

    Top Frame Parts List...

  • Page 49: Top Frame Adjustment Parts

    Top Frame Adjustment Parts...

  • Page 50: 1085Si Adjustment Options

    ASM10170 - Auto Adjustment ASM10288 - Manual Adjustment...

  • Page 51: Bottom Frame Parts

    Bottom Frame...

  • Page 52: Bottom Frame Parts List

    Bottom Frame Parts List...

  • Page 53: Slide Parts

    ASM10177 - Drive Slide ASM10178 - Idle Slide...

  • Page 54: Temperature Wiring Parts

    Temperature Wiring Harness PM24002...

  • Page 55: Air Lubrication System Parts

    Air Lubrication Lines ASM10198...

  • Page 56: Grease & Oil Lubrication Kit

    Grease/Oil Lubrication Lines ASM10197...

  • Page 57: Complete Roll Options

    Complete Roll Options TC = TWIN CUT Part Number Description ASM10063-120-C 120 TC ROLL ASSY COMPLETE ASM10064-160-C 160 TC ROLL ASSY COMPLETE ASM10065-180-C 180 TC ROLL ASSY COMPLETE ASM10184-120-C 120 TC GREASE ROLL ASSY COMPLETE ASM10185-160-C 160 TC GREASE ROLL ASSY COMPLETE ASM10186-180-C 180 TC GREASE ROLL ASSY COMPLETE SAW = SAW TOOTH...

  • Page 58: No Housing Roll Options

    No Housing Roll Options TC = TWIN CUT Part Number Description ASM10063-120-C-NH 120 TC ROLL ASSY NO HSNGS ASM10064-160-C-NH 160 TC ROLL ASSY NO HSNGS ASM10065-180-C-NH 180 TC ROLL ASSY NO HSNGS SAW = SAW TOOTH Part Number Description ASM10066-120-C-NH 120 SAW ROLL ASSY NO HSNGS ASM10067-160-C-NH 160 SAW ROLL ASSY NO HSNGS...

  • Page 59: Roll Parts

    Roll Assembly Parts List *Taper lock comes with bolts. Item 1 can be purchased separately as a replacement part. Saw Tooth Roll Twin Cut Roll...

  • Page 60: Roll Housing Parts

    Housing Hardware JDRM2018 - Drive side JDRM2016 - Idle side...

  • Page 61: Bulb Seal Replacement Kit

    Bulb Seal Replacement Kit— HPMTB1075...

  • Page 62: Cheek Plate Replacement Kit

    Cheek Plate Replacement Kit—ASM10245...

  • Page 63: Schermist® Parts List

    Schermist Parts List - Air Lubrication ® ASM10016...
  • Page 64 FILTER ASSEMBLY HPD1427...
  • Page 65 REPLACEMENT FILTER HPD1411...
  • Page 66 OM5021...
  • Page 67 ASM10086...

  • Page 68: Schermist Head Parts List

    Schermist Head Parts List ® ASM10061...

  • Page 69: Grease/Manual Lubrication Parts

    ASM10179 - Grease Lubrication Kit ASM10180 - Manual Lubrication Kit...

  • Page 70: Manual Lubrication Parts

    Manual Lubrication Parts List ASM10006 ASM10108...

  • Page 71: Latch Block Parts

    ASM10049 – Latch Block...

  • Page 72: Decal Layout

    Decal Layout...

  • Page 73: Scherer Equipped

    Scherer Equipped Decal...

  • Page 74: Accessory Parts

    Accessory Parts A0006 - 1 Gallon KP Oil A0003 - KP Lifting Chain A006.5 - 5 Gallon KP Oil A0011 - Laser Alignment Tool A0022 - 60mm Bearing Puller A0008 - Laser Temp. Gun A0021 - Bearing Heater...
