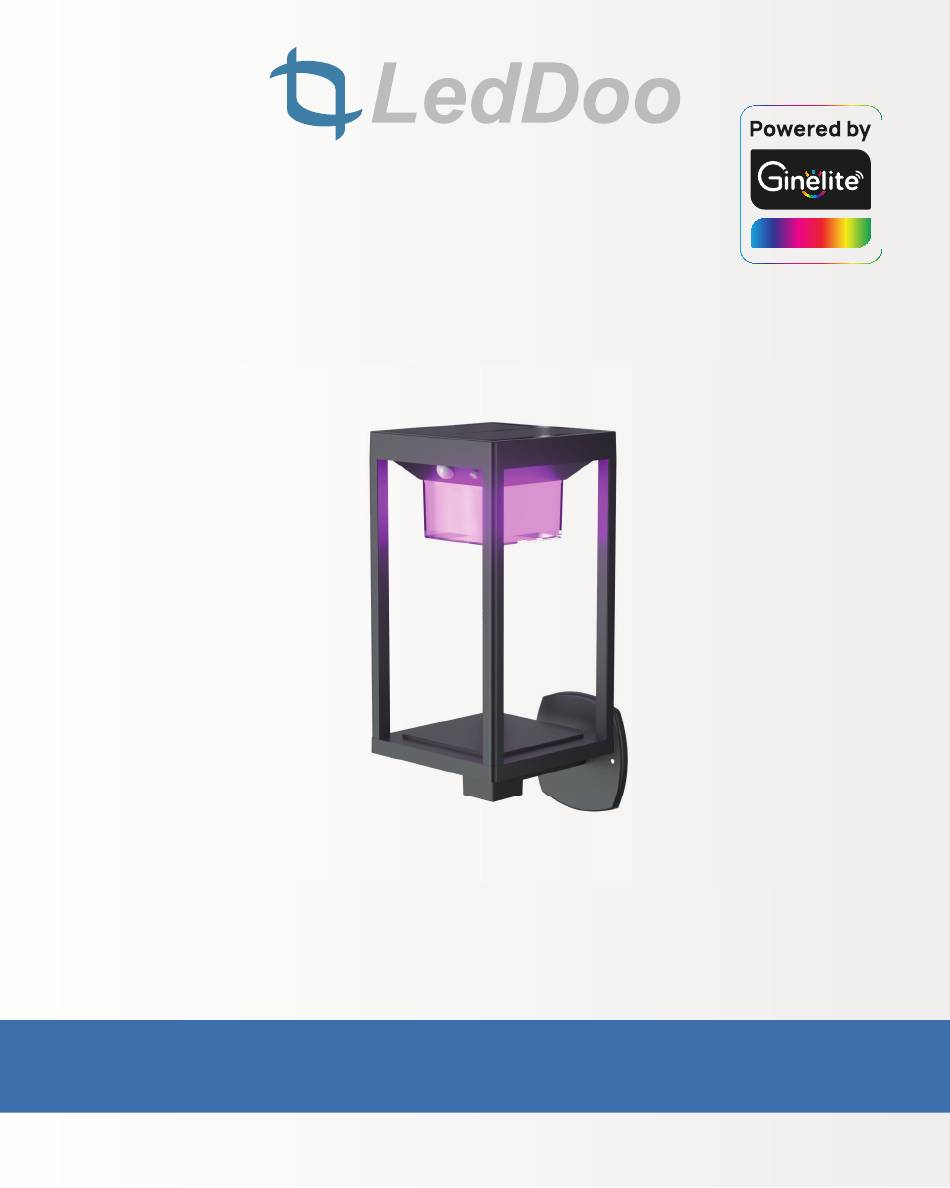

- Page 1 QUADRA WL-1 USER MANUAL...
- Page 2 QUADRA WL-1 Download Smart Garden App Smart Garden App allows you to control and customize your controls for Smart Solar L via your smart device. Search for the latest version on Apple App store or Google Play...
- Page 3 QUADRA WL-1 CONTENTS IMPORTANT SAFETY INSTRUCTIONS GETTING TO KNOW SMART SOLAR LAMP USING YOUR SMART SOLAR LAMP TROUBLESHOOTING...
- Page 4 QUADRA WL-1 IMPORTANT SAFETY INSTRUCTIONS Read All Instructions Before Use And Save For Future Reference This is an electric lamp-not a toy! To avoid risk of fire, burns,personal injury and electric shock,it should not be played with or placed where small children can reach it.
- Page 5 QUADRA WL-1 USER MANUAL Getting to Know Smart Solar Lamp In The Box Smart Solar Lamp x 1 Smart Solar Lamp x 1 Short Screw x 2 Wall Plug x 2 Instruction Manual x1...
- Page 6 QUADRA WL-1 USER MANUAL Specifications Model Quadra WL-1 Power Supply 1 x 3.7V 2200mAh Li-Ion Battery Power Max 2.5W Input Power 5V 1A Solar Panel 6V Monocrystalline Body Material Aluminum die casting IP Grade IP44 Supported OS Android 5.0 or iOS 9.0 and above 4.0 and above...
- Page 7 QUADRA WL-1 Before first use min . 8h...
- Page 8 QUADRA WL-1 How to Charge USB Type-C Input, 5V 1A Method Method 1 ≥ Lift the silicone seal ring Put Lamp in Sunlight for Plug-in USB Type C Charge Cable and connect to the main power via an adaptor Remove the USB Type C charging Cable when Full Charged...
- Page 9 QUADRA WL-1 Using Your Smart Solar Lamp Connecting with Smart Device 1. Download “Smart Garden” from Google Play 2. Make sure your smart device’s bluetooth, cellular or Apple App Store and install. Register as and location have turned on before pairing...
- Page 10 QUADRA WL-1 Controlling with APP Always make sure your smart device’s bluetooth have turned on to control the lamp About Information about the device or others Static Color Settings Customize the color or brightness Dynamic Scene Settings Select a preset Scene(6 Scene available),...
- Page 11 QUADRA WL-1 Using Your Smart Lamp Wall Controlling without Smart Device ON OFF 3sec The lamp can also been controlled without Smart device: Press the power button once to switch mode between: 1. Mode A: Lamp breathe twice, then turn into Sensor* mode 2.
- Page 12 QUADRA WL-1 Switch to a new device/Reset the lamp 3sec 1. Hold power button for 3 seconds, the lamp 2. Make sure your new device’s bluetooth, cellular and location have turned on and automatically turn to pairing mode 3. Open App on new device, follow the on- 4.
- Page 13 QUADRA WL-1 Using Your Smart Wall Lamp Create Group with other Lamps 1. Make sure all lamps have connected to your 2. Enter any lamp’s control panel, touch the ‘Pencil’ device and controlable before create group icon on right top side of screen 3.
- Page 14 QUADRA WL-1 Troubleshooting Reason Reason Problem Make sure Bluetooth, Cellular Cannot find Smart Lamp and Location have turned on on App when adding lamp and Smart Garden App is authorized to use above function. Connecting Failure When lamp is connected and...
- Page 15 QUADRA WL-1 Instructions: This unit contains rechargeable batteries. Switch the ON/OFF switch to “ON”. The unit is ready to be used now. Place the solar panel in a way that it will collect as much daylight as possible (not right under a tree, in the shade). When it starts to get dark, a light/dark sensor will switch the unit on automatically.
- Page 16 QUADRA WL-1 IMPORTER: B&K LUMITEC 2 rue Alfred Kastler Zone Industrielle 67850 Herrlisheim - France OFFICE FRANCE +33 (0) 3.88.96.80.90 info@bklumitec.com OFFICE EXPORT +49 (0) 7248 94790 30 export@bklumitec.com...
