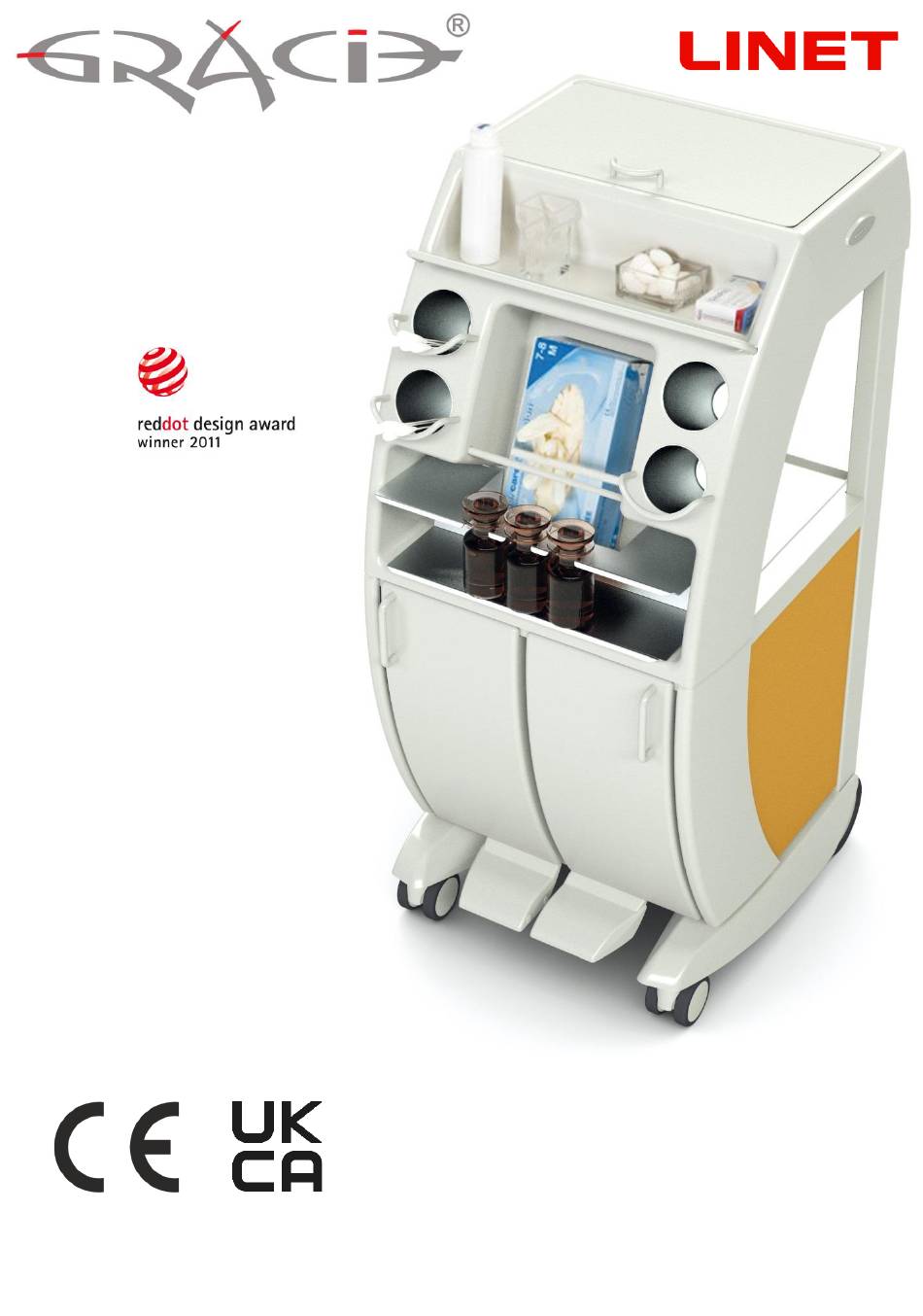

- Page 1 Instrument trolley GRACIE UN-PACKING MANUAL INSTRUCTION MANUAL D9U01IT0-0101 Version: 00 Punlication Date: 2023-04...
- Page 2 Česká republika Tel.: +420 312 576 111 Fax: +420 312 522 668 E-mail: info@linet.cz http://www.linet.com Service department: service@linetgroup.com Authorized Representative in Great Britain: LINET UK Ltd 11 Brunel Way Segensworth East Fareham Hampshire PO15 5TX United Kingdom Authorized Representative in Switzerland:...
- Page 3 Instrument trolley GRACIE Author: L I N E T spol. s r.o. Related links: www.linet.com D9U001IT0-0101 Version: 00 Publication Date: 2023-04 Copyright © L I N E T spol. s r.o., 2023 Translation © L I N E T spol. s r.o., 2023...
-
Page 4: Table Of Contents
Content Introduction ...................... 5 1 Un-packing manual ..................8 2 Basic versions overview ................8 3 General instructions ................... 10 3.1 General safety ..................11 3.2 Related standards ................... 12 3.3 Electrical safety and EMC: ..............12 4 Usage ......................13 4.1 Adjusting the instrument trolley ............... -
Page 5: Introduction
Introduction Please carefully read the whole operating instructions created so that you become acquainted with proper usage and relevant parameters of the instrument trolley of a doctor – gynaecologist (hereinafter only „instrument trolley“) prototype. Please behave always according to the instructions mentioned in this manual and use the device solely in accordance with the instructions. - Page 6 Pictogram Meaning WARNING WARNING: Dangerous electric voltage This symbol introduces any information, that may help you to avoid operative problems Production number Reference Number (Product type depending on configuration) EAC marking Marking of intermittent operation, i.e. if the product has been continuously operated for time period “x”, then it must rest idle for time period “y”.
- Page 7 Packaging material: “Keep dry” Packaging material: “Fragile!“ Packaging material: “This side up” Temperature limitation Transportation marking: „Relative air humidity“. Transportation marking: “Air pressure”. Marking according to the directive EC 2002/96/EC (Directive about the disposal of old electric and electronic appliances). Symbol for: “Do not dispose of the product into communal waste.
-
Page 8: Un-Packing Manual
1 Un-packing manual Remove Instrument trolley from the box. Then dispose of the carton in compliance with your local regulations concerning waste disposal. From container for used speculums remove the electric cable (only in GKB-167 version). There you can find also a box with flacons (accessories GKB-067.51) (Fig. -
Page 9: Basic Versions Overview
2 Basic versions overview Instrument trolley with heating Instrument trolley without heating (GKB-167.X) (GKB-169.X) Container with warming of gynaecological Container without warming of speculums (1piece) metal gynaecological speculums (1piece) Waste bins (2pieces) Waste bins (2pieces) Container for used speculums Container for used speculums (1piece) (1piece) Stainless steel jars (4 pieces) Stainless steel jars (4 pieces) - Page 10 Container for speculums with lid according to type of the trolley – with heating GKB-167 Heating control - without heating GKB-169 (only in GKB-167 version) Shelf for placing instruments Support for jars Handle for guiding the trolley Stainless steel jars for material 4 pieces Integrated double stainless steel Wide-neck flask with stopper, 100 ml, brown (accessories GKB-...
-
Page 11: General Instructions
3 General instructions Instrument trolley can be operated only on places that fulfil the conditions of valid standards for electric mains on places for medical purposes. 3.1 General safety • Be very particular of proper fastening the accessories (tightening the handles etc.). -
Page 12: Related Standards
3.2 Related standards This product complies with the relevant harmonization regulations of the European Union. Since the device is powered from the mains, it may cause interference with sensitive equipment due to generation of electromagnetic field. To prevent the occurrence of these problems the trolley must be used in compliance with this manual. -
Page 13: Usage
4 Usage The essential function is an additional equipment of a gynaecological examination room. The instrument trolley integrates instrument trolley, waste bins, mirror utensil and utensil for used speculums. 4.1 Adjusting the instrument trolley The instrument trolley is intended primarily for travelling within the consulting room. - Page 14 The reflective foil makes a standard part of the cover from the inside and it enables a doctor being in a sitting position to have a more accurate view over the prepared gynaecological speculums and other instruments in the container. The upper container has three hinges facilitating a smooth adjustment of the cover into any fixed position needed.
-
Page 15: Warming-Up Controller
4.2.2 Warming-up controller Swiching on / off the heating Temperature Temperature increase reduction Error messages Problem Action by qualified service description Probable cause personnel Defective or disconnected Flashing 4LED Connect or replace electric blanket Heating temperature of the mat is only for guidance. The temperature can be influenced by ambient conditions, mode of use and quantity of installed tools. -
Page 16: Waste Bins
4.2.3 Waste bins Waste bins are not designed for liquids. For this purpose, you can use rear utensil Can be opened manually catching by upper handrail of the bin, or by foot depressing the pedal for opening the bin. Volume of the left bin, from doctor's view, is 18l and volume of the right bin, from doctor's view, is 13l. -
Page 17: Back Container For Used Speculums
In the area between the jars there is a space for situating for instance a box with gloves. The integrated rack can be used as a flacons holder (GKB-067.51). The upper rack is instrumental to putting of instruments and materials. Container for pincers / scissors Container for glasses... - Page 18 Removal of the whole container To open the rear door of the tooling table, push the black button in the direction of the arrow. Hold the container by its grip holes and pull it out of the rear part of the tooling table, in the direction of the arrow (towards yourself).
-
Page 19: Jam Spots
Restoration of the whole container Hold the container by its grip holes and then push it into the rear part of the tooling container, in the direction of the arrow (away from yourself). If you hold it anywhere else, you may pinch your hands and the disinfection solution may spill out of the container. -
Page 20: Mandatory Selection Of Accessories
5 Mandatory selection of accessories 5.1 GKB-067.12.03 Plastic slippage 5.2 GKB-067.46 Metal slippage 20/29 D9U001IT0-0101... -
Page 21: Optional Accessories
6 Optional accessories 6.1 GKB-067.48 Wire basket, stainless steel 6.2 GKB-067.51 Wide-neck flask with stopper 100 ml, brown 6.3 GKB-067.44 Stainless container for speculums It serves for storing sterile metal speculums in the container for gynaecological speculums. The container is warmed up on a switched on heating blanket and keeps the speculums for a patient in an optimum examination temperature. -
Page 22: Instrument Shelf (Gkb-067.52 Left/ Gkb-067.53 Right)
6.4 Instrument shelf (GKB-067.52 Left/ GKB-067.53 Right) Serves as a shelf for examination instruments, e.g. instruments for hysteroscopy, for the preparation of vaginal speculums, intrauterine device, etc. The instrument shelf is safely protected against accidental releasing from the inactive position. Instrument shelf itself can be ordered under GKB-067.52.07. -
Page 23: Maintenance
7 Maintenance The manufacturer recommends a regular annual revision of the product. 7.1 Basic technical data Width 520 mm Depth 600 mm Height 1125 mm Weight 47 kg Volume of front bin – right 13 l Volume of front bin – left 18 l Volume of the rear basket 18 l... -
Page 24: Identification Plate
7.2 Production label with UDI The serial label contains information about Address of Manufacturer, Manufacturing Date (Year-Month-Day), Product Reference Number, Product Serial Number, Global Trade Item Number (GTIN), Unique Device Identification (UDI), symbols, weight specifications and electrical specifications. Please address any potential queries to the authorized representative or directly to the producer L I N E T spol. -
Page 25: Cleaning And Disinfection
7.3 Cleaning and disinfection CAUTION! Risk of injury due to accidental trolley movement! WARNING! Risk of damage to property due to incorrect cleaning / disinfection! • Do not use washing machines. • Do not use pressure or steam cleaners. • Follow the instructions and the dosage recommended by the manufacturer. -
Page 26: Transport, Operation And Storage Conditions
Recommended disinfection (disinfectants for wiping) RTU- Ready-to-use non-diluted products – spray or foam Active substance How to use Example of disinfectant Amine, Alcohol up to Spray and wipe Incidin foam Hydrogen Peroxide Spray and wipe Incidin OxyFoam S Disinfection wipes Wipe Sani cloth active Hydrogen Peroxide... -
Page 27: Service And Repairs
Česká republika Tel.: +420 312 576 111 Fax: +420 312 522 668 E-mail: info@linet.cz http://www.linet.com Service department: service@linetgroup.com When repairs are undertaken, exclusively use L I N E T spol. s r.o.. original parts and take advantage of the skilled service technicians with authorization to repair this product type. -
Page 28: Enviroment Protection
For disposal of packaging materials after installation of products contact your sales representative or manufacturer´s customer service about the possibility of a free take-back of packaging through an authorized company (more details on www.linet.cz). 8.1.Disposal 8.1.1 Within Europe To dispose of the equipment: •... -
Page 29: Outside Europe
8.1.2 Outside Europe • Dispose of the product or its components in accordance with local laws and regulations! • Hire an approved waste disposal company for disposal! D9U001IT0-0101 29/29...
