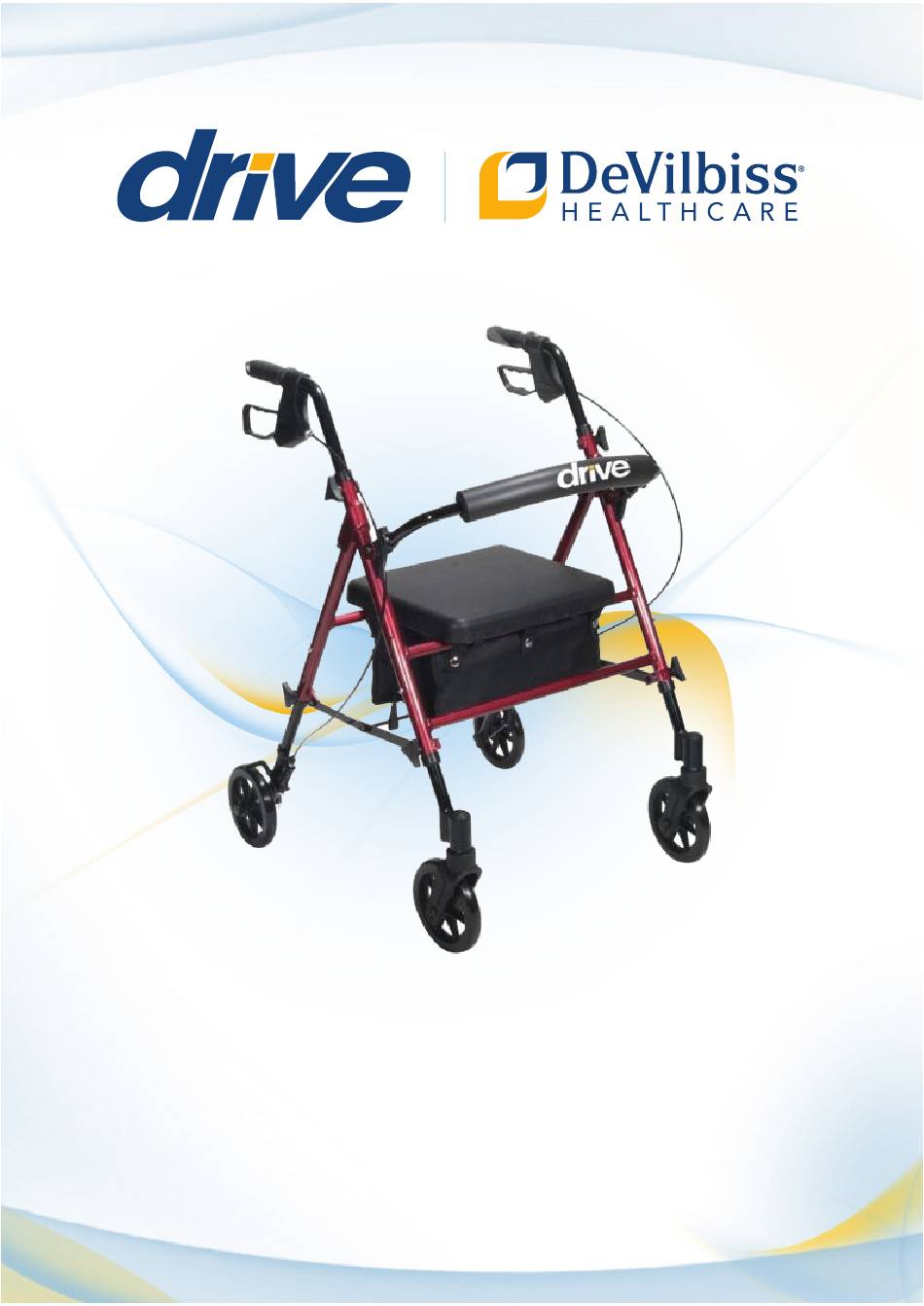

- Page 1 Height Adjustable Rollator Instruction manual...
-
Page 2: Parts Description
If in doubt, contact Drive DeVilbiss Healthcare Ltd. (Contact details are on the back cover.) Drive DeVilbiss Healthcare Ltd is an ISO 9001 certified company. For more details about our products please see your local dealer. - Page 3 Product Description symbols Intended purpose – A walking device manipulated by both arms to assist a person to maintain stability and balance whilst walking. Environment of use – indoor and outdoor use. Intended users – Any individual who has di culty in walking and / or has reduced mobility.
-
Page 4: Personal Safety
Personal Safety Before using the rollator, read the safety notices below; • Only use the rollator as a walking aid, to assist with mobility. Do not use as a transportation device. • Ensure that the latest health and safety practice is used for carrying and lifting items. - Page 5 Assembly Remove all contents from carton. Check you have all of the parts and attachments for this product. Open the frame and place up-side-down on the floor. Attach the front legs, with the castors on, to the front of the rollator by pushing in the Height Adjustment Button and inserting the leg into the receptacle, to the required height.
-
Page 6: Folding And Storage
Assembly Attach the padded back rest by pressing in the black thumb buttons and sliding the frame into the plastic back rest Fitting the receivers. back rest Ensure the ‘pins’ are fully located in the holes (see Fitting the back rest). Button To remove the backrest, push both ‘buttons’... -
Page 7: Brake Operation
Brake Operation Brakes engaged To operate the brakes, squeeze the brake levers up and hold in position (as shown by the green arrow). Release the levers to release the brakes. Brakes To lock the brakes, push down on the locked brake levers until it locks and stays down in position (as shown by the green arrow). -
Page 8: Adjustments For Comfort
Adjustments for Comfort Handle height To adjust the height of the rollator handles, unscrew and remove the Height Adjustment Knobs at either side of the rollator, turning anti-clockwise. Adjusting Adjust the height of the rollator Unscrew handle height handles to suit the user, re-insert the knobs and then tighten by turning the knobs clockwise to secure (as shown in Adjusting... -
Page 9: Care And Maintenance
Spare parts are also available for maintaining your rollator. To order these parts, contact your provider. Visit www.drivedevilbiss.co.uk to find your local stockist. Only use parts approved by Drive DeVilbiss Healthcare Ltd. Cleaning Ensure the rollator is kept clean on a regular basis. -
Page 10: Specification
Specification R8RDHA R8BLHA Model (Red) (Blue) Unfolded length 68-79 cm / 27”-31” Unfolded width 62 cm / 24.5” Unfolded height 79-99 cm / 31”-39” Folded length 95-119 cm / 37.5-47” Folded width 62 cm / 24.5” Folded height 31 cm / 12” Seat height 49-59 cm / 19”-23”... -
Page 11: Warranty
This warranty is issued free of charge by the manufacturer to the original retail purchaser of the device. This does not a ect your statutory rights. Drive DeVilbiss Healthcare Ltd. reserves the right to alter without notice any weights, measurements, or other technical data shown in this manual. All figures, measurements and capacities shown in this manual are approximate and do not constitute specifications. - Page 12 For the latest version of this document, contact Drive DeVilbiss Healthcare Ltd using the details below, or check our website. Any serious incident that has occurred in relation to the device should be reported to the manufacturer and the competent authority of your Member State.
