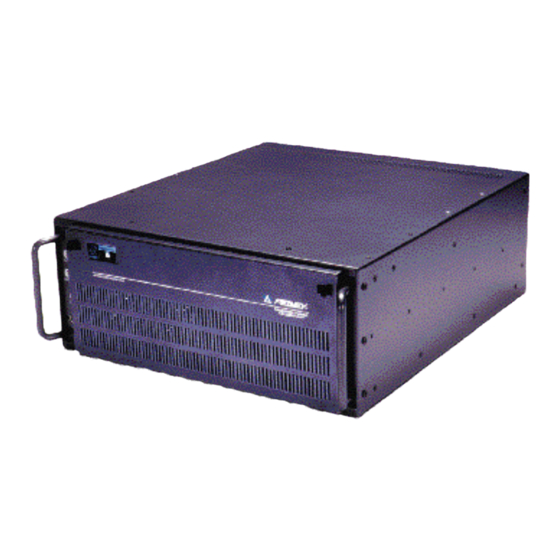

Peavey Mediamatrix MM-740 Mainframe Specifications

Peavey Mediamatrix MM-740 Mainframe Specifications

Digital processing unit

Advertisement

Quick Links

MediaMatrix
MM
-740
Mainframe
SPECIFICATIONS
SYSTEM CONTROLLER CARD:
Processor:
80486 DX4 100 MHz
(equivalent or greater)
Cache:
256K
Memory:
16 MB RAM
Drives:
3.5" FDD
1.2 GB HDD
SYSTEM CONTROLS:
Keyboard Lock
Reset, Power Switches
HDD and Power LEDs
Video:
1024 x 768 256-Color Video
with 70Hz Refresh Rate
DIGITAL AUDIO PROCESSING
CARD:
Processor:
®
Four (4) Motorola
56002 DSPs
(each card)
Digital Audio Bus:
256 Digital Audio Channels
S P E C I F I C A T I O N S
®
CARD I/O: (Via MM™-8830,
MM™-8840 or MM™-8848)
32 Inputs
32 Outputs
FILTERED AIR SYSTEM:
Air movement is 168 CFM
(Cubic Feet Per Minute)
Fan Size: 4.69" x 4.69" x 1"
BACKPLANE:
14 slot ISA passive (10 available for
expansion) Each DPU card takes two
ISA slots.
PHYSICAL
CHARACTERISTICS:
Enclosure Dimensions:
Height:
6.7 inches
Width:
17 inches
Length: 18.5 inches
Front Panel:
Height:
7 inches
Width:
19 inches
Weight:
56 lbs.
POWER SUPPLY:
300 Watt, Four Output
Maximum Current
Complies with UL/CSA/VDE
Input Voltage:
110-220 V AC
Input Frequency:
50-60 Hz
OPERATING SYSTEM:
DOS, Windows™ for System Controller
Card
MWare™ for Digital Audio Processing
Card (In Windows™ Environment)
AUDIO DEVICES:
Automatic Mixers from 2-32 channels
MM-8800 Series Control
Externally controllable levels, switches,
and routers
Crossovers: 2-way, 3-way, and 4-way
slopes from 6 to 48 dB per octave in
6 dB steps
Delay Lines of various delay lengths
and number of taps
Distribution Amplifiers from 2 to 16
outputs
Automatic Gain Control
Compressor/Limiter
Ducker
Expander
Noise Gate
1/3 octave graphic equalizer
2/3 octave graphic equalizer
1 octave graphic equalizer
Parametric Equalizers from 1 to 32
band
High Pass Filter
Low Pass Filter
All Pass Filter
High Shelf Filter
Low Shelf Filter
Tone Control
Inputs
Level
Level with Trim
Overload Indicator
Signal Present Indicator
Peak Meter
ARCHITECTURAL ACOUSTICS®
®
