Philips SBM110 - Speaker Manual

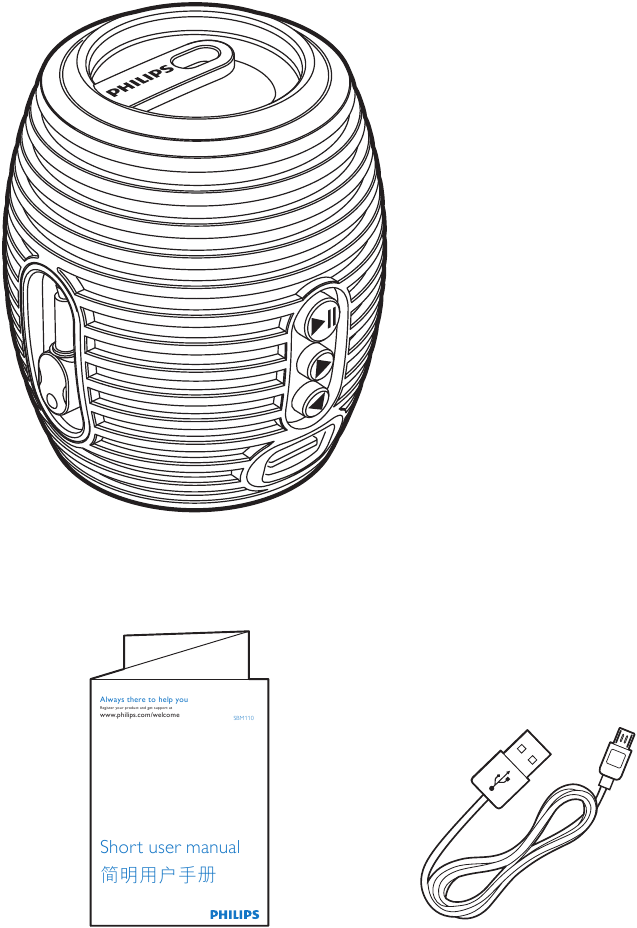

What's in the box

Important

• Read these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
• Only use attachments/accessories specified by the manufacturer.
• Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
• The battery shall not be exposed to excessive heat such as sunshine, fire or the like.
• Apparatus shall not be exposed to dripping or splashing.
• Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles).

• Never remove the casing of this apparatus.
• Never place this apparatus on other electrical equipment.

Notice

Any changes or modifications made to this device that are not expressly approved by Philips Consumer Lifestyle may void the user's authority to operate the equipment.

Disposal of your old product and batteries

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.
Never dispose of your product with other household waste. Please inform yourself about the local rules on the separate collection of electrical and electronic products and batteries. The correct disposal of these products helps prevent potentially negative consequences on the environment and human health.
Your product contains batteries, which cannot be disposed of with normal household waste.
Please inform yourself about the local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health.
Please visit www.recycle.philips.com for additional information on a recycling center in your area.

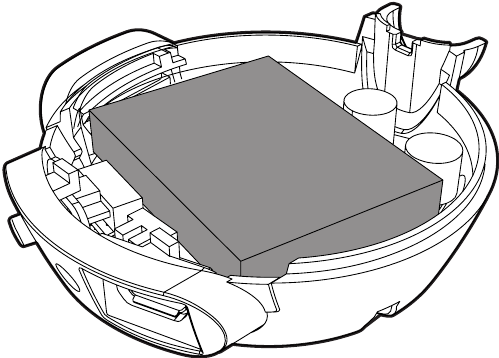

• Removal of the built-in battery invalidates the warranty and may destroy the product.

Always bring your product to a professional to remove the built-in battery.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)
Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Note

• The type plate is located on the bottom of the apparatus.

Your Portable Speaker

Overview of the speaker

1. • Turn the speaker on or off.
2. Charging socket
   • Recharge the built-in battery.
3. Audio input plug
   • Connect an external audio player.
4. Micro SD card slot
   • The slot for a Micro SD card.
5. • In Micro SD card mode, skip to the previous/next audio file.
   • Press and hold to increase/decrease volume.
6. • Start or pause play.
   • Switch between play modes.
   • In Micro SD card mode, press and hold for 3 seconds to turn on or off shuffle function.

Get started

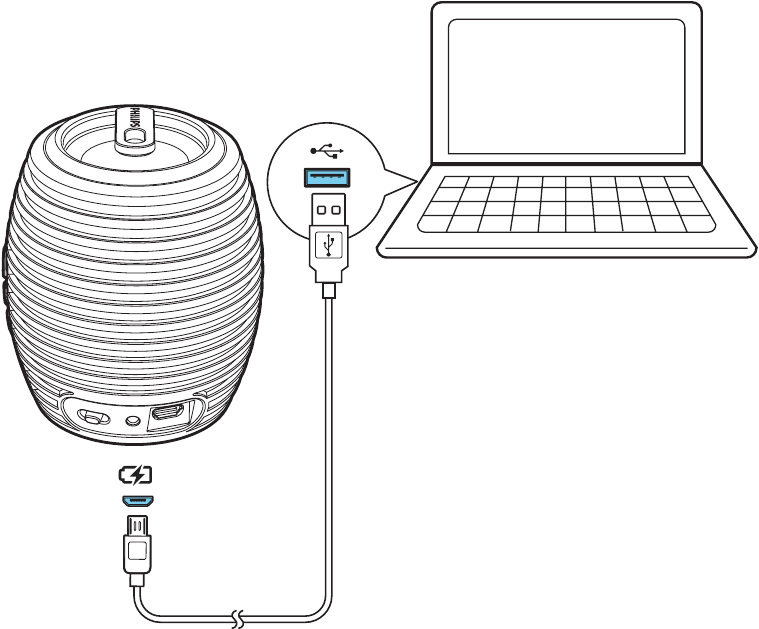

Power supply

You can listen to music with the speaker while charging it.

The speaker can operate on a built-in rechargeable battery.
To recharge the built-in battery:
Connect the supplied USB cable to:

• the charging port on the speaker.
• the USB socket of your computer.
  The LED indicator lights in red.

Turn on/off

1. To turn the speaker on, slide to the right.
   The LED indicator lights in white.
2. To turn the speaker off, slide to the left.

Select a source

Press repeatedly to select between Micro SD card mode and audio in mode.

Play

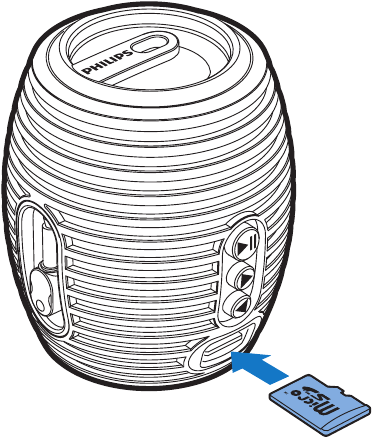

Play from Micro SD card

Note

• The speaker only supports Micro SD cards in FAT32/16/18 format.
• The speaker can only play audio files in MP3 format.

1. Insert a Micro SD card into the card slot. (see Figure below)

   If the speaker is in audio in mode, insert a Micro SD card, and press to switch to Micro SD card mode.
2. Slide to the right to turn the speaker on.
   Play starts automatically.
   • To pause play and switch to audio in mode, press .
   • To enable and disable shuffle mode, press and hold .
   • To select an audio file, press .
   • To adjust volume, press and hold .

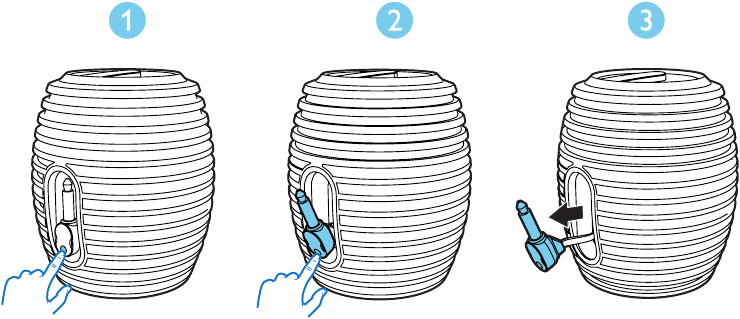

Play from an external device

With this speaker, you can also enjoy music from an external device.

1. Pull the audio input plug out of the speaker. (see Figure below)

2. Slide the switch to the right to turn the speaker on.
3. Connect the speaker to your device with the audio input plug.
4. Play audio on the device (see the device's user manual).
5. After use, disconnect your device from the speaker and slide the switch to the left to turn the speaker off.

Product information

Specifications

All registered and unregistered trademarks are property of their respective owners.
© 2013 Koninklijke Philips Electronics N.V.
All rights reserved.

SBM110_93_Short User Manual_V1.0
