DITRONIC
USER MANUAL
En
for 2.07 or higher
INSTRUCTIONS FOR MOUNTING
Pages: 19 - 36
Stavoklima s.r.o. | www.stavoklima.cz | DITRONIC-MANUAL | 19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DITRONIC and is the answer not in the manual?

Questions and answers

Related Manuals for Stavoklima DITRONIC

Summary of Contents for Stavoklima DITRONIC

  • Page 1 DITRONIC USER MANUAL for 2.07 or higher INSTRUCTIONS FOR MOUNTING Pages: 19 - 36 Stavoklima s.r.o. | www.stavoklima.cz | DITRONIC-MANUAL | 19...
  • Page 2 DITRONIC-MANUAL 20 | Stavoklima s.r.o. | www.stavoklima.cz | DITRONIC-MANUAL...

  • Page 3: Unpacking - Installation

    MODBUS communication interface page. 36 UNPACKING - INSTALLATION The Ditronic controller is available as a set with a room sensor, quick start guide, user manual, and installation accessories (dowels, screws), and a drill template. First, please check correct cable type *(recommen- ded cable type is UTP –...

  • Page 4: Drill Template

    As a security feature you can tighten the screws now (Fig. 2). CONTROLLER WALL MOUNTING included) Fig. 2 CONNECTION OF 8 PIN CONNECTOR (not included) Fig. 3 22 | Stavoklima s.r.o. | www.stavoklima.cz | DITRONIC-MANUAL...

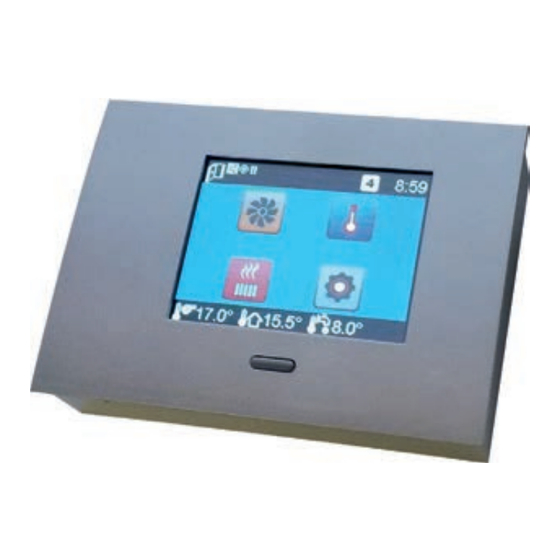

  • Page 5 DITRONIC-MANUAL CONTROLLER AND SYSTEM DESCRIPTION The Ditronic controller is a twin-processor controller intended for controlling of door air curtains. The controller is designed for wall mounting only in basic dry environment. DESCRIPTION OF THE SYMBOLS ON THE CONTROLLER Door contact permitted Filter service –...
  • Page 6 - E. HESTING *1 e.g. 7,5kW) *2 e.g. 12,5kW) *3 e.g. 20kW) - WATER HEATING *1 100%/ON) *2 100%/ON) *3 100%/ON) - HEATING / COOLING *0 -100% SETTING You can set other parameters here. 24 | Stavoklima s.r.o. | www.stavoklima.cz | DITRONIC-MANUAL...
  • Page 7 HELP TRONIC QR code display. Use a reader to get to the user manual to troubleshoot the Ditronic Touch. For more information go to: https://help.stavoklima-sw.eu SETTINGS You can set other parameters here. Stavoklima s.r.o. | www.stavoklima.cz | DITRONIC-MANUAL | 25...

  • Page 8: Time Clock Setting

    SWITCHING TIMES AND PROGRAM SETTING 12 16 20 24 10 14 18 22 “Weekday” setting (the other day) Time program start Time program end Time program number Time program hours setting Time program minutes setting 26 | Stavoklima s.r.o. | www.stavoklima.cz | DITRONIC-MANUAL...

  • Page 9: Control Sensor Selection

    This feature makes the controller to keep mi- 20 °C nimum temperature at the outlet sensor re- gardless temperature of the control sensors. CORRECTION OF TEMPERATURE SENSORS “+”, “–” °C corrections setup for each temperature sensor. Stavoklima s.r.o. | www.stavoklima.cz | DITRONIC-MANUAL | 27...
  • Page 10 Activation of the outdoor sensor displays current outdoor tem- perature. Automatic fan control based on the outdoor tempe- rature can be activated in the service menu. Outdoor Outdoor sensor OFF sensor ON 28 | Stavoklima s.r.o. | www.stavoklima.cz | DITRONIC-MANUAL...
  • Page 11 (in case heating request from the controller temperature require- ments set and temperatures measured on the sensors) or closed (where there is no request for heating from set and measured temperatures). Stavoklima s.r.o. | www.stavoklima.cz | DITRONIC-MANUAL | 29...

  • Page 12: Keyboard Lock

    Activate the heating up mode by pressing HEATING button for 5 seconds. Then, confirm the selection by pressing “ENTER” button. Press any button to deacti- vate the function, i.e. to return to previous setting. 30 | Stavoklima s.r.o. | www.stavoklima.cz | DITRONIC-MANUAL...

  • Page 13: Other Settings

    FAN CONTROL SETTING BY OUTDOOR TEMPERATURE Activation of the fan control by outdoor tem- perature and setting of the limit temperatures for switching between levels. OTHER SETTINGS You can set other parameters here. Stavoklima s.r.o. | www.stavoklima.cz | DITRONIC-MANUAL | 31...
  • Page 14 SPEED EC Manual con guration of outdoor temperature at which fan 100% revs speed (EC version) switches on automatically. The procedure for con guration of the outdoor temperatures for switching is identical. 32 | Stavoklima s.r.o. | www.stavoklima.cz | DITRONIC-MANUAL...

  • Page 15: Manual Valve Test

    The symbol appears after the value is exceeded. Twenty hours before the interval ends the F symbol blinks as warning of approaching maintenance. OTHER SETTINGS You can set other parameters here. Stavoklima s.r.o. | www.stavoklima.cz | DITRONIC-MANUAL | 33...

  • Page 16: Heating / Cooling Mode

    WINTER: the outdoor unit heats up only (default) SUMMER: the outdoor unit cools down only MODBUS Con guration and system control permission from Modbus. Modbus READ 34 | Stavoklima s.r.o. | www.stavoklima.cz | DITRONIC-MANUAL...

  • Page 17: Performance Curve

    66% Comfort: the air curtain cools down when door is closed, fans at 66% the air curtain cools down when door is open, fans at 100% Stavoklima s.r.o. | www.stavoklima.cz | DITRONIC-MANUAL | 35...

  • Page 18: Communication Parameters

    - 9600bps 8O1 - 9600bps 8N1 - 19200bps 8E1 - 19200bps 8N1 - 19200bps 8N2 - 19200bps 8O1 - 19200bps 8N1 Manual MODBUS (QR) Download the MODBUS communication interface parameters from: www.stavoklima.cz/download.html 36 | Stavoklima s.r.o. | www.stavoklima.cz | DITRONIC-MANUAL...
  • Page 19 Budějovická 450, 370 01 Homole tel.: +420 387 001 931 e-mail: info@stavoklima.cz www.stavoklima.cz...
