- Page 1 USER MANUAL USER MANUAL USER MANUAL USER MANUAL INSTRUCTIONS FOR MOUNTING INSTRUCTIONS FOR MOUNTING INSTRUCTIONS FOR MOUNTING INSTRUCTIONS FOR MOUNTING STAVOKLIMA v.o.s DITRONIC-MANUAL...

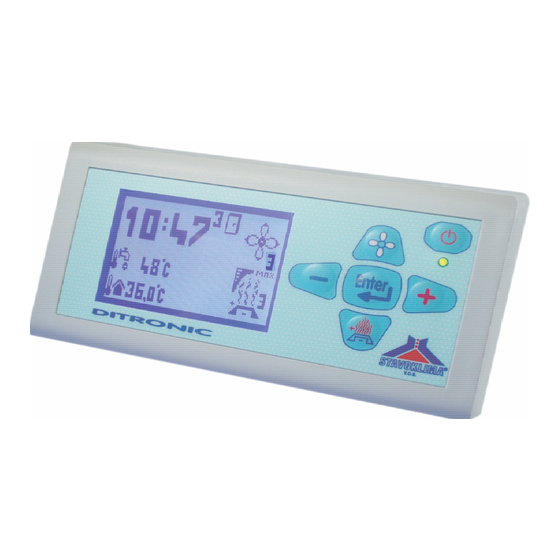

- Page 2 REGULATOR AND SYSTEM DESCRIPTION Regulator Ditronic and Ditronic plus is processor regulator intended for air curtains control. The regulator is intended only for wall mounting for basic environment without a humidity. Button ON/OFF Fan button (listing up) + button (listing right)
- Page 4 Attention !!! Before regulator connection (connection under voltage) check the righteness of all cabels in the unit electronic. Also check the rightness of the preliminary element according to the project documentation. STAVOKLIMA v.o.s DITRONIC-MANUAL...
- Page 5 The hand mode activation is made by pressing the button " - " for 5 s. Active control BMS is indicated via lighting icon, control in hand mode - blinking icon. STAVOKLIMA v.o.s DITRONIC-MANUAL...
-
Page 6: Keyboard Lock
TEMPERATURE OF OUTLET AIR This icon signals the air temperature coming out of the unit. From this sensor is also activated the anti-frost protection of the heat exchanger. The sensor also restricts the minimum outlet temperature. STAVOKLIMA v.o.s DITRONIC-MANUAL... -
Page 7: External Contact
If the temperature still falls down, the acoustic warning signal is active. At the electro version is watched only the anti-frost protection of the room. STAVOKLIMA v.o.s DITRONIC-MANUAL... - Page 8 The regulator offers in "user mode (UU)" selection of two possible temperatures, according to which the unit will be controled (outlet sensor or room sensor). The device controls the setted temperature in "UU". Via buttons "+" and "-" it is possible to make the temperature correction. STAVOKLIMA v.o.s DITRONIC-MANUAL...
- Page 9 (line 1). TIME SETTING - MINUTES Here you can set (change) the real time - MINUTES. This line is active only if you have choosen to control the unit according to the time clock (line 1). STAVOKLIMA v.o.s DITRONIC-MANUAL...
- Page 10 +, - ° C through this correction. It is also necessary to use this correction while excessive sunshine or sensor cooing. See page 17 STAVOKLIMA v.o.s DITRONIC-MANUAL...
- Page 11 Unlock and back lock you can make when pressing the buttons "+" and "-" for 2s at the same time. For the safety purpose the only button "ON/OFF" is still active, even the keyboard is locked. STAVOKLIMA v.o.s DITRONIC-MANUAL...
- Page 12 Change of the switching contact will lead to the right contact position to the regulator icon. This setting is active only, if the door contact was allowed (line 16). STAVOKLIMA v.o.s DITRONIC-MANUAL...
- Page 13 Repeated door opening will cause switch over into the setted grades. Active regime is signaled via blinking icon. The door contact will automatically release and set, if you will choose A ="ON". STAVOKLIMA v.o.s DITRONIC-MANUAL...
- Page 14 (line 1). SWITCH ON TIME - REGIME 1÷5 ; MINUTES Time setting "MINUTES" SWITCH ON for the selection "1-5".This line is active only, if you have choosen the control according to the time clock (line 1). STAVOKLIMA v.o.s DITRONIC-MANUAL...
- Page 15 (line 1). SWITCH ON TIME - REGIME 7; HOURS Time setting "HOURS" SWITCH ON for the selection "7".This line is active only, if you have choosen the control according to the time clock (line 1). STAVOKLIMA v.o.s DITRONIC-MANUAL...
- Page 16 Time setting "MINUTES" SWITCH OFF for the selection "1-7".This line is active only, if you have choosen the control according to the time clock (line 1). STANDARD FACTORY SETTINGS Option for overwriting the memory into the first setting = factory setting. STAVOKLIMA v.o.s DITRONIC-MANUAL...
-
Page 17: Master-Slave System
MASTER-SLAVE SYSTEM The regulators Ditronic support as standard the connection possibility of other parallel devices. Under the condition for their function is the right connection and respecting the same types of air curtains and their regulating systems (it is not possible to combine water heated and electro units). -
Page 18: Safety Notice
Keep the permitted conditions of surrounding environment. DITRONIC PLUS - USB The regulator Ditronic is produced also in the version DITRONIC PLUS. This kind of regulator allows to configurate the setting via USB port and PC. There is delivered a configuration software to DITRONIC PLUS, which is a part of the delivery. - Page 19 Also the medium connection must be performed by a qualified company. If the regulator Ditronic will be eventually damaged, it is not necessary to switch off the unit. Disconnect only the current supply of the unit and demount the regulator from the wall.
- Page 20 - the unit can run in a short-time as you want and expect, but this may cause irreversible losses and damages. There is no guarantee due to this operation. STAVOKLIMA v.o.s, HORNI 22 HORNÍ 22 CZ 37004 - ČESKÉ BUDĚJOVICE WWW.STAVOKLIMA.EU...
