POWER 500 USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POWER 500 and is the answer not in the manual?

Questions and answers

ron chan
July 14, 2025

where to send powerblock 500 for service and cost

0

Related Manuals for Duracell POWER 500

Summary of Contents for Duracell POWER 500

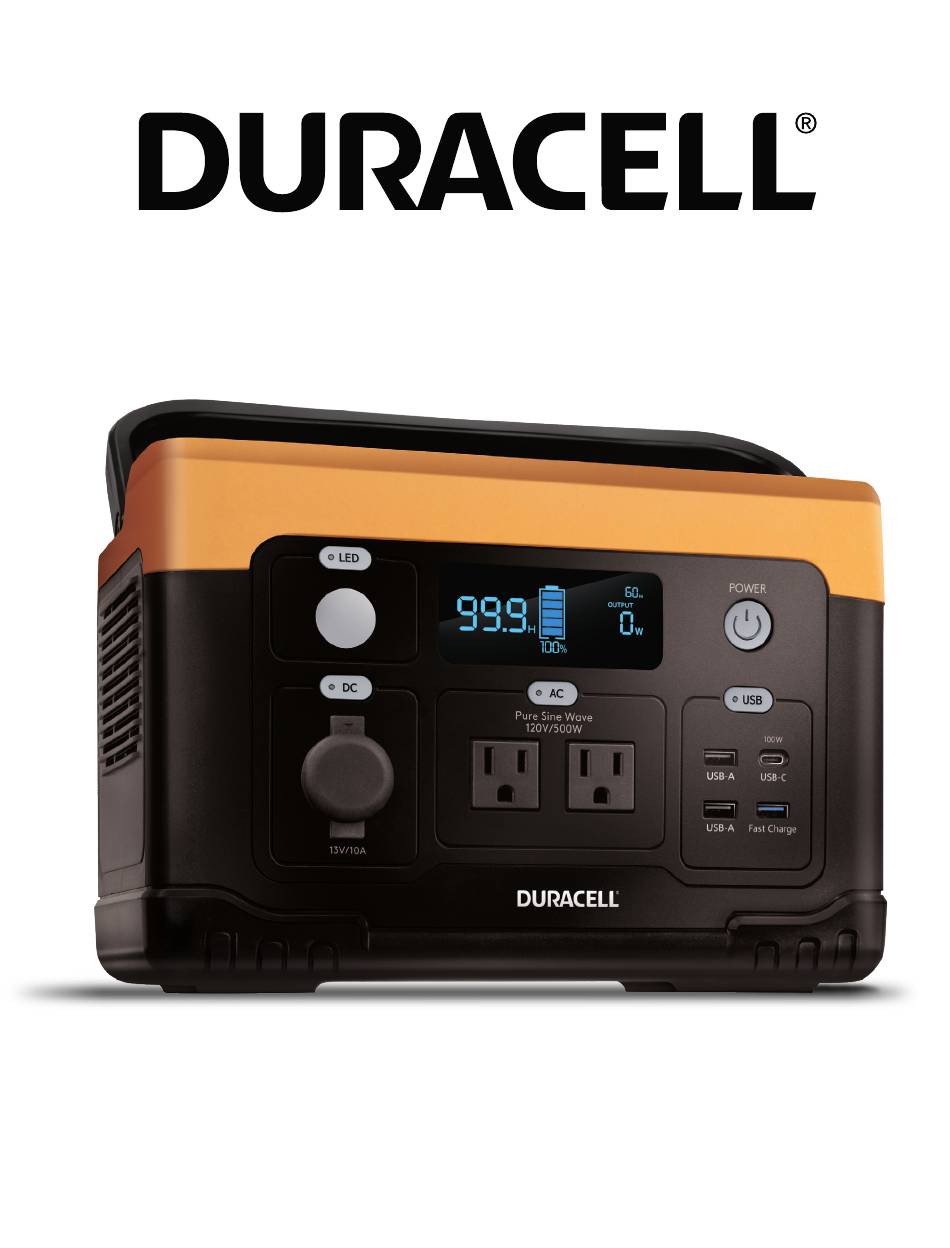

  • Page 1 POWER 500 USER MANUAL...

  • Page 2: Important Safety Information

    12. Do not remove power cables by pulling on the cable itself, as it may fray and cause a short circuit. Cables should be properly removed by holding their connectors and pulling. 13. Please visit www.duracell.com or call Duracell Consumer Relations at 800-551-2355 if you experience any problems with the Unit.

  • Page 3: Included In The Package

    INCLUDED IN THE PACKAGE 1. POWER STATION 2. AC ADAPTER 3. CAR CHARGER CABLE 4. QUICK START GUIDE (To be used for charging the Unit only) POWER 500 DETAILS LCD Info Screen 88.8 Charging Discharging INPUT OUTPUT 8888 ERROR OVERLOAD...
  • Page 4 The car may not be able to charge the Unit properly from the Vehicle’s CLA socket when the Vehicle’s Engine is turned OFF. If charging from Duracell’s Solar Power (sold separately), connect it to the DC input using one of the three plugs provided (DC8020 plug). Maximum Input power allowed for solar charging is 200W and maximum Voltage is 30V.
  • Page 5 USING YOUR POWER 500 1. Short Press the main POWER button to turn the Unit on. The POWER button will glow, LCD screen will light up and the battery level indicator will display the current state of charge. 2. Once the POWER button is on, the Unit has an auto-shut o˛ feature to save power. It will shutdown after 5 minutes if none of the ports are turned on.

  • Page 6: Troubleshooting

    LCD will show up a Fan icon momentarily. When the fan turns, the icon ˝ashes (rotates). When the fan stops spinning, the icon turns o˙. If you are still experiencing problems with you Duracell Power Station, please visit www.duracell.com or call Duracell Consumer Relations at 800-551-2355.

  • Page 7: Frequently Asked Questions

    5. Can I recharge my Power 500 while using it? Yes, the Power 500 can be charged and used at the same time, but it will extend the recharge time. 6. Can my Power 500 be used as an Uninterrupted Power Supply (UPS)? No, the Power 500 is not designed to be used as a UPS.

  • Page 8: Warranty Information

    WARRANTY INFORMATION Duracell o˛ers a 24-month limited warranty from the date of purchase. Keep a copy of your purchase receipt as proof of purchase. Our product’s warranty is limited only to the Unit itself when used normally in accordance with the operating instructions and the system environment. The customer acknowledges and agrees that: •...

  • Page 9: Specifications

    SPECIFICATIONS MODEL PPS500-515-120-02 BATTERY Chemistry Li-Ion NMC Maximum Capacity 515Wh (23.2Ah@22.2V) Cell Lifecycles 1000 Cycles to 80% capacity (cell) Storage Requirement Recharge every 3-6 months Protection Systems* Over and Under Temperature Protection, Short Circuit Protection, Overload Protection, Battery Over Charge and Over Discharge Protection, DC Input Overvoltage, Undervoltage and Reverse Polarity Protection.

This manual is also suitable for:

Pps500-515-120-02
