PORTO
DAYBED

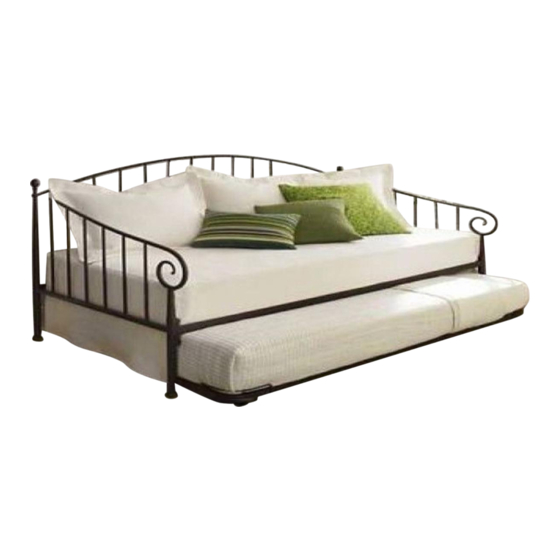

Thank you for purchasing the Porto Daybed. This
page lists all the contents included in the box. Please
take time to identify the hardware as well as the
individual components of this product. As you unpack
and prepare for assembly, place the contents on a
carpeted or padded area to protect them from damage.
Note: 2 people are required to safely assemble this product.
COMPONENTS
1 - back
frame
1 - rail
Made in China - r03
2 - side frames
(1 left, 1 right)
1 - slats
Customer Service 800.967.6696 | Latest instructions available on www.crateandbarrel.com
HARDWARE
2 - large
2 - small
frame bolts
frame bolts
4 - slat
4 - spring
nuts
washers
Missing hardware?
Please call 800.606.6387 for replacements.
TOOLS REQUIRED
small allen wrench (included)
large allen wrench (included)
large
frame bolt
1 With the assistance of another adult, attach left and
right side frames to back frame with 2 large frame
bolts and 2 small frame bolts as shown. Secure large
bolts with a large allen wrench, and small bolts with a
small allen wrench.
4 - rail
4 - slat
bolts
bolts
4 - flat
washers
small frame
bolt
Page 1 of 2
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Crate&Barrel PORTO DAYBED
Summary of Contents for Crate&Barrel PORTO DAYBED
- Page 1 Missing hardware? Please call 800.606.6387 for replacements. Thank you for purchasing the Porto Daybed. This page lists all the contents included in the box. Please take time to identify the hardware as well as the TOOLS REQUIRED individual components of this product. As you unpack...
- Page 2 PORTO DAYBED slat bolt rail slat nut 3 Place slats onto assembled unit as shown. Using the 2 Attach rail to assembled unit with 2 rail bolts, 2 small allen wrench, secure slats with 4 slat bolts and 4 spring washers, and 2 flat washers per side frame as slat nuts as shown.
