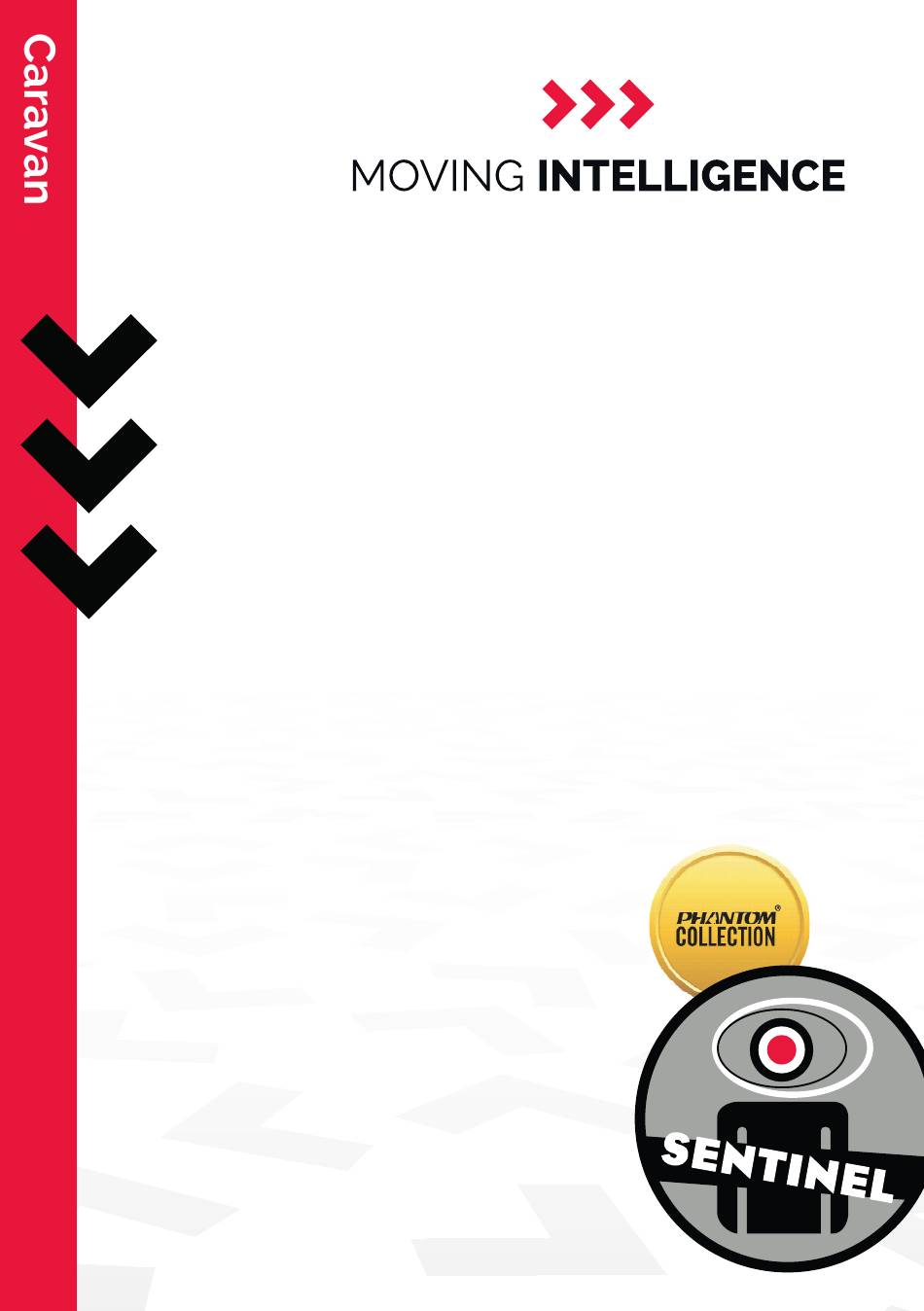

- Page 1 Sentinel Alarm &Tracking Protect your investment Moving Intelligence User Guide...
- Page 2 Alarm& Tracking A security system developed by two of the leading brands in leisure vehicle security…… SENTINEL It’s the complete insurance rated alarm and our latest Phantom Pro3 GPS system, not only protecting your caravan but bringing the ability to monitor and control remotely! Never again will you wonder if you set the alarm.
- Page 3 Thank you for purchasing the Sentinel caravan alarm and tracking system by Moving Intelligence (Phantom). We have prepared some basic instructions to get you started. Contents Alarm&Fob 10. Portal 14. App 18. Tracking System Info Download our user guides in PDF...

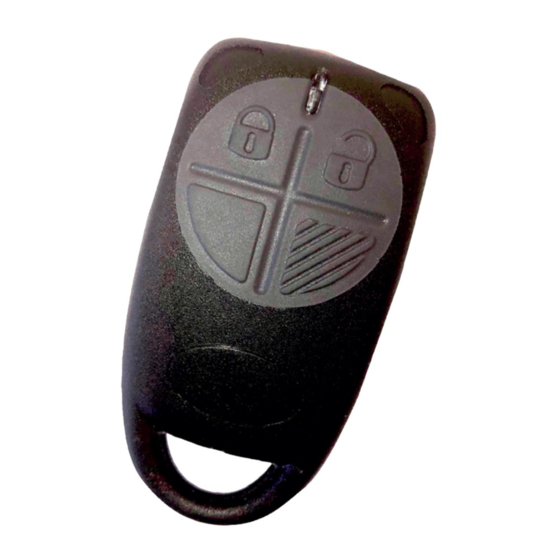

- Page 4 Alarm&Fob Our standard installation will usually include : The standard alarm incorporates an electronic tilt sensor and a wireless Passive Infrared sensor (PIR) along with 2 four button remotes. The alarm does have the facility to turn the awning light on during the arm and disarm process.
- Page 5 System arming The alarm unit can be armed by pressing the arm - button 1. Two high-pitched beeps will confirm the operation and the dome light will turn ON for approx. 30 sec. The system has a 30 sec. arming delay which allows you to exit the caravan without triggering an alarm.
- Page 6 Tilt sensor exclusion* Arm the alarm as usual by pressing button 1. After the usual two beeps wait 4 seconds and press button 3. Tilt sensor exclusion is confirmed by one beep. *Please note: Sensor exclusion is bound to a single arming cycle. Sensors will automatically be enabled the next time the alarm is armed.
- Page 7 6 Tilt sensor adjustment The TILT sensor sensitivity level is factory set to trigger an alarm if the vehicle is tilted at an angle of approx. 1.5° with respect to the x, y and z-axis.Sensor sensitivity can be custom-adjusted: Disarm the alarm system. Simultaneously press, twice in a row, remote control buttons 1 and 2: 2 ‘Bops’...
- Page 8 7 Alarms An alarm event will trigger the siren for a maximum of 30 seconds. If the alarm condition remains or the alarm is not disarmed it will trigger another cycle after a pause of 5 seconds. Each alarm condition will trigger a maximum of 8 cycles.
- Page 9 10 Battery replacement When the remote batteries are too weak you’ll notice the blue LED flicker/flash when arming or disarming the alarm. Replace the CR2032 battery If the PIR battery is running low a secondary “bop” will sound after the usual arming 2 beeps of the siren. To replace the batteries detach the cover of the PIR from itsmounting base.
- Page 10 Your portal Our unique portal providing online access to monitor your caravan. Login via the Moving Intelligence (Phantom) website or download our App on Android or Apple. You’ll be able to check your location and battery voltage as well as setting service mode. SENTINEL ALARM &...
- Page 11 Your portal Caravan information and your individual Moving Intelligence (Phantom) Tracking device number. You can edit the name to suit yourselves. Displays the location of your vehicle which updates each time you move or every 6 hours if stationary. Portal will let you...
- Page 12 Reports We monitor and store the voltage of the battery which is being used to power the Moving Intelligence (Phantom) tracking unit for 30 days, this enables you to spot possible issues with power drains, solar...
- Page 13 You can submit a support request on our online system. You can monitor all chat Online Support response and view your whole conversation.
- Page 14 OurApp Visit the Apple Appstore or Google Play Store to download. Menu Overview is your account infomation the date your subscription ends vehicle info etc. View your vehicles location.
- Page 15 Menu View the mileage history and battery history of your vehicles where applicable. Place your motorhome into service mode for a period of time. Select which alerts you wish to disable. Temporarily disable power or alarm alerts.
- Page 16 Who can view your vehicles data Manage who can see your vehicles location. Friends and family if you want them to monitor your vehicles. Your Alarm Your alarm is connected to the tracking system. We notifiy you via a call if the alarm goes off.
- Page 17 The shield function can be used to alert users to movement of the caravan. Easily enabled and disabled a notification will be sent each time the ignition is turned on. Need a movement alert Menu PLEASE NOTE 1. You must enable notifications for this to work 2.
- Page 18 Pro3 Tracker featured with your Sentinel. Product Specs Tracker GPS on Demand Power Cut (Tamper Alert) Alarm Interface Shield Low Battery Alert (SMS) MY PHANTOM SMART PHONE APP Mi01 Pro 3 P r o 3 SENTRY SENTRY...
- Page 19 24-7 monitoring Pro 3 P r o 3 Our Systems are designed exclusively with our Caravaners in mind, providing features now and in the future to match any tracking needs. The ‘Pro3’ checks into our central server twice a day, every day. It reports its position and battery level as well as recording any mileage travelled.
- Page 20 SENTINEL ALARM & TRACKING...
- Page 21 NEW PORTABLE SELF FIT Great system that can be an addition to your family of Moving Intelligence products. This after theft reactive waterproof device reports in once a day and gives you extra peace of mind. It’s not connected to the battery so it can’t give you the same reports and triggers and notifications.
- Page 22 Optional extras and Upgrades Window contacts Door contacts Terms and conditions Please visit the website for terms and conditions SENTINEL ALARM & TRACKING...
- Page 23 We don’t just track Caravans and Motorhomes we can help you track all things moving. MOTORBIKE TRACKING PLANT TRACKING BOAT TRACKING FLEET TRACKING CAR TRACKING We have you covered!
- Page 24 Mi01 TRACK Pro 3 P r o 3 SENTRY SENTRY Download our user guides in PDF Other products available www.movingintelligence.co.uk...
