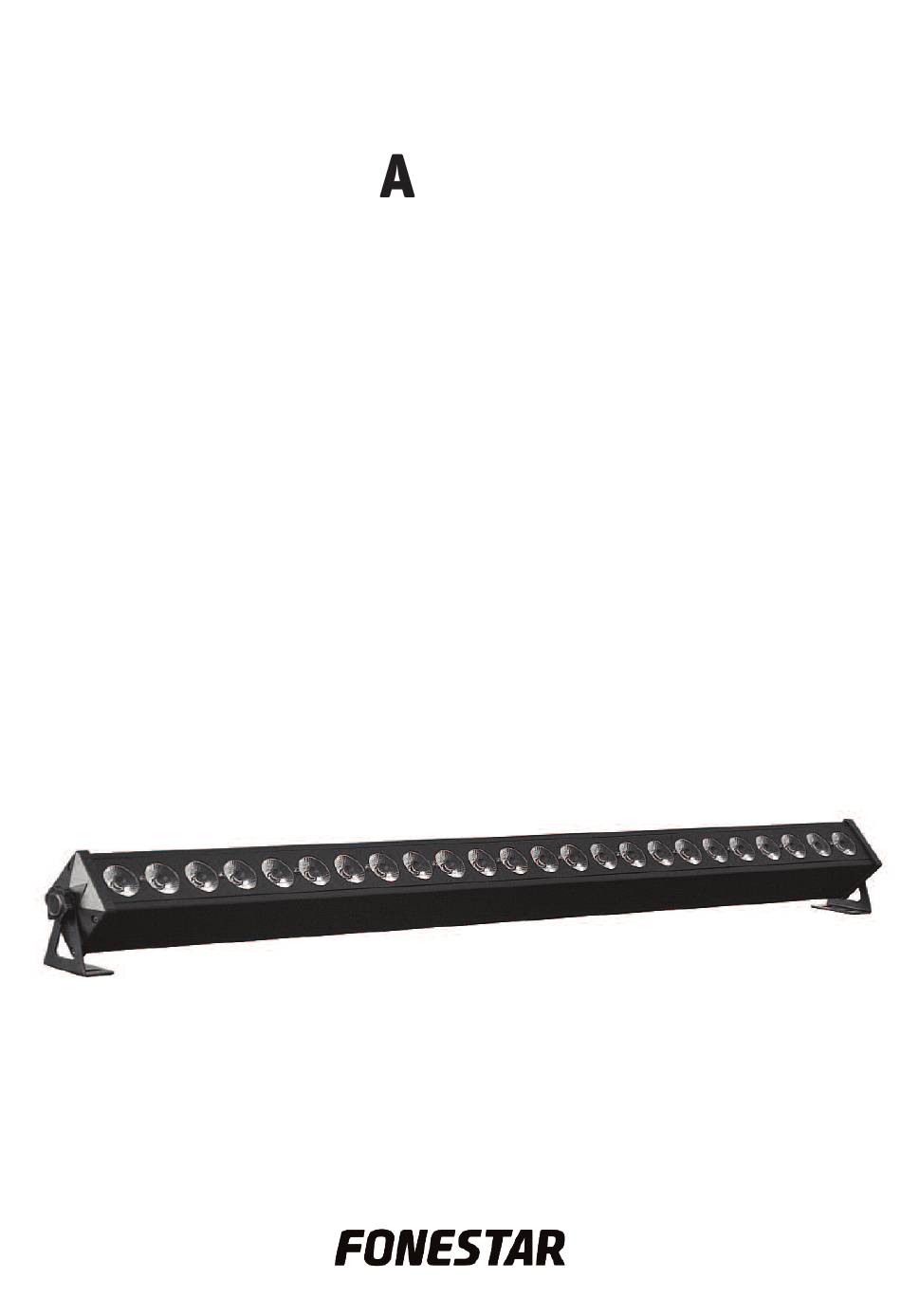

- Page 1 B R-72L LED BAR 24 x 3 W RGB INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
-
Page 3: Exemption Of Liability
The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use. -
Page 4: Controls And Functions Rear Panel
DESCRIPTION Tricolor LED bar RGB. DMX control via 50 channels, automatic mode, static mode, sound activation or master/slave mode. Colour, dimmer, strobe adjustment and speed adjustable via DMX control console. Microphone incorporated. CONTROLS AND FUNCTIONS REAR PANEL Microphone. DISPLAY: shows current operating mode of device. Control panel buttons: MENU: to change the parameter to be modified. - Page 5 In order to control the device using the DMX control console, select the Addr mode and the DMX address with a value between 1 and 512 using the UP, DOWN buttons and confirm with the ENTER button. In the following table the device’s functions performed by the DMX channels are shown. It is possible to alternate their use freely among several channels simultaneously.
- Page 6 26 channels: FUNCTIONS VIA DMX 512 CONTROL CONSOLE DMX CH DMX VALUE FUNCTION 0-255 DIMMER 1 0-255 STROBE 1 0-255 Red 1 intensity adjustment 0-255 Green 1 intensity adjustment 0-255 Blue 1 intensity adjustment 0-255 AUTO 1 0-255 DIMMER 2 0-255 STROBE 1 0-255...
- Page 7 0-255 Blue 3 intensity adjustment 0-255 AUTO 3 0-255 DIMMER 4 0-255 STROBE 4 0-255 Red 4 intensity adjustment 0-255 Green 4 intensity adjustment 0-255 Blue 4 intensity adjustment 0-255 AUTO 4 0-255 DIMMER 5 0-255 STROBE 5 0-255 Red 5 intensity adjustment 0-255 Green 5 intensity adjustment 0-255...
- Page 8 158-172 Color Chase 11 173-187 Color Chase 12 188-202 Color Chase 13 203-217 Color Chase 14 218-232 Color Chase 15 233-247 Color Chase 16 248-255 Sound activation - In order to connect several devices controlled via the DMX-512, interconnect them using XLR cables with the following configuration: - Connect the device to the mains supply and switch it on.
-
Page 9: Safety Recommendations
- Do not move or manipulate the equipment while it is connected to the mains and operating. - Do not modify the lighting elements of the equipment without technical supervision or with material that has not been guaranteed by the supplier. TECHNICAL SPECIFICATIONS BAR-72L CHARACTERISTICS Tricolor LED bar RGB. 3 individually controllable LED octets. -
Page 10: Warranty
2 months after being conscious of the problem. It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it. To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no corrections or crossing out. - Page 11 - 11 -...
