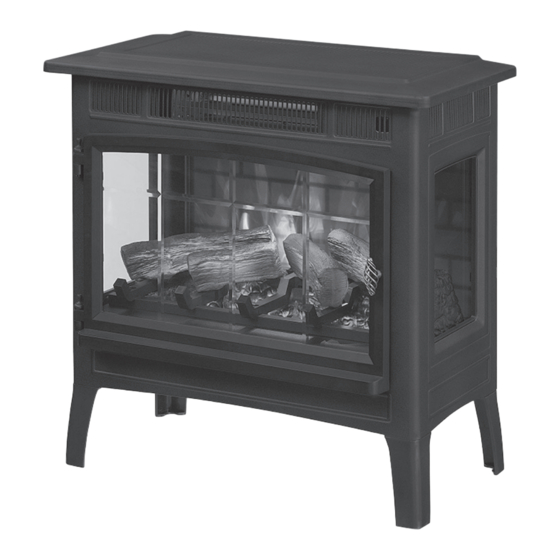

- Page 1 TM / MC / MR MODEL: CFI-5011-01, CFI-5011-03, CFI-5011-04 www.tsicustomerservice.com 1-866-661-1218 Twin-Star International, Inc; Delray Beach, FL 33445 Made in China A612 www.tsicustomerservice.com...
-
Page 2: Important Instructions
IMPORTANT INSTRUCTIONS When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock, and injury to persons including the following: 1. Read all instructions before using this appliance. 2. This appliance is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use handles when moving this appliance. -
Page 3: Getting Started
MOVABLE HEATER/ Model Number MEUBLE CHAUFFANT/ CALENTADOR DE MUEBLES CFI-5011-03 120V ~, 1500W, 60Hz Twin-Star International, Inc. www.twinstarhome.com CONFORMS TO UL STD. 1278 CERTIFIED TO CSA C22.2 NO.46 EN CONFORMITÉ AVEC LA NORME UL 1278 CERTIFIÉ CSA C22.2 NO 46 MADE IN CHINA CONFORME A UL STD.1278... -
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS Tools Required for Assembly Phillips Head Screwdriver Leg Assembly Leg Assembly Bracket 1. Align the mounting tab into the bracket and 2. Fasten the leg to the bracket using the included lower the leg into place. (Fig 1) screws, 3 per leg. - Page 5 OPERATION INSTRUCTIONS Remote Receiver Control Panel Location Control Panel Remote Control NOTE: Please operate the remote transmitter at a slow measured pace. Press the remote control buttons with an even motion and gentle pressure. Repeatedly pressing buttons in rapid succession may cause the transmitter to malfunction.
- Page 6 OPERATION INSTRUCTIONS Description Function Icon The POWER button supplies power to all the functions of the stove. Pressing the POWER button again the stove will POWER be put in standby mode. This will turn off all functions at once but will hold the settings in the memory. By pressing the Power button again the unit will turn on at the same settings.
-
Page 7: Troubleshooting Guide
TROUBLESHOOTING GUIDE Problem Root Cause Corrective Action 1. Display shows The thermostat sensor is Unplug the stove, remove the back panel of the stove and check that “ ” broken or disconnected. the thermostat is plugged into the main circuit board. If this does not solve the problem contact customer service for a replacement thermostat sensor. - Page 8 TROUBLESHOOTING GUIDE Problem Root Cause Corrective Action 10. Not producing 10a. power strip/surge protector/ 10a. Plug unit directly into the wall. enough heat. extension cord being used 10b. Make sure unit is located on an interior wall. 10b. Location of unit. 11.
-
Page 9: Exploded View
EXPLODED VIEW Part Part Name Part Number Main Circuit Board Y17-S243-P15 Flame Generator Drive Motor Y16-S174-P10 Door Pull Y16-S201-DP Control Panel Circuit Board Y17-S243-P32 Heater/Blower Assembly Y15-S201-P01 SL-5011-01 SL-5011-03 Stove legs SL-5011-04 Remote control P166 NTC-S A612 www.tsicustomerservice.com... -
Page 10: Fcc/Ic Information
FCC/IC INFORMATION Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 11: Year Limited Warranty
1-YEAR LIMITED WARRANTY The manufacturer warrants that your new Electric Stove is free from manufacturing and material defects for a period of one year from date of puchase, subject to the following conditions and limitations. 1. Install and operate this appliance in accordance with the installation and operating instructions furnished with the product at all times. - Page 12 TM / MC / MR www.tsicustomerservice.com A612 www.tsicustomerservice.com...
