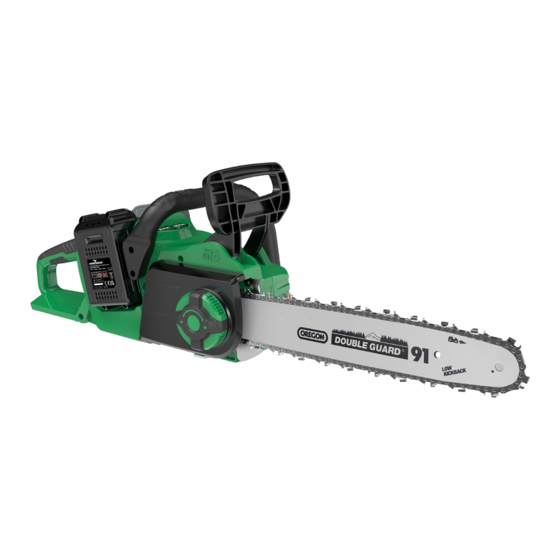

36v (2 x 18v) 40.6cm brushless cordless chainsaw
Hide thumbs
Table of Contents

Advertisement

Quick Links

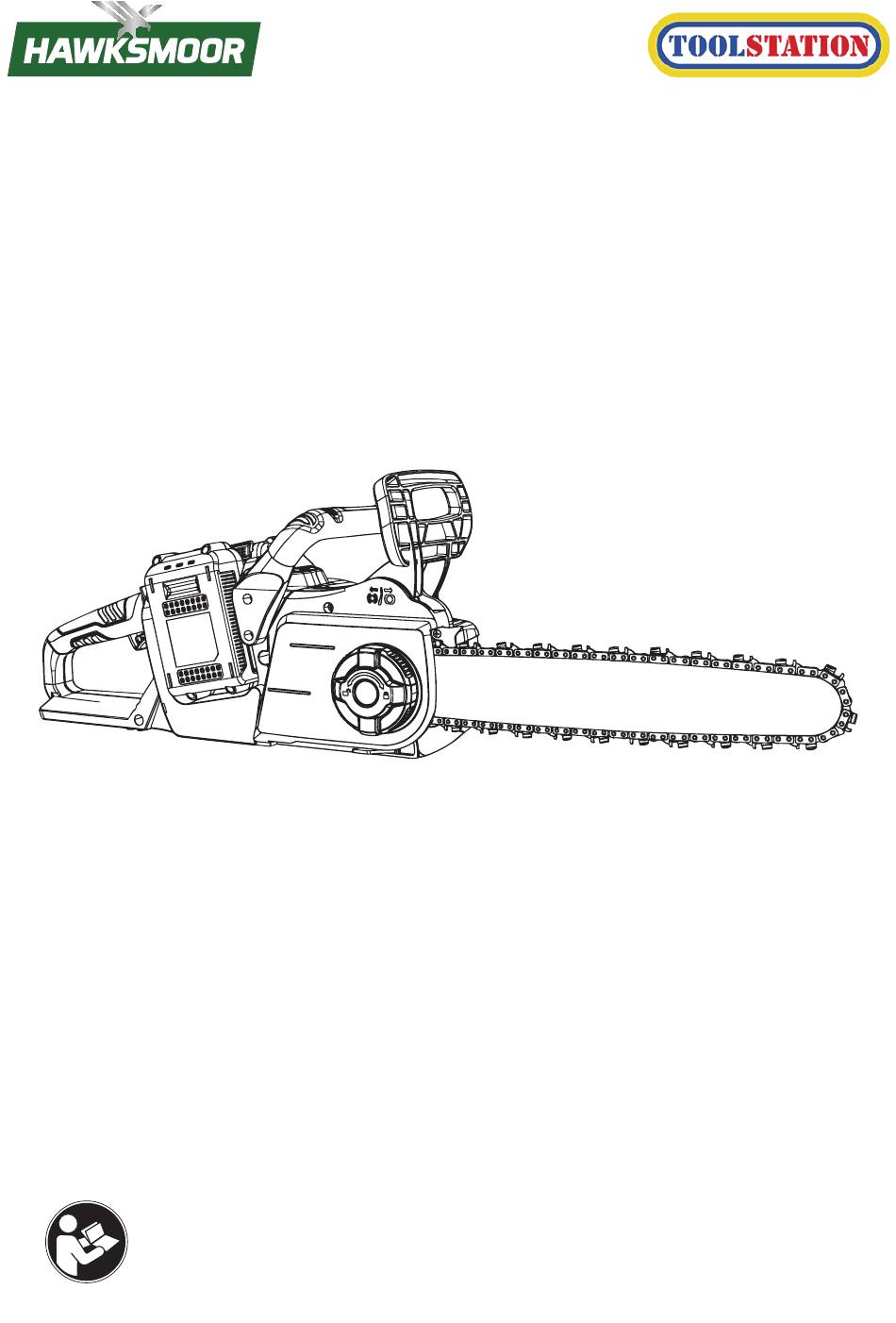

Original User's Instructions
36V (2 x 18V) 40.6cm Brushless
Cordless Chainsaw
SKU: 44892
READ BEFORE USE
PLEASE KEEP THESE INSTRUCTIONS FOR FURTHER REFERENCE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 44892 and is the answer not in the manual?

Questions and answers

Related Manuals for Hawksmoor 44892

Summary of Contents for Hawksmoor 44892

  • Page 1 Original User’s Instructions 36V (2 x 18V) 40.6cm Brushless Cordless Chainsaw SKU: 44892 READ BEFORE USE PLEASE KEEP THESE INSTRUCTIONS FOR FURTHER REFERENCE...

  • Page 2: Table Of Contents

    CONTENT ∫ WHAT’S IN THE BOX ---------------------------------------------------------- 3 ∫ SPECIFICATIONS -------------------------------------------------------------- 4 ∫ EXPLANATIONS AND SYMBOLS, CAUTIONS AND WARNINGS ---------- 6 ∫ IMPORTANT SAFETY WARNINGS -------------------------------------------- 8 ∫ PRODUCT DESCRIPTION AND IDENTIFICATIONS ------------------------ 25 ∫ ASSEMBLY AND OPERATING INSTRUCTIONS -----------------------------26 ∫...

  • Page 3: What's In The Box

    WHAT'S IN THE BOX Chain saw body Bar protection cover Oregon saw chain x 1 Oregon guide bar x 1 Battery pack x 2 Charger If you do not have all these items, please contact: www.coreservice.co.uk Hotline: +44 01904 947568 Email support@coreservice.co.uk www.coreservice.co.uk Hotline: +44 01904 947568...

  • Page 4: Specifications

    SPECIFICATION Technical Data Model RLC40HD-SM Nominal voltage of product with battery 36 (2x18)V d.c./4.0Ah Li-Ion Bar length 406mm Cutting length 360mm Chain speed 15m/s Oil tank capacity 260ml Saw chain type Oregon(91PX057X) Bar type Oregon(160SDEA041) Weight (chain & bar included) approx. 5.1 kgs Protection class of charger Class II...
  • Page 5 WARNING: The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period. An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job.

  • Page 6: Explanations And Symbols, Cautions And Warnings

    EXPLANATIONS AND SYMBOLS, CAUTIONS AND WARNINGS To reduce the risk of injury, user must read instruction manual Warning! Wear ear protection Wear eye protection Wear gloves Wear protective shoes Wear dust mask Beware of chain saw kickback and avoid contact with bar tip Do not expose to rain Always use chain saw two-handed www.coreservice.co.uk...
  • Page 7 Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste. Do not burn Li-Ion battery This product has been marked with a symbol relating to ‘separate collection’...

  • Page 8: Important Safety Warnings

    IMPORTANT SAFETY WARNINGS General Power Tool Safety Warnings Warning: Please read the following instructions carefully, failure to do so could lead to serious personal injury. When using the electric chainsaw, basic safety precautions, including the following, should always be followed to reduce the risk of fire,electric shock and personal injury.
  • Page 9 Work Area Safety • Keep work area clean and well lit. Cluttered or dark areas invite accidents. • Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. •...
  • Page 10 Personal Safety • Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
  • Page 11 Power Tool Use and Care • Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. • Do not use the power tool if the switch does not turn it on and off.
  • Page 12 Service • Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Product Safety Warnings Chain Saw Safety Warnings: • Use the tool only with specifically designated battery packs. Use of any other battery packs will increase the risk of injury and fire.
  • Page 13 • Do not operate a chain saw in a tree, on a ladder, from a rooftop, or any unstable support. Operation of a chain saw in this manner could result in serious personal injury. • Always keep proper footing and operate the chain saw only when standing on fixed, secure and level surface.
  • Page 14 • Follow all instructions when clearing jammed material, storing or servicing the chain saw. Make sure the switch is off and the battery pack is removed. Unexpected actuation of the chain saw while clearing jammed material or servicing may result in serious personal injury.
  • Page 15 • Do not overreach and do not cut above shoulder height. This helps prevent unintended tip contact and enables better control of the chain saw in unexpected situations. • Only use replacement bars and chains specified by the manufacturer. Incorrect replacement guide bars and saw chains may cause chain breakage and/or kickback.
  • Page 16 1. Felling a tree When bucking and felling operations are being performed by two or more persons at the same time, the felling operations should be separated from the bucking operation by a distance of at least twice the height of the tree being felled. Trees should not be felled in a manner that would endanger any person, strike any utility line or cause any property damage.
  • Page 17 3. Felling back cut Make the felling back cut (Y) at least 50 mm higher than the horizontal notching cut as illustrated in Figure 1. Keep the felling back cut parallel to the horizontal notching cut. Make the felling back cut so enough wood is left to act as a hinge. The hinge wood keeps the tree from twisting and falling in the wrong direction.
  • Page 18 4. Limbing a tree Limbing is removing the branches from a fallen tree. When limbing leave larger lower limbs to support the log off the ground. Remove the small limbs in one cut as illustrated in Figure 2. Branches under tension should be cut from the bottom up to avoid binding the chain saw.
  • Page 19 When the log is supported on one end, as illustrated in Figure 4, cut 1/3 the diameter from the underside (underbuck) (1). Then make the finished cut by overbucking (2) to meet the first cut. Figure 4 When the log is supported on both ends, as illustrated in Figure 5, cut 1/3 the diameter from the top (overbuck) (1).
  • Page 20 When bucking on a slope always stand on the uphill side of the log, as illustrated in Figure 6. When “cutting through”, to maintain complete control release the cutting pressure near the end of the cut without relaxing your grip on the chain saw handles. Don’t let the chain contact the ground.
  • Page 21 • Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another.
  • Page 22 • Recharge only with the charger specified by manufacturer. Do not use any charger other than that specifically provided for use with the equipment. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
  • Page 23 • Do not abuse the cord of charger. Never use the cord for carrying, pulling or unplugging the charger. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. •...
  • Page 24 • This charger can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

  • Page 25: Product Description And Identifications

    PRODUCT DESCRIPTION AND IDENTIFICATIONS 1. Battery pack 11. Lock off switch 2. Front hand guard/chain brake 12. Rear handle 3. Guide bar 13. Switch trigger 4. Saw chain 14. Front handle 5. Chain tensioning dial 15. Oil tank cap 6. Sprocket cover 16.

  • Page 26: Assembly And Operating Instructions

    ASSEMBLY AND OPERATING INSTRUCTIONS NOTE: To reduce the risk of injury, user must read instruction manual. Intended Use The chainsaw is intended for sawing of trees, tree trunks, branches, wooden beams, planks, etc. Cuts can be sawed with or across the grain. This product is not suitable for sawing mineral materials.
  • Page 27 2. Remove the sprocket cover (6). 3. Place the saw main body on a flat, firm surface. Wearing protective gloves, slide and wrap the chain(4) in the groove around the guide bar(3). Ensure the saw chain teeth are facing in the correct running direction by comparing it to the chain icon on the guide bar and machine.
  • Page 28 4. Hold the guide bar still and fit the chain(3) onto the drive sprocket(a). Pull the chain around the drive sprocket(a) and into sprocket teeth. Position the guide bar(3) on the threaded stud. Make sure the chain fits around drive sprocket(a) and keep the chain direction as shown in below figure. Pay attention to make sure that the chain drive links(b) are fully and correctly seated into the sprocket teeth according to the label on the sprocket cover, to avoid a kink.
  • Page 29 6. Rotate the chain quick tensioning dial(5) clockwise until the guide bar and saw chain are firmly tightened. 7. Tensioning chain and bar NOTE: New saw chains will stretch slightly. Check the chain tension frequently when first used and tighten when the chain becomes loose around the guide bar. The tension is correct when the chain snaps back after being pulled 3 mm away from the guide bar with light force from the index finger and thumb as shown in Figure below.
  • Page 30 Before operation WARNING: The charger and battery pack are specially designed to work together so do not attempt to use any other devices. Never insert or allow metallic objects into your charger or battery pack connections otherwise an electrical failure and hazard will occur.
  • Page 31 Charge the battery pack before operating when it is at medium or low battery charging level. Button Charging procedure 1) Slide the battery pack into the charger base to make connections. 2) Connect the battery charger to the power supply. The indicator light will be green and flash to show that the charging has started.
  • Page 32 To obtain the best life from the battery 1. Never allow the battery to completely discharge before recharging. The battery pack should be placed on the charger whenever the battery pack is noticeably running down or the tool no longer performs a task it previously performed.
  • Page 33 NOTE: The tool does not work with only one battery. NOTE: Pay attention to the position of your fingers when installing the battery as you may unintentionally depress the locking button. Tool / battery protection system The tool is equipped with a tool/battery protection system. This system automatically cuts off power to the motor to extend tool and battery life.
  • Page 34 Press the check button (7) on the machine the capacity indicator (8) shows the remaining battery capacity. Red,Yellow,Green LED on Battery pack over 80% charged Red,Yellow LED on Green LED off Battery pack over 60% charged Red LED on Yellow, Green LED off Battery pack over 30% charged No LED lit Battery is flat and needs to be charged...
  • Page 35 Switch action WARNING: For your safety, this tool is equipped with lock-off switch which prevents the tool from unintended starting. NEVER use the tool if it runs when you simply pull the switch trigger without pressing the lock-off switch. Return the tool to our authorised service center for inspection BEFORE further usage.
  • Page 36 Checking the chain brake CAUTION: Hold the chain saw with both hands when switching it on. Hold the rear handle with your right hand, the front handle with your left. The bar and the chain must not be in contact with any object. CAUTION: Should the saw chain not stop immediately when this test is performed, the saw may not be used under any circumstances.
  • Page 37 Lubrication IMPORTANT: The chain saw is not filled with oil. It is essential to fill with oil before use. Never operate the chain saw without chain oil or at an empty oil tank level, as this will result in extensive damage to the product. NOTE: Chain life and cutting capacity depend on optimum lubrication.
  • Page 38 NOTICE: When filling the chain oil for the first time, or refilling the tank after it has been completely emptied, add oil up to the bottom edge of the filler neck. The oil delivery may otherwise be impaired. NOTICE: Use the saw chain oil exclusively for chain saws or equivalent oil available in the market.
  • Page 39 Bring the bottom edge of the chain saw body into contact with the branch to be cut before switching Otherwise it may cause the guide bar to wobble or kick back, resulting in injury to the operator. Saw the wood to be cut by just moving it down by using the weight of the chain saw. If you cannot cut the timber with a single stroke: Apply light pressure to the handle and continue sawing and draw the chain saw back a little;...
  • Page 40 Bucking 1. Rest the bottom edge of the chain saw body on the wood to be cut. 2. With the saw chain running, saw into the wood while using the rear handle to raise the saw and the front one to guide it. Use the spike bumper as a pivot. 3.
  • Page 41 When you cut wood under tension, cut the pressured side (A) first. Then make the final cut from the tensioned side (B). This prevents the bar from becoming trapped. Limbing CAUTION: Limbing may only be performed by trained persons. A hazard is presented by the risk of kickback.
  • Page 42 Felling CAUTION: Felling work may only be performed by trained persons. The work is hazardous. Observe local regulations if you wish to fell a tree. Felling area 1. Felling area -- Before starting felling work, ensure that: • Only persons involved in the felling operation are in the vicinity; •...
  • Page 43 -- An escape path should be planned and cleared as necessary before cuts are started. The escape path should extend back and diagonally to the rear of the expected line of fall as illustrated in figure. 1. Felling direction 2. Danger zone 3. Escape route When felling trees, follow the procedures below: 1.
  • Page 44 2. Make the back cut a little higher than the base cut of the scarf. The back cut must be exactly horizontal. Leave approximately 1/10 of the trunk diameter between the back cut and the scarf. The wood fibers in the uncut trunk portion act as a hinge. Insert wedges into the back cut in time. WARNING:Do not cut right through the fibers under any circumstances.

  • Page 45: Care And Cleaning

    CARE AND CLEANING CAUTION: Always be sure that the tool is switched off and the battery packs are removed before attempting to perform inspection or maintenance. CAUTION: Always wear gloves when performing any inspection or maintenance. NOTICE: Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result.
  • Page 46 All cutter lengths must be equal. Different cutter lengths prevent the saw chain from running smoothly and may cause the saw chain to break. Do not sharpen the chain when the cutter length has reached 3 mm or shorter. The chain must be replaced with a new one.
  • Page 47 Guide the file as shown in the figure. 1.File 2. Saw chain The file can be guided more easily if a file holder (optional accessory) is used. The file holder has markings for the correct sharpening angle of 30° (align the markings parallel to the saw chain) and limits the depth of penetration (to 4/5 of the file diameter).
  • Page 48 After sharpening the chain, check the height of the depth gauge using the chain gauge tool (optional accessory). Remove any projecting material, however small, with a special flat file (optional accessory). Round off the front of the depth gauge again. Cleaning the guide bar Chips and sawdust will build up in the guide bar groove.
  • Page 49 Cleaning the sprocket cover Chips and saw dust will accumulate inside of the sprocket cover. Remove the sprocket cover and saw chain from the tool then clean the chips and saw dust. Cleaning the oil discharge hole Small dust or particles may build up in the oil discharge hole during operation. The dust particles may impair the oil to flow and cause insufficient lubrication on the whole saw chain.
  • Page 50 Maintenance and storage of chain saw 1) Remove the battery packs • When not in use • Before moving from one place to another • Before servicing • Before changing accessories or attachments, such as saw chain and guard 2) Inspect chain saw before and after each use. Check saw closely if guard or other part has been damaged.
  • Page 51 To ensure long life, prevent damage and ensure the full functioning of the safety features, the following maintenance must be performed regularly. Warranty claims can only be recognised if this work is performed regularly and properly. Failure to perform the prescribed maintenance work can lead to accidents.

  • Page 52: Trouble Shooting

    TROUBLE SHOOTING Use this section to help you to try and solve any problems you may have: PROBLEMS POSSIBLE CAUSES REMIDIES The chain saw does Two battery packs are not installed. lnstall two charged battery packs. not start. Battery problerm (low voltage). Recharge the battery packs.
  • Page 53 Abnormal vibration: Loose guide bar or saw chain. Adjust the guide bar and saw chain Stop the machine tension. immediately! Tool malfunction Ask the authorized service center in your region for repair. NOTE: IF YOU EXPERIENCE A PROBLEM WITH YOUR TOOL, PLEASE DO NOT ATTEMPT TO OPEN OR REPAIR THE TOOL YOURSELF.

  • Page 54: Declaration Of Conformity / Performance

    DECLARATION OF CONFORMITY / PERFORMANCE Product Code: 44892 (RLC40HD-SM) Product Description: Hawksmoor 36V (2 x 18V) 40cm Brushless Cordless Chainsaw 2 x 4.0Ah 1. Toolstation Limited, Express Park, Bristol Road, Bridgwater, Somerset TA6 4RN This declaration of conformity is issued under the sole responsibility of Toolstation 2.

  • Page 55: Environmental Information

    ENVIRONMENTAL INFORMATION The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.

  • Page 56: Guarantee

    GUARANTEE Toolstation products deliver reliable service for normal, household use in domestic settings. All Toolstation products are individually tested before leaving the factory. If you are a consumer and you experience a problem with your Toolstation product, which is found to be defective due to faulty materials or workmanship within the Guarantee Period, this Toolstation Guarantee will cover repair or - at the discretion of Toolstation –...
