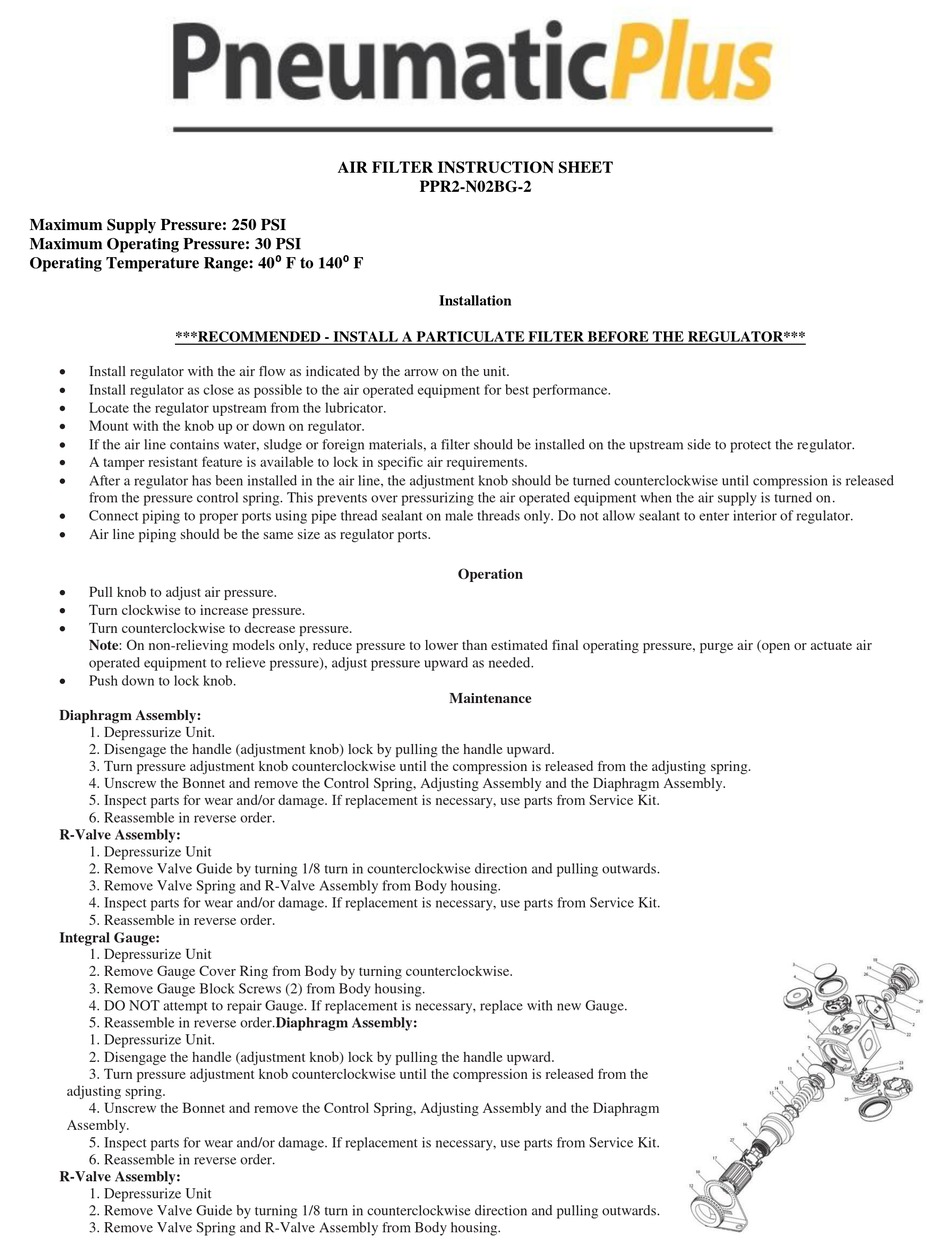

PneumaticPlus PPR2-N02BG-2 Instruction Sheet

Maximum Supply Pressure: 250 PSI
Maximum Operating Pressure: 30 PSI
Operating Temperature Range: 40⁰ F to 140⁰ F
***RECOMMENDED - INSTALL A PARTICULATE FILTER BEFORE THE REGULATOR***

Install regulator with the air flow as indicated by the arrow on the unit.

Install regulator as close as possible to the air operated equipment for best performance.

Locate the regulator upstream from the lubricator.

Mount with the knob up or down on regulator.

If the air line contains water, sludge or foreign materials, a filter should be installed on the upstream side to protect the regulator.

A tamper resistant feature is available to lock in specific air requirements.

After a regulator has been installed in the air line, the adjustment knob should be turned counterclockwise until compression is released
from the pressure control spring. This prevents over pressurizing the air operated equipment when the air supply is turned on.

Connect piping to proper ports using pipe thread sealant on male threads only. Do not allow sealant to enter interior of regulator.

Air line piping should be the same size as regulator ports.

Pull knob to adjust air pressure.

Turn clockwise to increase pressure.

Turn counterclockwise to decrease pressure.
Note: On non-relieving models only, reduce pressure to lower than estimated final operating pressure, purge air (open or actuate air
operated equipment to relieve pressure), adjust pressure upward as needed.

Push down to lock knob.

Diaphragm Assembly:

1. Depressurize Unit.
2. Disengage the handle (adjustment knob) lock by pulling the handle upward.
3. Turn pressure adjustment knob counterclockwise until the compression is released from the adjusting spring.
4. Unscrew the Bonnet and remove the Control Spring, Adjusting Assembly and the Diaphragm Assembly.
5. Inspect parts for wear and/or damage. If replacement is necessary, use parts from Service Kit.
6. Reassemble in reverse order.

R-Valve Assembly:

1. Depressurize Unit
2. Remove Valve Guide by turning 1/8 turn in counterclockwise direction and pulling outwards.
3. Remove Valve Spring and R-Valve Assembly from Body housing.
4. Inspect parts for wear and/or damage. If replacement is necessary, use parts from Service Kit.
5. Reassemble in reverse order.

Integral Gauge:

1. Depressurize Unit
2. Remove Gauge Cover Ring from Body by turning counterclockwise.
3. Remove Gauge Block Screws (2) from Body housing.
4. DO NOT attempt to repair Gauge. If replacement is necessary, replace with new Gauge.
5. Reassemble in reverse order.Diaphragm Assembly:
1. Depressurize Unit.
2. Disengage the handle (adjustment knob) lock by pulling the handle upward.
3. Turn pressure adjustment knob counterclockwise until the compression is released from the
adjusting spring.
4. Unscrew the Bonnet and remove the Control Spring, Adjusting Assembly and the Diaphragm
Assembly.
5. Inspect parts for wear and/or damage. If replacement is necessary, use parts from Service Kit.
6. Reassemble in reverse order.
R-Valve Assembly:
1. Depressurize Unit
2. Remove Valve Guide by turning 1/8 turn in counterclockwise direction and pulling outwards.
3. Remove Valve Spring and R-Valve Assembly from Body housing.
AIR FILTER INSTRUCTION SHEET
PPR2-N02BG-2

Installation

Operation

Maintenance
