OPERA REEVO
6
5
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
Serial N.
POWER
ON
9
OFF
POWER SUPPLY SPECIFICATIONS (POWER ABSORPTION)
Draw at 1/8 of full power in average use conditions (*): 1.6 A (220-240V~) - 2.6 A (100-120V~)
Draw at 1/3 of full power in average use conditions (**): 3.1 A (220-240V~) - 5.2 A (100-120V~)
Power absorption with speaker turned on without signal (idle): 31 W (220-240V~) - 31 W (100-120V~)
*INSTALLER NOTES: The values refer to 1/8 of full power, in average operating conditions (music program with infrequent or no clipping). It is recommended to consi-
der them the minimum sizing values, for any type of configuration.
**INSTALLER NOTES: The values refer to 1/3 of full power, in heavy operating conditions (music program with frequent clipping or activation of the limiter. We recom-
mend sizing according to these values in case of professional installations and tours.
HANDLES
OPERA REEVO are equipped with two handles for
easy transport (A).
QUICK START USER MANUAL SECTION 1
1
AEB INDUSTRIALE S.R.L.
Via Brodolini, 8
Località Crespellano
40053 VALSAMOGGIA (BO)
ITALY
CAUTION
RISK OF ELECTRICAL SHOCK
DO NOT OPEN
ATTENTION
RISQUE DE CHOCH ELECTRIQUE
NE PAS OUVRIR
220-240V~ 50-60Hz 1.3A
(T3.15 L 250V~)
110-120V~ 50-60Hz 2.6A
(T6.3A L 250V~)
Internal voltage setup
(REPLACE FUSE WITH SAME RATINGS)
(REMPLACER LE FUSIBLE AVEC LE MÊME TYPE)
A
B
A

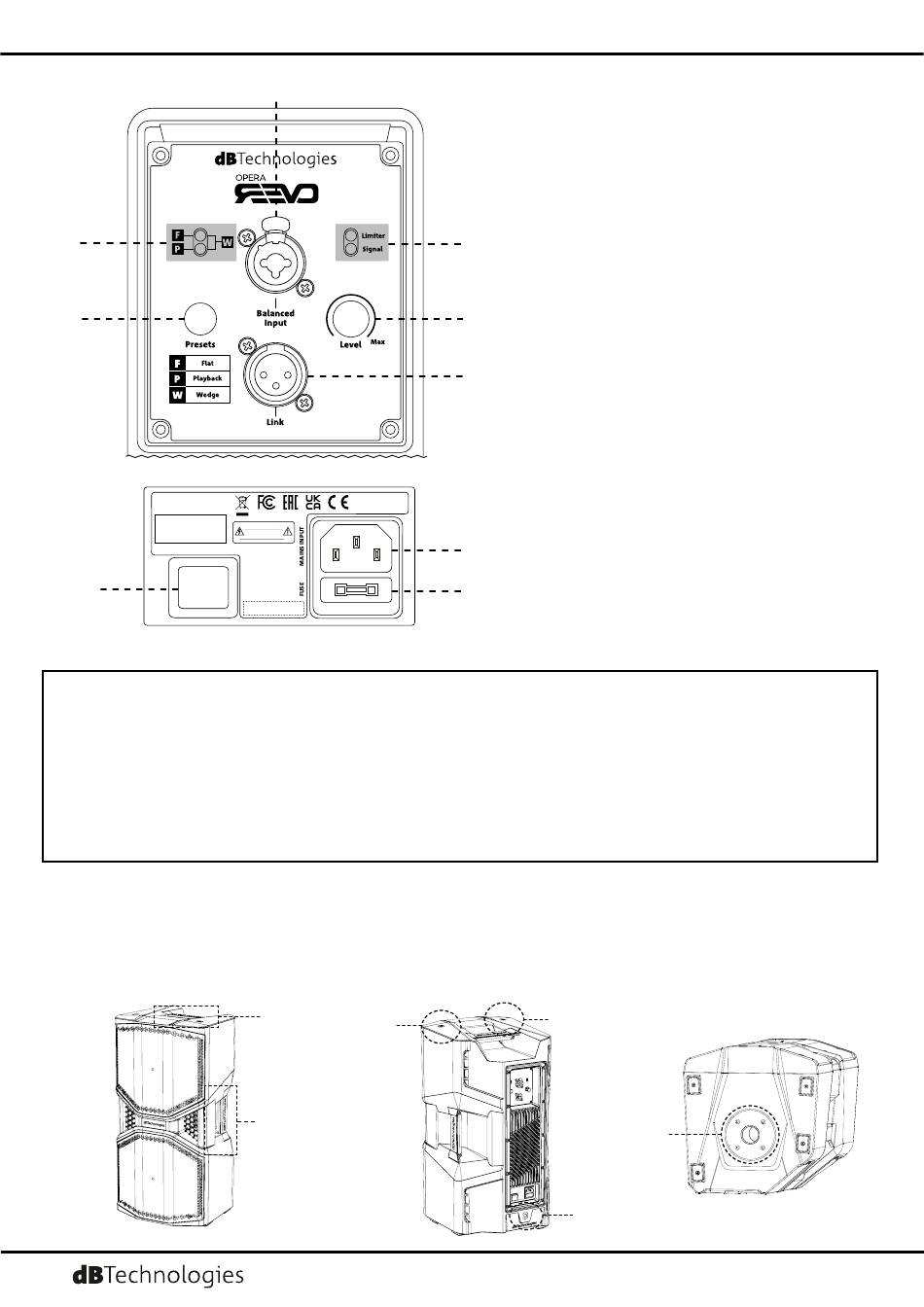

I/O and Control panel
The amplifier of OPERA REEVO is controlled by a state-
of-the-art DSP. All the connections and controls are in
the amplifier control panel.
1- Balanced audio input
2 2- Status LEDs (Limiter, Signal)
3- Level knob
4- Link output
5- Presets button
6- Presets LED
3
7- Mains input
8- Mains fuse
9- On/Off switch
4
Setup, turn on and I/O settings
Connect first the audio source to the Balanced Input
(1) using an XLR or jack TRS balanced cable. Use Link
Output (4) to connect other speakers in daisy chain.
Connect the included VDE mains cable to the mains in-
put (7) and push the On/Off switch (9) to power up the
speaker. Adjust the audio level and choose the equali-
zation preset (5) depending on the application.
7
8
MECHANICAL FIXING POINT
OPERA REEVO can be installed in different configurations. On the
top and on the back (B) the user can find mechanical fixing points
for flyable use; the loudspeakers are equipped with a pole mount
on the bottom (C).
B
B
2 info@dbtechnologies-aeb.com
420120426Q REV1.0
C
