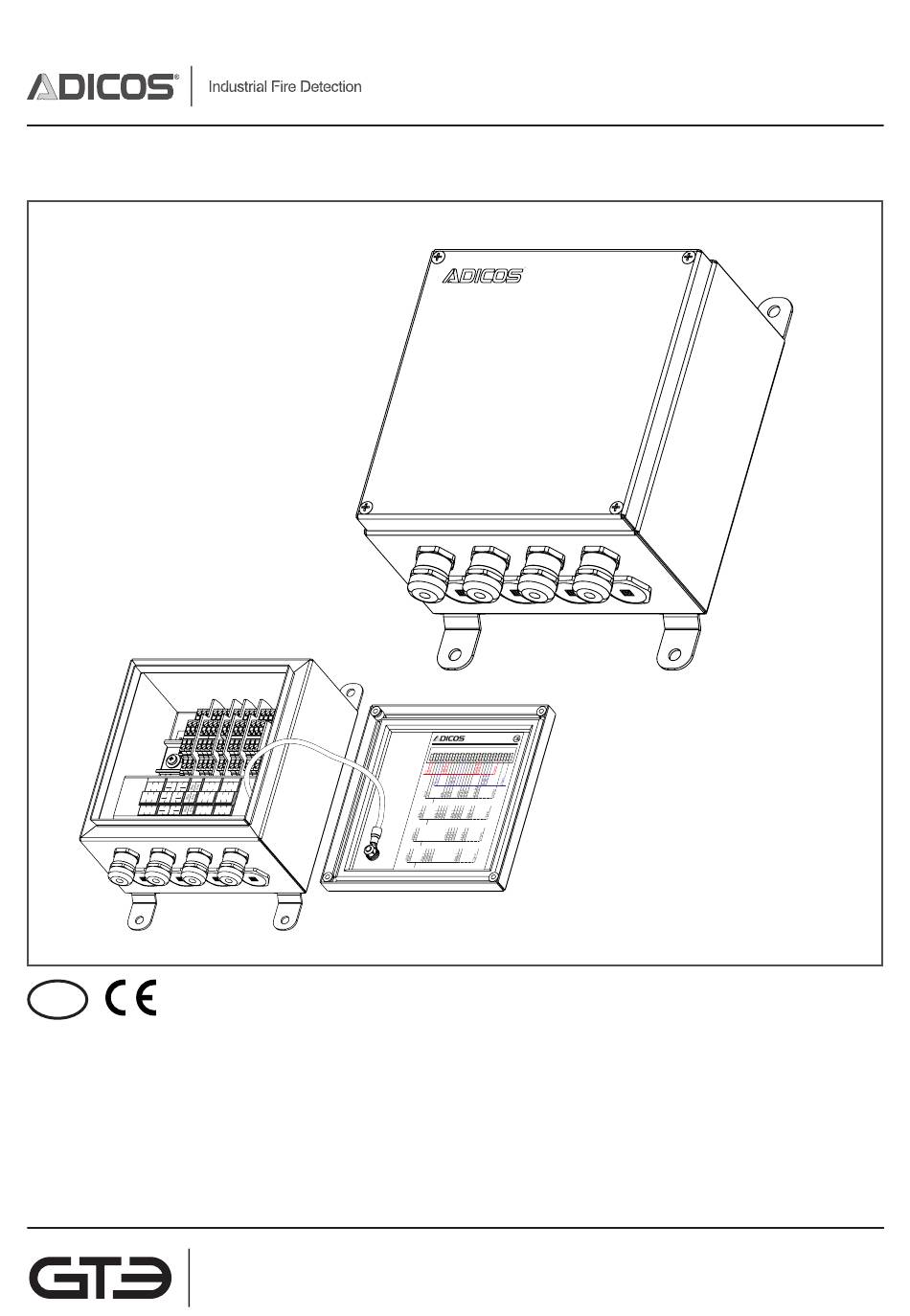

  • Page 1 ADICOS X20-Detector Cable (12-PIN) ADICOS X20-Detector Cable (8-PIN / RELAY) ADICOS X20-Detector Cable (8-PIN / LOOP) IP66 Operating Manual Junction Box GTE Industrieelektronik GmbH | Helmholtzstr. 21, 38 – 40 41747 Viersen | Germany | +49 2162 3703-0 | info@gte.de...
  • Page 2 41747 Viersen GERMANY Support hotline: +49 2162 3703-0 E-Mail: support.adicos@gte.de © 2023 GTE Industrieelektronik GmbH – This document and all figures contained may not be copied, changed, or distributed without explicit approval by the manufacturer! Subject to technical changes! ADICOS and GSME are registered trademarks of GTE Industrieelektronik GmbH.
  • Page 3 ADICOS system ensures reliable early detection of embers and smoldering fires even in ad- verse environments. ADICOS AAB-L serve as wiring aids for ADICOS detectors. They are are large, high-quality surface-mounted junction boxes with internally pre-connected double-pole terminals, which enable the electrical connection of ADICOS detectors of all models to the special fire alarm system in a very simple way.

  • Page 4: Table Of Contents

    ID Plate ............19 430-2410-004-EN-12 ADICOS AAB-L...

  • Page 5: About This Manual

    The following types of notes are used through this manual: DANGER! This combination of symbol and signal word indicates an immediately danger- ous situation which could lead to death or severe injuries if it is not avoided. ADICOS AAB-L 430-2410-004-EN-12...

  • Page 6: Abbreviations

    • Read the entire manual and follow the instructions! Intended Use ADICOS AAB-L are junction boxes for the electrical connection of ADICOS detectors with the fire alarm cable of ADICOS systems. They additionally enable feeding-in an external voltage supply using the ADICOS power supply NT V40-A3. In this context, the operating parameters described in Chap.

  • Page 7: Standards And Regulations

    Fire detection and fire alarm systems - design and operation Personnel Qualification Any work on ADICOS AAB-L may only be performed by qualified personnel. Persons, who can perform work on electrical systems and recognize possible dangers based on their profession- al education, knowledge, and experience as well as knowledge of the applicable provisions, are considered qualified personnel.

  • Page 8: Accessories And Spare Parts

    Scope of Delivery The following components are included in the scope of delivery of the AAB-L: Anzahl Beschreibung ADICOS AAB-L with 4 cable glands M20 and 4 dummy cable glands M25 Cable glands M25 Blind glands M20 430-2410-004-EN-12 ADICOS AAB-L...

  • Page 9: Structure

    Enclosure screws (4x)  Wiring duct cover  Enclosure base  M20 cable glands with locknuts (4x)  Mounting brackets (4x)  M25 blind glands with locknuts (4x)  Wiring duct with breakout ribs  Preconnected double deck terminals ADICOS AAB-L 430-2410-004-EN-12...

  • Page 10: Connections

    1 2 3 10 11 12 13 14 15 M - BUS POWER LOOP RELAY SHIELD M - BusA +24V SHIELD LOOP LOOP M - BusB LOOP LOOP 11 12 14 15 M - BusA +24V SHIELD LOOP LOOP 430-2410-004-EN-12 ADICOS AAB-L...
  • Page 11 10– 12 A + D M-BUS A ADICOS M-Bus 10– 12 B + C M-BUS B ADICOS M-Bus 13– 15 A + D SHIELD Cable shielding / PE of external power supply 13– 15 B + C ADICOS AAB-L 430-2410-004-EN-12...

  • Page 12: Installation

    Press in the plugs Insert sufficiently dimensioned mounting screws through mounting brackets in the enclosure base (4x) Place precisely the enclosure base with the screws onto the mounting holes with wall plugs Tighten the screws (4x) 8,54 430-2410-004-EN-12 ADICOS AAB-L...

  • Page 13: Wiring

    Wiring WARNING! Malfunctioning and failures of the detector system! Incorrect installation of the ADICOS AAB-L can cause malfunctioning, leading to failure of the fire detection system. • Wiring may only be performed by specialist personnel! (–› Chap. 2.3, Per- sonnel Qualification) •...
  • Page 14 INSTALLATION ADICOS M-BM and external power supply ADICOS AAB-L/-XL ADICOS M-BUSMASTER M-Bus M-Bus next ADICOS AAB ADICOS Power supply NT V40-A3 +40 V ADICOS connection cable / detector 430-2410-004-EN-12 ADICOS AAB-L...
  • Page 15 Fire Detector Loop with FDnet/LSNi (internal fire panel interface) Tips and recommendations For integration in BOSCH or SIEMENS fire alarm systems, ADICOS detectors must be equipped with an interface module by the manufacturer! ADICOS AAB-L/-XL Non-ADICOS re alarm panel next...
  • Page 16 External interface module Non-ADICOS re alarm bus next interface module LOOP B LOOP B LOOP B LOOP A LOOP A LOOP A ADICOS AAB-L/-XL ADICOS connection cable / detector Primary cable shielding ADICOS AAB-L/-XL Primary cable Primary cable 430-2410-004-EN-12 ADICOS AAB-L...

  • Page 17: Commissioning

    The ADICOS-AAB-L is a passive component. Its operating state depends on the superordinate central unit. Maintenance In genereal the ADICOS AAB-L does not require special maintenance. Disposal Return the product to the manufacturer after the end of the useful life. The manufacturer ensures environmental- friendly disposal of all components.

  • Page 18: 10 Technical Data

    Cable diameter M20 glands 7 ... 13 Cable diameter M25 glands 9 ... 17 Max. cable cross-section mm² Nominal cross-section mm² Environmental conditions Permissible environ- °C -10 ... +50 ment temperature Relative humidity ≤ 95 (non-condensing) Installation environment vibration-free 430-2410-004-EN-12 ADICOS AAB-L...

  • Page 19: 10.1 Id Plate

    Device SERIAL Serial number Year of production model (variable) (variable) ART-Nr Article number TEMP Ambient Degree of (variable) temperature protection COM- Commu- Voltage range / Internal fusing nication maximum power (Short-circuit number consumption current) (variabel) CE marking ADICOS AAB-L 430-2410-004-EN-12...
