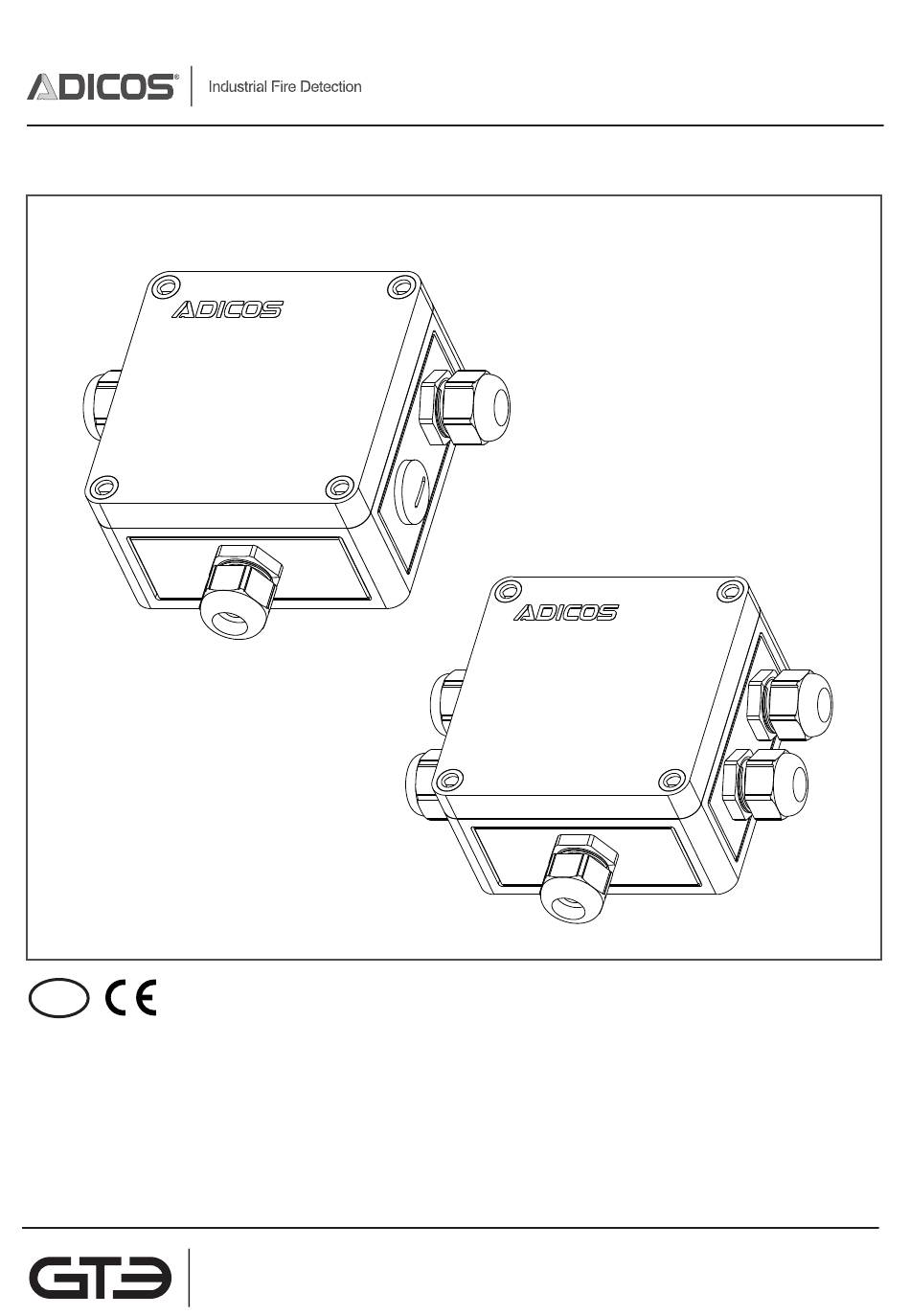

- Page 1 IP65 Operating Manual Junction Box GTE Industrieelektronik GmbH | Helmholtzstr. 21, 38 – 40 41747 Viersen | Germany | +49 2162 3703-0 | info@gte.de...
- Page 2 41747 Viersen GERMANY Support hotline: +49 2162 3703-0 E-Mail: support.adicos@gte.de © 2023 GTE Industrieelektronik GmbH – This document and all figures contained may not be copied, changed, or distributed without explicit approval by the manufacturer! Subject to technical changes! ADICOS and GSME are registered trademarks of GTE Industrieelektronik GmbH.
- Page 3 ADICOS system ensures reliable early detection of embers and smoldering fires even in ad- verse environments. ADICOS AAB are our standard junction boxes and serve as wiring aids for ADICOS detectors. They are surface-mounted junction boxes with an internally connected printed circuit board and enable the electrical connection of ADICOS detectors of all models to the special fire alarm system in a very simple way.
-
Page 4: Table Of Contents
ID Plate ............22 430-2410-001-EN-13 ADICOS AAB... -
Page 5: About This Manual
The following types of notes are used through this manual: DANGER! This combination of symbol and signal word indicates an immediately danger- ous situation which could lead to death or severe injuries if it is not avoided. ADICOS AAB 430-2410-001-EN-13... -
Page 6: Abbreviations
• Read the entire manual and follow the instructions! Intended Use ADICOS AAB are junction boxes for the electrical connection of ADICOS detectors with the fire alarm cable of ADICOS systems. They additionally enable feeding-in an external voltage supply using the ADICOS power supply NT V40-A3. In this context, the operating parameters described in Chap. -
Page 7: Standards And Regulations
Fire detection and fire alarm systems - design and operation Personnel Qualification Any work on ADICOS AAB may only be performed by qualified personnel. Persons, who can perform work on electrical systems and recognize possible dangers based on their profession- al education, knowledge, and experience as well as knowledge of the applicable provisions, are considered qualified personnel. -
Page 8: Scope Of Delivery
SCOPE OF DELIVERY Scope of Delivery The following components are included in the scope of delivery of the ADICOS AAB: Quantity Description ADICOS AAB with 3 cable glands and 2 dummy cable glands M20* cable glands * Are located inside the enclosure at the time of delivery... -
Page 9: Structure
STRUCTURE Structure Overview Description Enclosure screws (4x) Enclosure cover Enclosure base AAB circuit board with connection terminals Blind cable glands (2x) Cable glands (3x) ADICOS AAB 430-2410-001-EN-13... -
Page 10: Connections
LOOP B External fire alarm LOOP B in SIEMENS FDnet-A (–) BOSCH LSN b1 in LOOP A External fire alarm LOOP A in SIEMENS FDnet + BOSCH LSN a in MBus A ADICOS M-Bus MBus B ADICOS M-Bus 430-2410-001-EN-13 ADICOS AAB... - Page 11 Normally closed contact, fault (green) Normally open contact, alarm (white) Normally closed contact, fault (brown) Power supply Coupling of external power supply External power supply 0 V +24V External power supply +24 V DC Protective conductor Protective conductor ADICOS AAB 430-2410-001-EN-13...
-
Page 12: Cable Glands
(ADICOS M-Bus / power supply / limit value- detection line) FAS loop External power supply (optional) (External fire alarm LOOP) (optional) FAS loop (External fire alarm LOOP) (optional) ADICOS connection cable for ADICOS detector 430-2410-001-EN-13 ADICOS AAB... -
Page 13: Display Elements
The installation floor must be sufficiently firm and as vibration-free as possible. ■ The installation environment must meet the climate conditions specified in the ■ technical data. Install the ADICOS AAB in close proximity to the connected detector and well accessibly. ■ Mounting Opening the Enclosure Cover ►... - Page 14 INSTALLATION Mounting the ADICOS AAB to a wall Depending on the underground, drill mounting holes for sufficiently dimensioned screws and/or wall plugs (4x) (see drilling plan) Press in wall plugs Open enclosure cover Insert sufficiently dimensioned mounting screws through the tightening channels of the enclosure screws in the enclosure Ø...
-
Page 15: Wiring
• Only use suitable fire alarm cables for the ADICOS primary line and FSA loop! The wiring plan of the ADICOS AAB varies depending on system configuration and topology. The following procedure applies for all wiring variants. Wiring the ADICOS AAB... - Page 16 M-Bus A LOOP B LOOP B M-Bus B to next LOOP A LOOP A ADICOS-AAB M-Bus A M-Bus A M-Bus B M-Bus B ADICOS +24 V power supply unit NT V40-A3 +40 V ADICOS connection cable for detector 430-2410-001-EN-13 ADICOS AAB...
- Page 17 X6ein (Al) X6ein (Al) ADICOS-AAB LOOP B LOOP B LOOP B LOOP A LOOP A LOOP A M-Bus A M-Bus A M-Bus B M-Bus B +24 V ADICOS connection cable / detector Detector with integrated FDnet- or LSN-Module ADICOS AAB 430-2410-001-EN-13...
- Page 18 +24 V X7 (Stoer) X7 (Stoer) X6aus (Al) X6aus (Al) X6ein (Al) X6ein (Al) LOOP B LOOP B LOOP A LOOP A M-Bus A M-Bus A M-Bus B M-Bus B +24 V ADICOS connection cable / detector 430-2410-001-EN-13 ADICOS AAB...
-
Page 19: Commissioning
• Commissioning may be performed only by properly trained personnel. (See Chap. 2.3 Personnel Qualification) Tips and recommendations The ADICOS AAB is a passive component. Separate commissioning is not required. ADICOS system commissioning is to be performed ►... -
Page 20: Operation
In genereal the ADICOS AAB does not require special maintenance. Replacing the Fuse The ADICOS AAB features an internal fuse to prevent system destruction and/or ignition caused by too high currents in the case of electrical short circuits. The fuse is located in the upper left area of the circuit board. -
Page 21: Technical Data
Electrical properties Voltage range 20 ... 40 Max. power loss (LED) Internal fuse A (sb) Max. cable cross-section mm² Environmental conditions Permissible environ- °C –10 ... +50 ment temperature Relative humidity ≤ 95 (non-condensing) Installation environment vibration-free ADICOS AAB 430-2410-001-EN-13... -
Page 22: Id Plate
Year of production model (variable) (variable) ART-Nr: Article number TEMP: Ambient Degree of (variable) temperature protection COM- Commu- /VA: Voltage range / Internal fusing nication maximum power (Short-circuit number consumption current) (variabel) CE marking Information on explosion protection 430-2410-001-EN-13 ADICOS AAB... - Page 23 ADICOS AAB 430-2410-001-EN-13...
