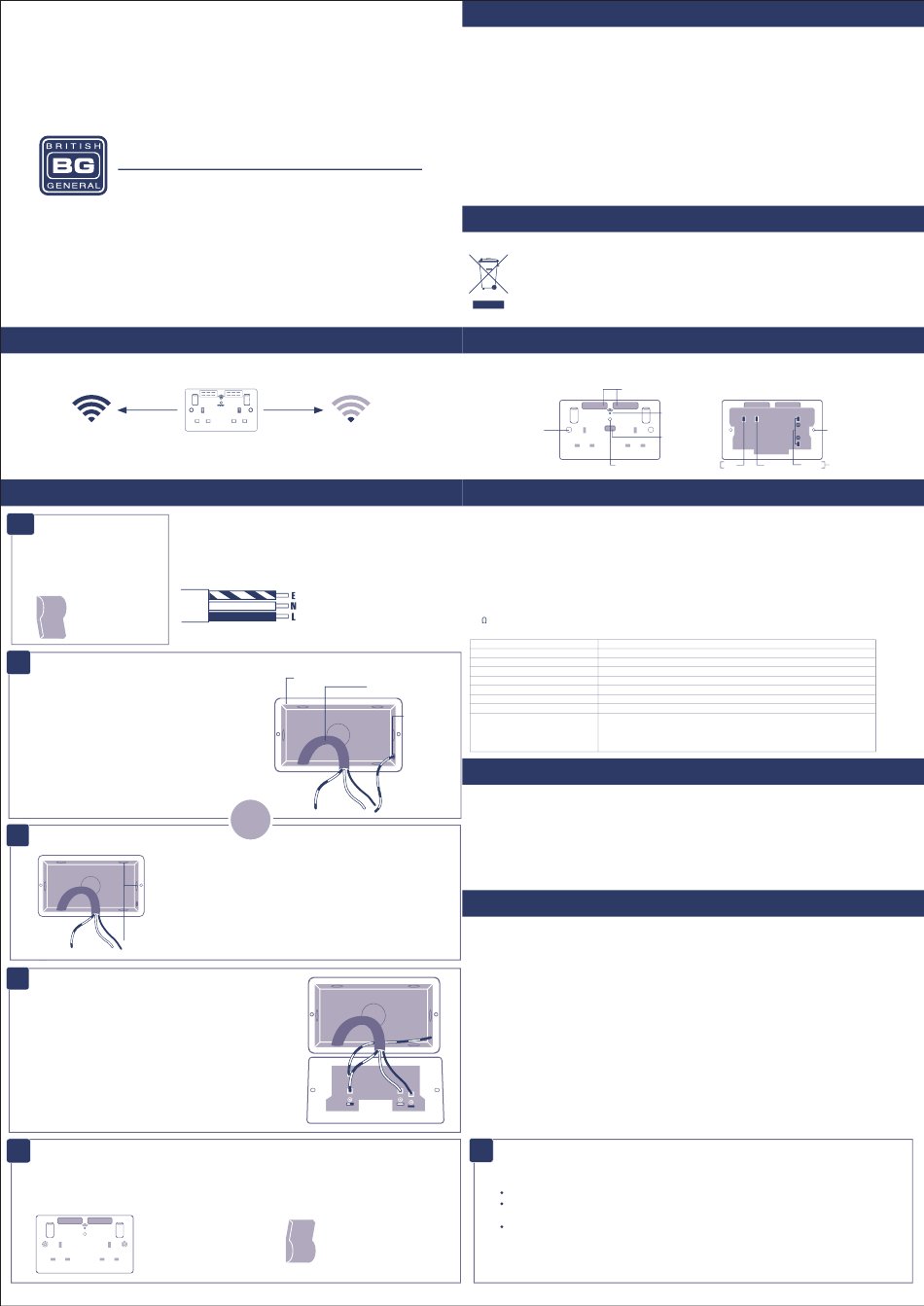

British General N300 Instructions

Wiring Accessories
Wi-Fi Socket Range Extender, N300
Positioning Your Wi-Fi Socket
Your Wi-Fi socket should be positioned half way between your router and the Wi-Fi dead-zone use the signal
strength indicator on your mobile device to determine the mid-signal point.
Choose a location away from Bluetooth devices and other household electronics (cordless phone,
microwave oven, baby monitor, etc.) to minimise signal interference.
Wiring Instructions
Wire Identification – Twin & Earth Cable
1
Power off
Note - As from 1st April 2004 new colour codes for hard wire
installations were introduced.
BEFORE COMMENCING
EARTH = Green/Yellow Sleeving
WORK ALWAYS ISOLATE
NEUTRAL = Black (pre Apr 04) / Blue (after Apr 04)
THE POWER AT THE
LIVE = Red (pre Apr 04) / Brown (after Apr 04)
CONSUMER UNIT / FUSE BOX.
OFF
2a
Replacing an existing socket (removal)
1. Unscrew the socket from the wall/mounting box.
2. Note the cable connections: There will generally be
three different wiring configurations, this illustration
shows a single wire of each colour connected to each
terminal (there could be two or three wires of each
colour connected to each terminal) + an additional
connection between the mounting box earth terminal
and the socket earth terminal.
3. Unscrew each terminal to release the wires.
2b
New installation
1. Install the mounting box (metal or patress) for either flush or
surface mounting, ensuring appropriate size of product. (mounting box
to be purchased separately)
2. Select the most suitable entry point of the mounting box (knock-out)
and route the supply cable through.
3. Cables should be prepared so a sufficient conductor length reaches
the terminals. Strip the ends of the individual conductors leaving an
adequate length bare to enter terminals.
KNOCK-OUTS
3
Wire up your socket
1. Line up the new socket to the mounting box and take note of
where each terminal is located.
2. Connect each wire to the matching terminal. (refer to key in
step 2)
An earth connection should always be made between the
mounting box earth terminal and the socket earth terminal.
Make sure no copper wire is exposed & that only the bare end
enters the terminal.
3. Tighten terminal screws securely. (do not over tighten)
4
Complete the installation
arefully position the accessory into the mounting box,
1. C
ensuring that no wires are trapped between the plate and
the wall, and secure with screws (do not over tighten).
Then set screw covers in place (optional).
WIFIIL/H
MOUNTING BOX
FROM SUPPLY
MOUNTING
BOX
EARTH
TERMINAL
OR
EARTH NEUTRAL
2. Once installation has been completed
correctly, replace the fuse for the
circuit, switch the power back on at the
consumer unit and test.
ON
For your safety, this product must be installed in accordance with local Building Regulations. If in any doubt,
or where required by the law, consult a competent person who is registered with an electrical
self-certification scheme. Further information is available online or from your Local Authority. INDOOR USE
ONLY.
Please read carefully and use in accordance with these safety wiring instructions. Before commencing any
electrical work ensure the supply is switched off at the mains. Either by switching off the consumer unit or
by removing the appropriate fuse. Wiring should be in accordance with the latest edition of IET regulations
(BS 7671). To prevent a fire hazard always use a cable of the correct rating, size & type for the application.
Any bare earth wires must be covered with the appropriate green/yellow sleeving. Any decorative products MUST
have an earth connection between the front-plate and back box.
Warning do not exceed the load rating of this device as stated on rear of the product.
If in doubt always consult a competent electrician.
MAINTENANCE
To keep the finish of this product, wipe over with a soft dry cloth periodically.
This symbol is known as the "Crossed-out Wheelie Bin Symbol". When this symbol is marked
on a product or battery, it means that it should not be disposed of with your general household
waste. Some chemicals contained within electrical/electronic products or batteries can be
harmful to health and the environment. Only dispose of electrical/electronic/battery items in
separate collection schemes, which cater for the recovery and recycling of materials contained
within. Your co-operation is vital to ensure the success of these schemes and for the
protection of the environment.
Wi-Fi Socket Range Extender
SCREW
COVER
2.1 A USB port for charging mobile devices such as mobile phones, MP3 players and tablets.
2.1A 5V output from the USB output
• 2.1 A is sufficient power output to charge the majority of USB products.
• The total output current achieved is dictated by specific device being charged and other external factors,
such as the quality of charging cable being used.
• Overload protection for connected devices.
Low energy stand-by mode
• When not in use the USB socket is in a low energy stand-by mode.
The USB circuits on this socket are designed to withstand insulation resistance tests at 500V.A reading of
0.4 +/-0.05 is typically caused by the USB socket
Note - The front surface of this product may become warm in use. This is normal and not cause for concern.
USB Output
Input
Average active efficiency
Efficiency at low load(10%)
No load power consumption
USB Port number
USB PCBA Model name
Manufacturers model identifier
Note
Additional Advice for Decorative Products
Fixing method varies depending on which product range is supplied. Always ensure wall surface is
reasonably flat and smooth, with no bumps or projections. Metal frontplates WITH screw fixing holes, fix the
unit to the back box using two fixing screws supplied. All Decorative products MUST have an earth
connection between the frontplate and back box. Frontplates WITHOUT screw fixing holes. These products
comprise main unit with integral gasket, and frontplate as separate item. Fix unit to back box using two
fixing screws supplied. Clip frontplate onto main assembly, ensuring screwdriver notch is located bottom
right hand corner.
To remove plate, place medium size flat bladed screwdriver in notch and lever off against gasket.
To maintain the high quality appearance of decorative finish switches and sockets, BG Electrical recommend
the use of a soft cloth periodically to clean the front face. When installing a decorative product please ensure
that the wall is decorated, finished and free of moisture prior to installation.
BG Electrical recommends avoiding using, but not restricted to, these substances from becoming in contact
with the decorative metal front-plates when cleaning or decorating:
• Adhesive tape, including low tack masking tape
• Solvents
• White spirit
• Multi surface cleaners
• Industrial multipurpose cleaning wipes
• Wet wipes
Using items like those listed above may cause a degrading effect to the front-plates lacquer/plated finish,
although the function will remain unaffected.
LIVE
5
Insulation testing
This socket outlet is designed to withstand insulation resistance testing at 500V as defined by
BS1363-2.
Perform insulation test between Line & Neutral at 250V.
500V test may be performed between Line & Earth, Neutral & Earth.
Or,
Disconnect all Neutral connection in the socket and connect into terminal block before
replacing the socket prior to test.
Safety Warning
Environmental Protection
Product Overview
Rear of Socket
WI-FI SIGNAL ANTENNAS
LED WI-FI L N N
INDICATOR
2.1A
USB CHARGING
SOCKET
LIVE NEUTRAL
WPS/RST BUTTON
USB Charger Information
5.0V DC 2.1A, 10.5W MAX
220-250V~ 50/60Hz
>79.04%
>70.08%
<0.10W
1 Port
CH-Wi-Fi-Power-U
x22UWR*
x = range, 4,8, 9,Ez,Fz,PCDy,Sz,Tz,Nz,Cz,MC5z
* = insert colour, 'W', 'B' or 'G';
y = PCD/PC finish 'WH','CL','BS','PC','BC','AB','SB','MB','MG','CH','BN';
z = Metal finish 'BS', 'PC', 'BN','AB', 'PR', 'SL'.
Care
SCREW
HOLES
EARTH TERMINALS
