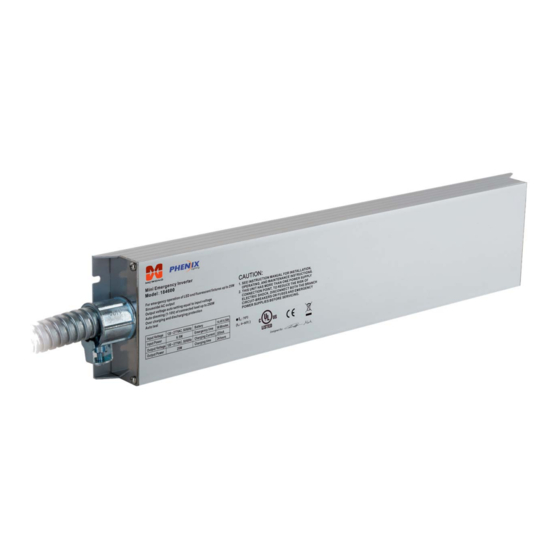

MINI INVERTER
PURE SINUSOIDAL AC OUTPUT
OUTPUT VOLTAGE AUTO SETTING EQUAL TO INPUT VOLTAGE
FOR CONNECTED LOAD UP TO 120W (~30% OF RATED LUMINAIRE POWER)
LEM-INV-036-U-V1
McWong International, Inc.
1921 Arena Boulevard, Sacramento, California 95834
Tel: (916) 371-8080 Fax: (916) 371-6666
1. Slim Aluminum housing
2. For emergency operation of LED and fluorescent
fixtures up to 36W
3. Pure sinusoidal AC output
4. Output voltage auto setting equal to input voltage
5. Total dimmable power up to 120W
6. Over charging and discharging protection
7. Auto Test
8. Suitable for indoor, dry and damp applications
9. Factory or field installation
Email: support@mcwonginc.com
FEATURES
1/6
Web: www.mcwonginc.com
Advertisement
Table of Contents
Related Manuals for Phenix McWong LEM-INV-036-U-V1
Summary of Contents for Phenix McWong LEM-INV-036-U-V1
- Page 1 MINI INVERTER PURE SINUSOIDAL AC OUTPUT OUTPUT VOLTAGE AUTO SETTING EQUAL TO INPUT VOLTAGE FOR CONNECTED LOAD UP TO 120W (~30% OF RATED LUMINAIRE POWER) LEM-INV-036-U-V1 FEATURES 1. Slim Aluminum housing 2. For emergency operation of LED and fluorescent fixtures up to 36W 3.
- Page 2 CHARACTERISTICS Type LEM-INV-036-U-V1 For emergency operation of LED and fluorescent fixtures up to 36W Lamp type Rated voltage 120-277VAC 50/60Hz Rated current 0.06A (Max.) Rated power 7.2W Power Factor >0.5 120-277VAC 50/60Hz Output voltage Output current 0.3A (Max.) Output power Ta: 10-55℃...
- Page 3 DIMENSION LEM-INV-036-U-V1 Item No. mm [inch] mm [inch] mm [inch] mm [inch] LEM-INV-036-U-V1 344 [13.54] 336 [13.23] 82 [3.23] 30 [1.18] Notes: 1．Dimension unit: mm [inch] 2．Dimension tolerance: +/-1[0.04] McWong International, Inc. 1921 Arena Boulevard, Sacramento, California 95834 Web: www.mcwonginc.com Tel: (916) 371-8080 Fax: (916) 371-6666 Email: support@mcwonginc.com...
- Page 4 WIRING DIAGRAM CAUTION: DO NOT MATE UNIT CONNECTOR UNTIL INSTALLATION IS COMPLETE AND AC POWER IS SUPPLIED. 1. The LEM-INV-036-U-V1 requires an unswitched AC power supply of 120-277 volt, 50/60Hz. 2. Refer to the wiring diagrams below. Make connections in the following order ①②③④⑤⑥⑦ 3.
- Page 5 OPERATION/TESTING/MAINTENANCE OPERATION When AC power is applied, the LED test switch is illuminated, indicating that the batteries are being charged. When AC power fails, the LEM-INV-036-U-V1 automatically switches to emergency power, operating the lighting load at approximately 30% of rated luminaire power (max. 120W) using Power Share Technology. The LEM-INV-036-U-V1 can also be used as a stand-alone 36 W inverter when used with lighting loads less than or equal to 36 watts.
- Page 6 OPERATION/TESTING/MAINTENANCE LED TEST SWITCH (LTS) CONDITION* Slow Flash (once per 2 seconds): Normal Charging On: Battery Fully Charged - Normal Condition Off: Power Failure Gradual Change: In Testing Mode Rapid Flash (once per second): Abnormal Condition - Corrective Action Required POWER SHARE TECHNOLOGY The LEM-INV-036-U-V1 utilizes circuit design which enables sharing of power to allow single or multiple 0-10 Vdc controlled luminaires (up to 120 W combined normal luminaire power) to automatically adjust and share...
