184601/2
INSTRUCTION MANUAL
EMERGENCY POWER E QUIPMENT

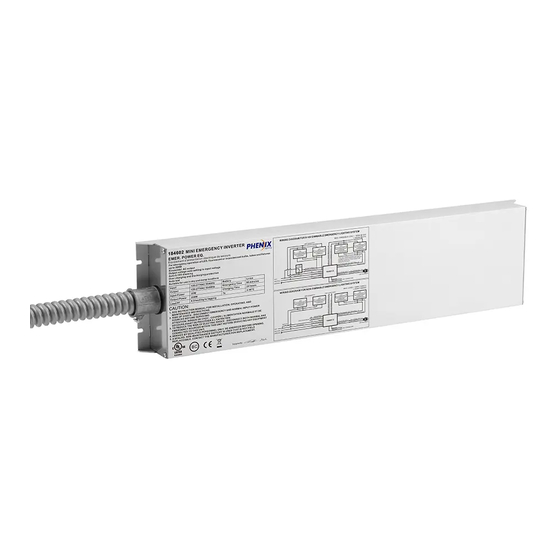

MINI EMERGENCY INVERTER
PURE SINUSOIDAL AC OUTPUT
OUTPUT VOLTAGE AUTO SETTING TO INPUT VOLTAGE
PATENTED APD TECHNOLOGY - AUTO PRESET DIMMING THE
CONNECTED LOAD IN EMERGENCY MODE
AUTO DIMMING (0-10V) OF CONNECTED LOAD UP TO 900W
IMPORTANT SAFEGUARDS
WHEN USING ELECTRICAL EQUIPMENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. To prevent electric shock, switch off the mains power supply until installation is complete and AC
input power is supplied to this product.
2. This product requires an unswitched AC power supply of 120-277V, 50/60Hz.
3. Make sure all connections are in accordance with the National or Canadian Electrical code and
any local regulations.
4. To reduce the risk of electrical shock, disconnect both normal power, emergency power supplies
and unit connector of this product before servicing.
5. For emergency operation of LED, incandescent, fluorescent fixtures and screw-base lamps.
6. The product is UL Listed for field installation, and use with grounded, Listed, Wet location rated
fixtures and the case should be grounded.
7. Use this product in 0°C minimum, 50°C maximum ambient temperatures (Ta).
8. This product is suitable for use in dry or damp locations. Do not use outdoors. Do not mount
it near gas, heaters, air outlets or other hazardous locations.
9. Do not attempt to service the batteries. A sealed, non-maintenance battery is used that is not
field replaceable. Contact the manufacturer for information or service.
10. The use of accessory equipment not recommended by the manufacturer may cause an unsafe
condition and void warranty.
11. Do not use this product for other than intended use.
12. Installation and service should be performed by qualified service personnel.
13. This product should be mounted in locations and at heights where it will not be subjected to
tampering by unauthorized personnel.
THIS PRODUCT CONTAINS A RECHARGEABLE LI-ION BATTERY.
THE BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY.
Li-ion
WWW.PHENIXLIGHTING.COM
SAVE THESE INSTRUCTIONS
7A22
Advertisement
Related Manuals for Phenix 184601
Summary of Contents for Phenix 184601
- Page 1 184601/2 INSTRUCTION MANUAL 7A22 EMERGENCY POWER E QUIPMENT MINI EMERGENCY INVERTER PURE SINUSOIDAL AC OUTPUT OUTPUT VOLTAGE AUTO SETTING TO INPUT VOLTAGE PATENTED APD TECHNOLOGY - AUTO PRESET DIMMING THE CONNECTED LOAD IN EMERGENCY MODE AUTO DIMMING (0-10V) OF CONNECTED LOAD UP TO 900W...
- Page 2 100W 200W 277V/60Hz 277V/60Hz 2. INSTALLING THE 184601/2 The 184601/2 can be mounted inside or outside (nearby or on top of) the luminaire. INSIDE THE LUMINAIRE OUTSIDE THE LUMINAIRE OUTSIDE THE LUMINAIRE One 7/8" (22mm) hole for conduit connector for 184601/2 LED test switch 3.
- Page 3 CAUTION: DO NOT MATE UNIT CONNECTOR UNTIL INSTALLATION IS COMPLETE AND AC POWER IS SUPPLIED. 1. The 184601/2 requires an unswitched AC power supply of 120-277 volt, 50/60Hz. 2. Refer to the wiring diagrams below. Make connections in the following order 1 2 3 4 5 6 7 3.
- Page 4 The minimum emergency operation time is 90 minutes. A short term discharge test may be conducted after unit has been charging for 1 hour. The charging time for the full discharged battery of 184601 is 12 hours, of 184602 is 24 hours.
