Summary of Contents for Fieldmann FZD 4020-E

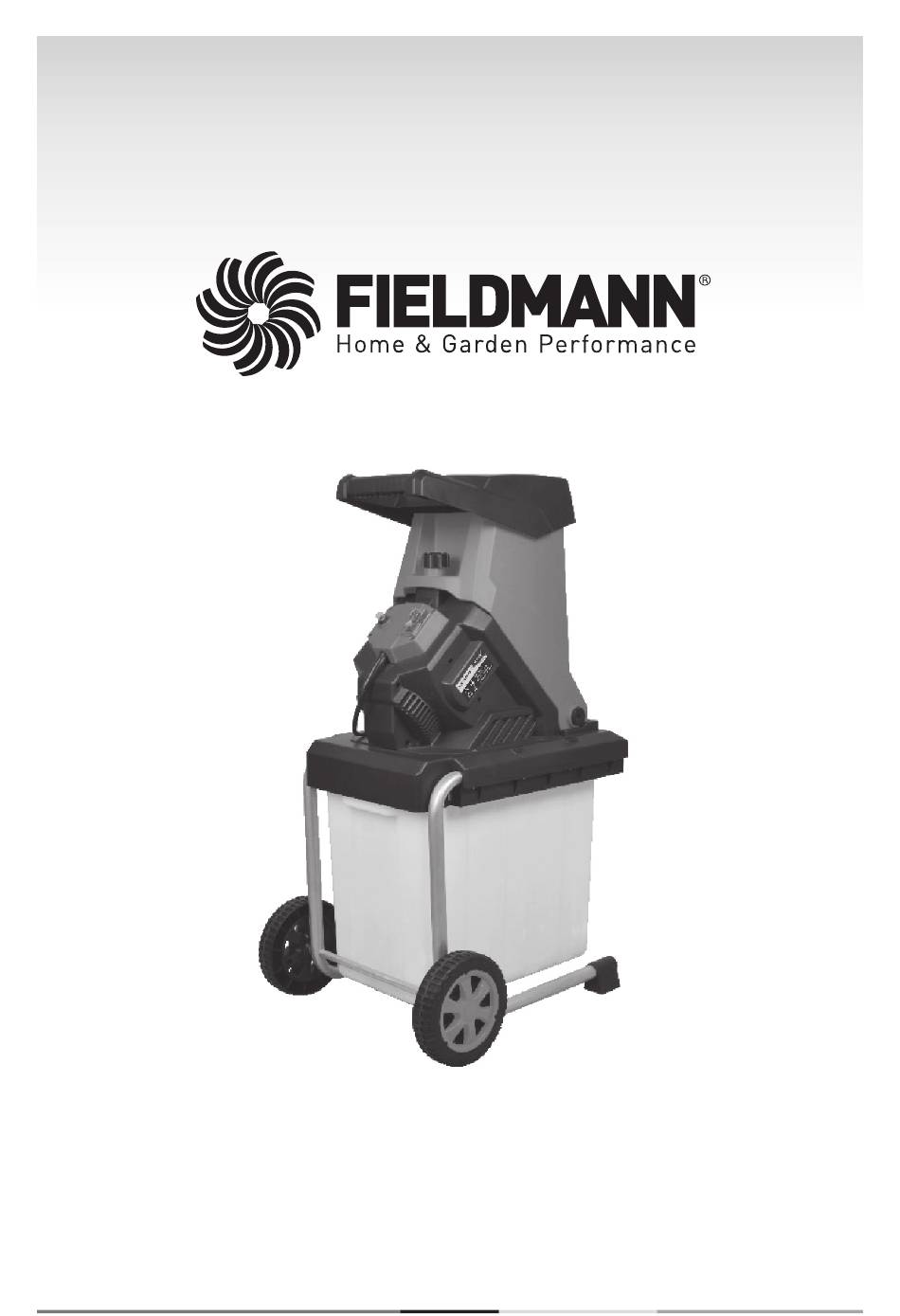

- Page 1 FZD 4020-E...
- Page 2 English ................................7 Čeština ............................... 21 Slovenčina ..............................37 Magyarul ..............................51 Polski ................................65 FZD 4020-E...
- Page 4 FZD 4020-E...
- Page 6 FZD 4020-E...
-
Page 7: Table Of Contents
Table of contents Electrical shredder OPERATING INSTRUCTIONS TABLE OF CONTENTS PICTURE ANNEX GENERAL SAFETY REGULATIONS Important safety notices Packaging Instructions for use SYMBOLS LAYOUT AND ITEMS SUPPLIED SAFETY INSTRUCTIONS PROPER USE INSTALLATION OPERATION REPLACING THE POWER CABLE CLEANING, MAINTENANCE AND ORDERING OF SPARE PARTS TROUBLESHOOTING GUIDE TECHNICAL DATA DECLARATION OF CONFORMITY... -
Page 8: General Safety Regulations
Adherence to the attached instructions for use is a precondition for the proper use of the machine. The operation manual includes also instructions for operation, maintenance and repairs. The manufacturer does not take any responsibility for accidents or damages resulting from the failure to adhere to this manual. FZD 4020-E... -
Page 9: Symbols
Symbols 2. SYMBOLS Important! Read the operating instructions and follow the warnings and safety instructions Take care when the blades are rotating. Do not put your hands or feet into openings when the machine is running. Important! Keep other persons and animals away from the danger zone. -
Page 10: Layout And Items Supplied
Children must always be supervised in order to ensure that they do not play with the equipment. FZD 4020-E... - Page 11 Safety instructions ATTENTION! The ON/OFF switch must be set to OFF and the power plug removed from the socketoutlet before cleaning or doing any other work on the shredder and whenever the cable becomes tangled. The shredder will continue to run briefly after it is switched off. The shredder is not to be used by individuals under 16 years of age or any other persons who are not acquainted with these directions for use.
- Page 12 find out immediately what is causing the vibrations. Intensive vibration is usually a sign that something is wrong. Do not wear loose clothing or clothing with hanging belts or cords. Do not use the machine on a paved area that has been graveled where discharged material may cause injuries. FZD 4020-E...
- Page 13 Safety instructions Ensure that the loading funnel inlet is empty before you start the machine. Keep your head and body away from the infeed opening. Do not move your hands, other body parts or clothing into the infeed chamber, ejector chute or near other moving parts.
-
Page 14: Proper Use
Note: The machine cannot be switched on if there is no voltage being supplied to it. If the power supply is interrupted, the machine will switch off automatically (switch position “0”). The machine cannot be switched on again until the voltage supply has been re-established and the ON/OFF switch has been moved to position “I”. FZD 4020-E... - Page 15 Operation Overload protection (motor circuitbreaker) The motor is protected from overloads by an overload switch. During operation the control pin projects out of the overload switch housing by around 4 mm. If the motor is overloaded for a lengthy period, the overload switch (Fig. 1/Item 10) will trip and switch off the machine.
-
Page 16: Replacing The Power Cable
Do not use any aggressive agents or solvents for cleaning purposes. Never clean the shredder by spraying with water. Prevent water getting inside the machine at all cost. Check the chassis securing screws from time to time to ensure that they are tight. FZD 4020-E... - Page 17 Cleaning, maintenance and ordering of spare parts If you do not intend to use the shredder for a lengthy period, protect it from corrosion using environmentally friendly oil. Store the device in a dry room. Store the device out of reach of children. When you have finished your work, pull the loading funnel forwards and clean the inside.
-
Page 18: Troubleshooting Guide
2500 W(S6, 40%) Idle speed n 4050 rpm Branch diameter: max. 40 mm sound pressure level: 88,3 dB(A), K=3 dB sound power level: 108,3 dB(A), K=3 dB Weight: 14,1 kg The User’s Manual is in a specific language version. FZD 4020-E... -
Page 19: Declaration Of Conformity
EU DECLARATION OF CONFORMITY Product / brand: Electric Shredder / FIELDMANN Type / model: FZD 4020-E as factory model GY6000 AC 230 – 240 V; 50Hz; 2500W; diameter 40 mm; Class II, IPX4 = 98,7 dB(A), L = 109 dB(A) Manufacturer: FAST ČR, a.s. -
Page 20: Disposal
This product fulfils all basic requirements of the EU directives that apply to it. Text, design and technical specifications can change without prior notice and we reserve the right for their change. FZD 4020-E... - Page 23 Jótállási jegy A termék gyártója: FAST ČR, a.s. (U Sanitasu elállásnak nincs helye. A fogyasztó a választott A 151/2003. (IX.22.) Korm.rendeletben meg- 1621, Říčany u Prahy 251 01, Csehország) jogáról másikra térhet át. Az áttéréssel okozott határozott tartós fogyasztási cikk meghibáso- A FAST Hungary Kft.
- Page 24 A kereskedő tölti ki Megnevezés:................................Típus:................ Gyártási szám: ……………………………………………. A termék azonosításra alkalmas részeinek meghatározása (ha alkalmazható):…………………………………… Vásárlást igazoló bizonylat száma:………………………………………………………………………………. A vásárlás (üzembe helyezés) időpontja: 20......hó.....nap. Kereskedő bélyegzője: Kereskedő aláírása: ………………………………… Kereskedő címe: ……………………………………………… Javítás esetén alkalmazandó A kereskedő vagy szerviznél történő közvetlen bejelentés esetén a szerviz tölti ki A jótállási igény bejelentésének időpontja: ……………………………………………………………………….
