VIEW-it V2-IR-SET Operation Manual

Infrared detectors

Advertisement

Infrared Detectors
Operation Manual
Caution: Always Wear Laser Protective Eyewear

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V2-IR-SET and is the answer not in the manual?

Questions and answers

Summary of Contents for VIEW-it V2-IR-SET

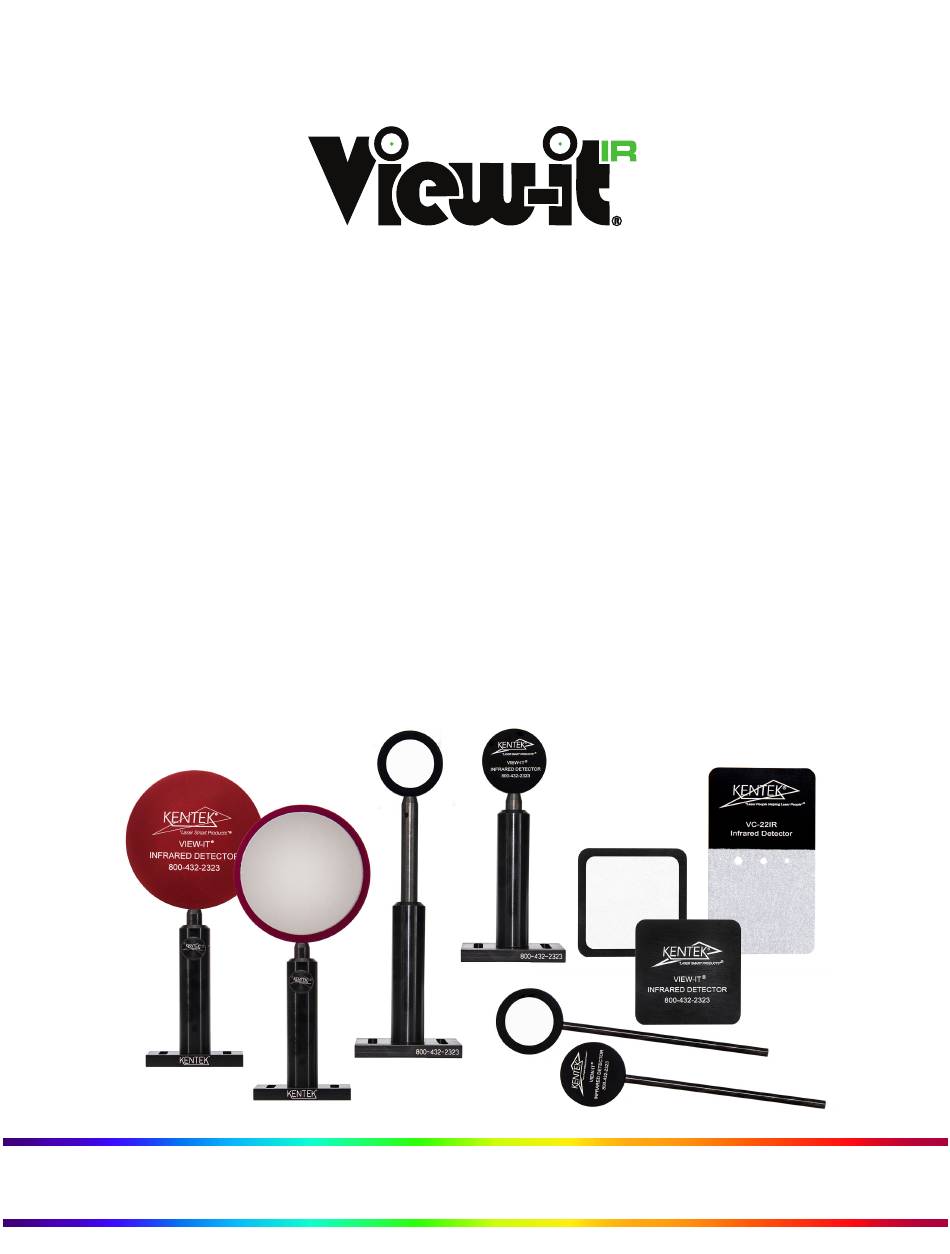

  • Page 1 Infrared Detectors Operation Manual Caution: Always Wear Laser Protective Eyewear...
  • Page 2: Laser Safety

    Exposure) limits, there may be a significant risk of eye injury. Under such conditions, we recommend using appropriate laser protective eyewear. Laser protective eyewear must be evaluated in accordance with ANSI Z136.1 Standard for the Safe Use of Lasers. VIEW-IT IR® LASER DETECTORS...
  • Page 3 3. Wear appropriate safety eyewear for your application. Place the VIEW-IT® IR Detector in the path of the infrared light source being careful not to reflect it towards you or others.
  • Page 4: Specifications

    100J/cm2 at pulse emission between 30 nanosecond - 40 milliseconds. Also, excretion of hydrogen sulfide (H under influence of acidic environment with pH 2-3 may occur. Use the VIEW-IT® IR Detector in a well-ventilated area. VIEW-IT IR® LASER DETECTORS...
  • Page 5: Preventive Maintenance

    • Verify that the target surface hasn’t been damaged by the laser. • Make sure the target is clean before placing it in the path of the laser beam. COMPLIANCE This product line is RoHS, REACH and LaserSmart® compliant. VIEW-IT IR® LASER DETECTORS...
  • Page 6 0.78 inches [20mm] diameter (VSPOT-IR) and V2-IR-SET 2 inches [50.8mm] square (VC-22IR) VB-IR50X50 2 inches [50.8mm] square VC-22IR 2 inches [50.8mm] square VDISC-IR 1.49 inches [38mm] diameter VF-IR10-10 10 inches [254mm] square VF-IR20-20 20 inches [508mm] square VIEW-IT IR® LASER DETECTORS...
  • Page 7 5 inches [127mm] square 1.37 inches [35mm] diameter (VW-IR) V-IR-SET and 2 inches [50.8mm] square (VC-22IR) VS-IR 1.37 inches [35mm] diameter VSPOT-IR 0.78 inches [20mm] diameter VT-IR-3 3.75 inches [95.25mm] diameter VW-IR 1.37 inches [35mm] diameter VIEW-IT IR® LASER DETECTORS...
  • Page 8 Rev. 04/23 kenteklaserstore.com ©Kentek Corporation. All rights reserved. VIEW-IT® is a registered trademark of Kentek Corporation.
