Summary of Contents for Powermat PM-KS-600T

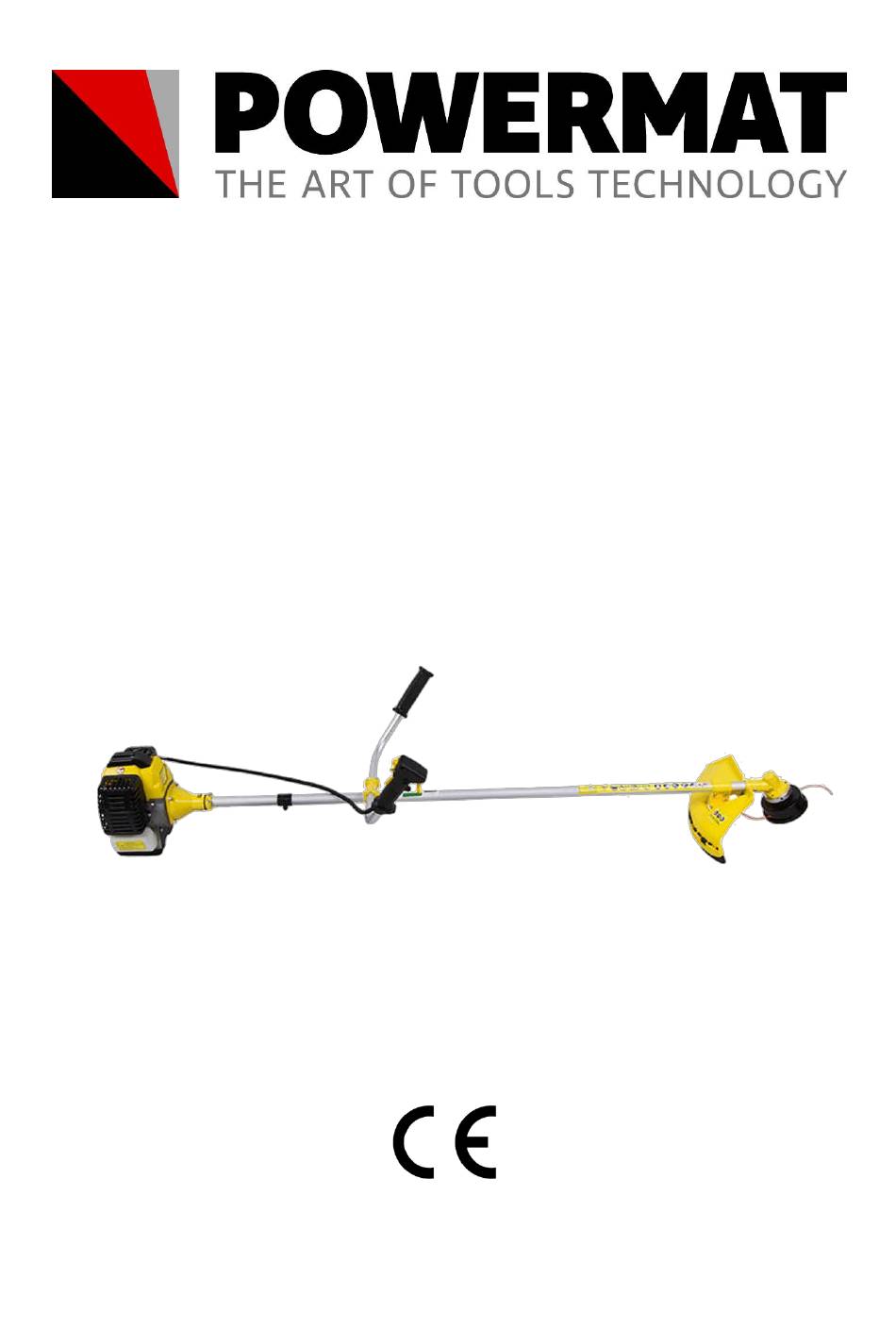

- Page 1 USER MANUAL COMBUSTION CUTTER PM-KS-600T ORIGINAL MANUAL...
-
Page 2: Table Of Contents
Table of Contents GRAPHIC WARNINGS ......................5 INTRODUCTION ............................6 TECHNICAL DATA ........................6 WARRANTY CONDITIONS ......................7 SAFETY PRECAUTIONS AND PRECAUTIONS ..............8 DESCRIPTION OF THE COMBUSTION CUTTER s ......................11 INSTALLATION INSTRUCTIONS .......... - Page 3 Fuel filter ..........................24 Transport and handling ....................... 25 Prolonged storage ....................25 Problems with starting ....................25 TROUBLESHOOTING GUIDE ........... 26 Problems with switching on ......................26 Low efficiency ........................27 Unstable motor operation ..........
-
Page 4: Graphic Warnings
GRAPHIC WARNINGS Since the brush cutter is a device with high working speed, special precautions should be taken to minimize the risk of personal injury. Please read this manual carefully. Familiarize yourself with the control methods and the correct application of each system. Learn how to quickly disengage and release the harness straps. This graphic sign together with the word WARNING requires special care that should be This graphic sign together with the word WARNING requires special care that should be This graphic sign together with the word WARNING requires special care that should be... -
Page 5: Introduction
By the way, we must add that due to changes in the specification, not all details of the device will be in accordance with this manual. Please keep this in mind. TECHNICAL DATA MODEL: PM-KS-600T 11,000 rpm Maximum revolutions: Idle speed:... -
Page 6: Warranty Conditions
Ignition system: Spark Plug Type: LD-L7T Fuel used: Gasoline-Oil Blend (25: 1) Gasoline-Oil Blend (25: 1) Gasoline-Oil Blend (25: 1) 1 / ( 1 / ( 1 / ( Fuel tank capacity: 1200cc Guaranteed sound power level 116dB LwA: Sound pressure level LpA: 92.5dB k = 3dBa Vibration level k = Sound pressure level LpA: 92.5dB k = 3dBa Vibration level k = 1m / s 1m / s... -
Page 7: Safety Precautions And Precautions
SAFETY RULES AND PRECAUTIONS Take all precautions. Like all electro-devices, this system must be handled with care. DO NOT EXPOSE YOURSELF OR OTHERS TO DANGER. Follow these general safety rules. Do not allow others to use this device unless they are entirely responsible, and make sure that they read and follow the operating instructions for the device, or that they have been specially trained for its use. - Page 8 9) Never remove the tank cap while the engine is running. 9) Never remove the tank cap while the engine is running. 10) Never switch on or operate the device in closed rooms or 10) Never switch on or operate the device in closed rooms or buildings.
- Page 9 25) Be sure to turn the engine off and make sure it is cool before refueling. Never 25) Be sure to turn the engine off and make sure it is cool before refueling. Never do not add fuel while the engine is running or hot. If gasoline is spilled, wipe it thoroughly and discard any cleaning material before starting the engine.
-
Page 10: Description Of The Combustion Cutter S
41) A condition called Reynauld's phenomenon, which affects some fingers, is believed 41) A condition called Reynauld's phenomenon, which affects some fingers, is believed people, and can be caused by exposure to vibration or cold, and causes the fingers to feel numb and cause color changes. -
Page 11: Installation Instructions
2. STARTER HANDLE: Pull the handle until the engine starts, then slowly 2. STARTER HANDLE: Pull the handle until the engine starts, then slowly 2. STARTER HANDLE: Pull the handle until the engine starts, then slowly move the handle back. DO NOT ALLOW the handle to slide back abruptly as the starter may be damaged. -
Page 12: Installation Of The Plastic Cover
Installation of a plastic cover • Install the plastic cover with 4 key screws, the so-called Allen socket and nuts. Connecting the engine to the drive unit • The powertrain connects to the motor with 4 Allen screws (see figure below). Mounting of cutting accessories •... - Page 13 MONTAGE HEAD ASSEMBLY 1. Install the spacer on the base first 1. Install the spacer on the base first bevel gear by adjusting the notches in the inner hole of the washer to the notches of the gear pin. 2. Place the pressure washer on the washer so that 2.
-
Page 14: Rules Of Safe Work
STOP THE ENGINE IMMEDIATELY Excessive vibration of the blade means it is not mounted properly, immediately shut off the engine so check the blade. The blade may be injured if it is not installed correctly. RULES OF SAFE WORK WARNING - CAUTION All models of brushcutters and scythes can throw small stones, metal and small objects as well as cut material. -
Page 15: Pole Cutting
WARNING - CAUTION In addition to protecting the head, eyes, face and ears, protect your feet with appropriate footwear that will be safe on a slippery surface. Do not wear neckties, jewelry, or loose, hanging clothing that can become caught in the equipment. -
Page 16: Trimming
When cutting, it is good to tilt the head with the line so that the contact is on the side of the line where the line moves AWAY from the operator and the cover against debris. Thanks to this, the debris will be thrown AWAY from you. WARNING - CAUTION Tilting the head in the wrong direction will throw debris towards YOU. -
Page 17: Mowing And Undercutting Of Edges
it singly. Position the trimmer head near the bottom of the stem, never too high, which may cause vibration and block the line. Instead of directly trimming the weeds, we recommend that you use the very end of the line to trim the stem only slowly. WARNING - CAUTION Do not use a steel blade for edge trimming or clearing. -
Page 18: Mowing Weeds And Brush
WARNING - CAUTION Do not cut with a dull, broken or damaged metal blade. Before cutting plant suckers, check that there are no obstructions such as boulders, metal piles, pieces of wire from a damaged fence. If the obstacle cannot be removed, mark this location so that you can avoid it with the blade. -
Page 19: Fuel And Oil Blend
FUEL AND OIL MIXTURE The fuel used for this model is a mixture of unleaded gasoline and a certified engine oil. When mixing gasoline with two-stroke oil, only use gasoline that does NOT contain ETHANOL or METHANOL (Alcohol types). Use 95 octane gasoline. Unleaded gasoline is known for its good quality. This will help to avoid possible damage to the engine cables and other parts of the engine. -
Page 20: Starting The Device
3. Never add fuel to the tank in a closed, unventilated tank 3. Never add fuel to the tank in a closed, unventilated tank room. 4. Do not add gasoline to the device near naked flames or sparks. 4. Do not add gasoline to the device near naked flames or sparks. 5. - Page 21 STARTING A COLD ENGINE: 1. Toggle the on / off switch ( 4) on the handle to position "I". 1. Toggle the on / off switch ( 4) on the handle to position "I". 1. Toggle the on / off switch ( 4) on the handle to position "I". 1.
-
Page 22: Maintenance And Protection
MAINTENANCE OF THE ENGINE DURING MOWING In order for the cutting accessories to turn and you can start mowing, you need to increase the engine speed, thanks to which the centrifugal clutch will transfer the drive from the motor to the shaft, and this in turn to the angular gears and cutting accessories. To start mowing: 1. -
Page 23: Air Filter
Air filter Dust in the air filter will reduce the efficiency of the engine. It will increase fuel consumption and cause abrasive parts to penetrate into the engine. Take out the air filter frequently to keep it clean. Fine dust coatings can be easily removed by shaking the filter. -
Page 24: Transport And Handling
A clogged filter will make it difficult to start or operate the engine. If the filter is dirty, replace it. If the fuel tank is contaminated on the inside, it can be cleaned by flushing it with gasoline. Transport and handling The engine should be turned off if equipment is moved to another location. -
Page 25: Troubleshooting Guide
With a serious problem with the device, do not try to repair it yourself, have it repaired by an authorized • service center. TROUBLESHOOTING GUIDE FOR COMMON PROBLEMS Despite the recommendations of the guide attached below, however, it is recommended to contact the service in order to consult the defects. -
Page 26: Low Efficiency
• Piston ring damaged • Replace with a new • The piston ring is cemented Compression pressure too low • Replace • Candle loose • Remove the • Joint between • tighten Ignition cylinder and shaft • The fuel system is Remove the surfaces, leakage system... -
Page 27: The Engine Suddenly Stops
Thanks to the reuse, use of materials or other forms of using used devices, you make a significant contribution contribution to the protection of our environment. MANUFACTURER'S DATA PH Powermat TMK Bijak Sp. Jawna Ul. Obrońców Poczty Gdańskiej 97 42-400 Zawiercie... -
Page 28: Declaration Of Conformity
DECLARATION OF CONFORMITY...
