Summary of Contents for Sovan's JF

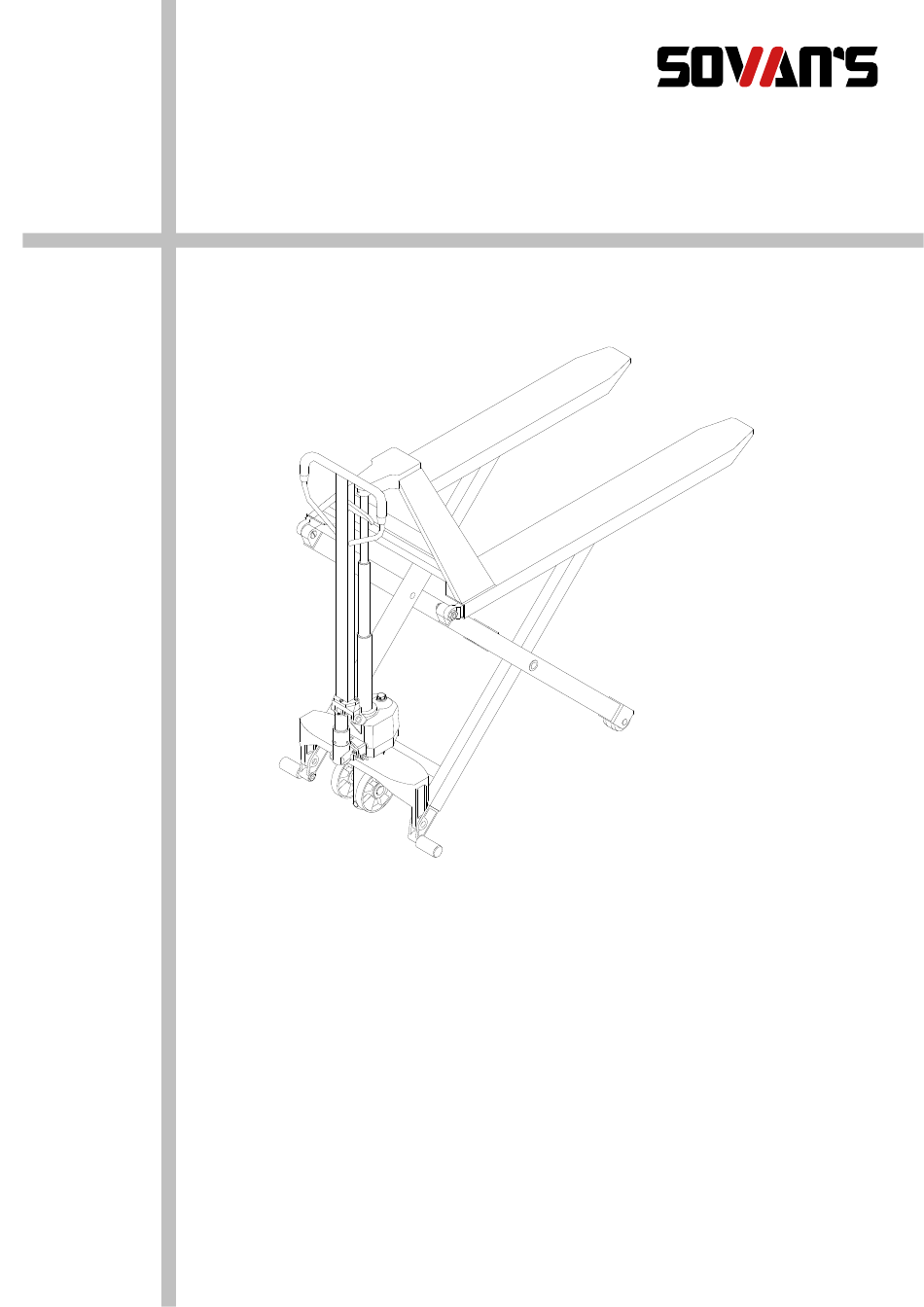

- Page 1 JF High-lifting Truck INSTRUCTIONS 2013-01...

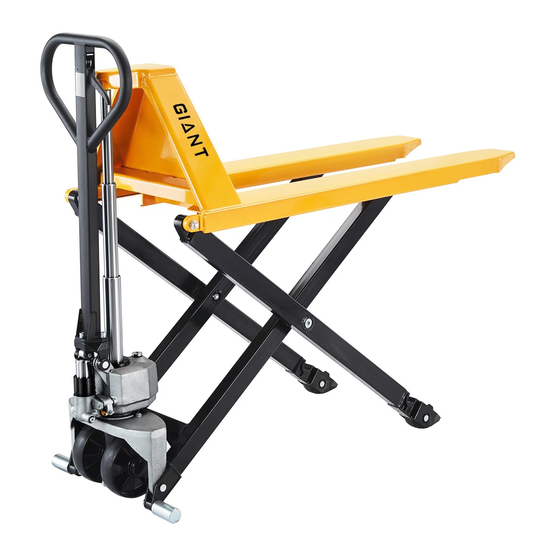

- Page 2 1. Applications JF manual hydraulic truck is a convertible apparatus for either carrying or stacking high-lifting and palletized cargo. Also named High-lifting pallet truck, it features as stable lifting and lowering, easy operation, safety and reliability, etc., and applies to the uses on hard flat ground.
- Page 3 3.3 Raise Lever Pad (7) by an iron stick and fit the screw and nut at the end of Roller Chain (2) into the groove of Lever Pad (7). Then remove the iron stick to complete the assembling. See Fig. 2 and 4.
- Page 4 5. Examination before using Air may be absorbed into hydraulic system when the truck is not used for a long time. The air can be removed in the following ways: 1. See Fig.2. Relax Screw (12) in counterclockwise and slowly shake the Handle until the oil overflows at this point.
- Page 5 3. Abnormal of unloading device. 3. Re-adjust the nloading device. See 3.6. The forks drop immediately after lifting when 1. Disassemble the valve, shaking the 1. The valve is caught up by clean parts handle, which impurities. reassemble it. springs back 2.
