Smart Meter
USER MANUAL
02
OVERVIEW

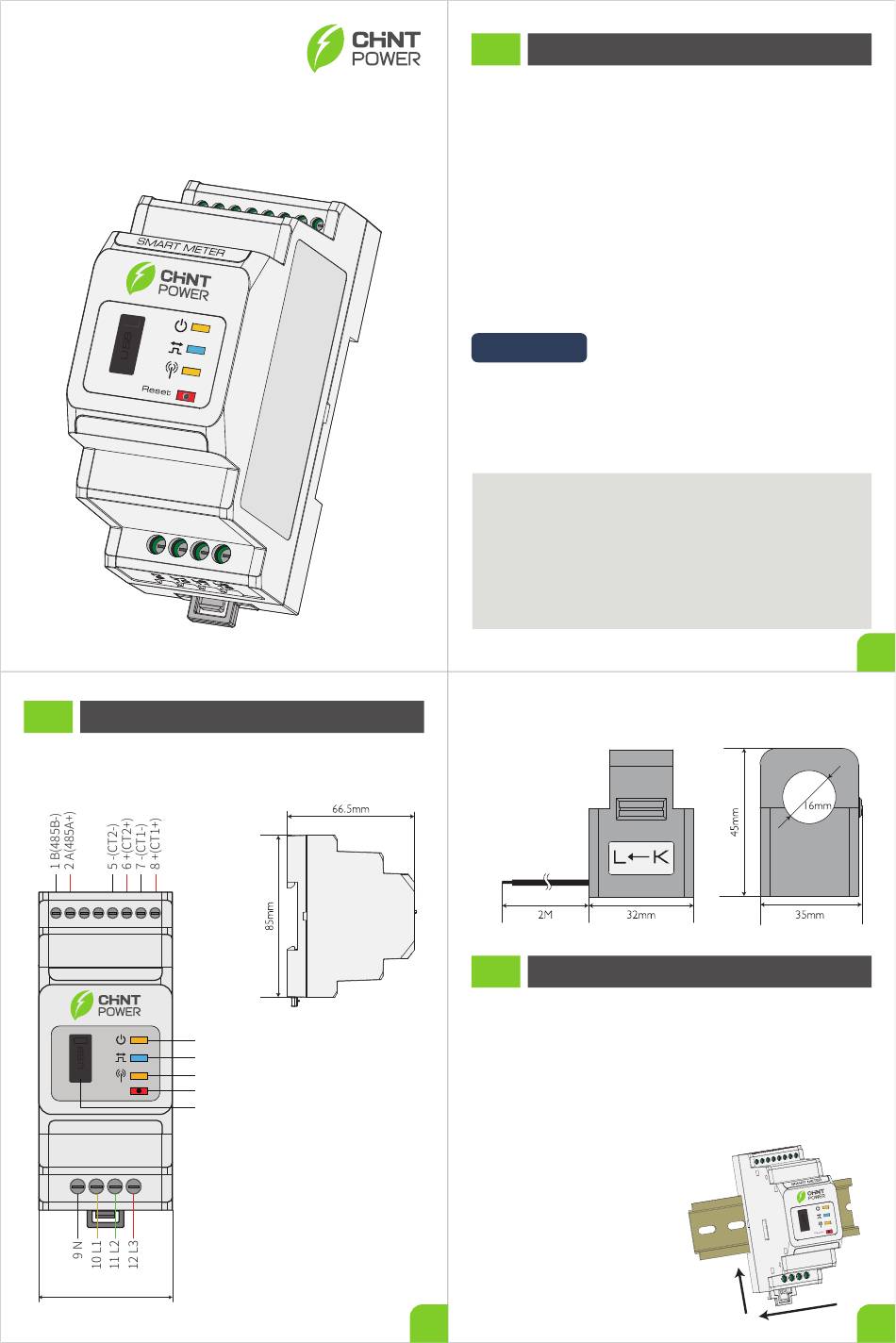

2.1 SMART METER OVERVIEW
SMART METER
① Power LED
② Energy consumption LED
③ Communications LED
④ Reset switch
Reset
⑤ USB Port
36mm
01
INTRODUCTION
Smart Meter is designed with high precision small dimensions,
convenient operation and installation.
It is available for both single-phase grid system connection to
dectect voltage, current, power and energy, for working with
inverters including SEMS systems for the purpose energy
management.
Any fault or damage caused misoperation or disobeyal against the
rules on manual is beyond manufacturer warrenty cover range.
PACKING LIST
1*Smart Meter
1*Screw Driver
2*USB Seal
NOTE:
[1] A three-phase Meter will contain 3 CT clamps.
Specifications are subject to the physical product.
[2] Only suitable for RS485 cable connection on RJ45
part of hybrid inverter.
2.2 CT OVERVIEW
03
INSTALLATION INSTRUCITON
3.1 INSTALLATION ENVIROMENT
Protection Class: IP20(for indoor use)
Operating Temperature： -25℃~60℃
3.1 INSTALLATION (WITH DIN TRACK)
① Pull to release the retaining clip
② Mount the HomeKit on the track
and push the
Retaining clip up(a click sound
indicates it is installed well)
02
1*CT (Current Transformer) [1]
4*Cable Connection Terminal
1*RJ45-to-Pin Cable [2]
②
①
01
03
Advertisement
Table of Contents
Related Manuals for CHNT Power Smart Meter CPS1000
Summary of Contents for CHNT Power Smart Meter CPS1000
- Page 1 INTRODUCTION Smart Meter Smart Meter is designed with high precision small dimensions, USER MANUAL convenient operation and installation. It is available for both single-phase grid system connection to dectect voltage, current, power and energy, for working with inverters including SEMS systems for the purpose energy management.
- Page 2 3.3 WIRING CONNECTION AC coupled inverter RS485 SMART METER Reset Main Meter Grid Load Correct direction of CT: House (K)→Grid(L). Incorrect connection or direction will cause incorrect data. ELECTRICAL DATA INTERFACE 5.1 INDICATIONS MODEL CPS1000 • Power LED： APPLICATION Single-phase Normal status: ON Nominal Voltage 230Vac...
