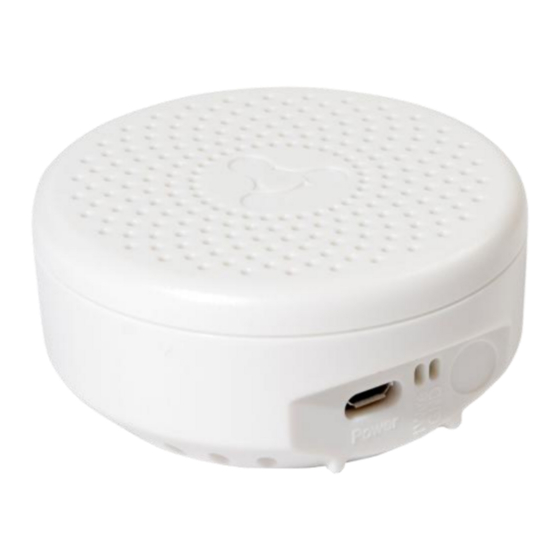

- Page 1 Air quality sensor SZ-AIR-HTQ01 User manual...
-
Page 2: Table Of Contents
_______________________________________________________________________________________________ Table of contents General information ............................3 Connecting to a Z-Wave network ........................3 Service button operation ........................... 4 Readings transmission ............................4 Protected network ............................. 5 Supported Z-Wave command classes ........................ 5 Supported device configurations ........................6 Notification message sending ..........................6 Specifications .............................. -
Page 3: General Information
_______________________________________________________________________________________________ General information Air quality sensor SZ-AIR-HTQ01 is a multifunctional sensor that measures the following parameters: temperature, relative humidity, CO2 and tVOC. The sensor supports the Z-Wave Plus™ v2 protocol, which means support for encryption and firmware updates «Over The Air» (OTA update). The device can operate in any Z-Wave™... -
Page 4: Service Button Operation
_______________________________________________________________________________________________ Service button operation The device has a service button on the back side. This button allows to add, remove, reset the device to the factory settings, use SmartStart feature and to add/remove the associations. The description of available functions are listed in the following table. Function Description ... -
Page 5: Protected Network
_______________________________________________________________________________________________ Protected network The device supports encryption. When the device added to the protected network, it will automatically switch to the protected mode (with encryption). Supported Z-Wave command classes Class name Version Required security class Z-Wave Plus Info — Association The highest security class Multichannel The highest security class... -
Page 6: Supported Device Configurations
_______________________________________________________________________________________________ Supported device configurations CAUTION: all configuration data is sent in two-byte format. Name Default value Range Minimum temperature +18°C from +1°C to +18°C value Maximum temperature +27 °C from +27°C to +80°C value Maximum CO2 level value 750 ppm from 400 ppm to 3000 ppm Minimum tVOC level value 65 ppb... -
Page 7: Specifications
_______________________________________________________________________________________________ Specifications Power supply 5V DC via USB Signal frequency 869 MHz Controller reception range 100 m (direct visibility) Protection level IP20 Dimensions Ø70 mm, h = 31 mm Operating temperature range From +5 to +40°C Relative humidity at +40°C 95% max. - Page 8 _______________________________________________________________________________________________ ELTEX Enterprise Ltd 630020, Russia, Novosibirsk Okruzhnaya street 29V Phone: +7 (383) 274-10-01, 274-48-48 Fax: +7 (383) 274-48-49, 274-48-48 http://www.eltex-co.com E-mail: eltex@eltex-co.ru _______________________________________________________________________________________________ Air quality sensor SZ-AIR-HTQ01. User manual...
