Summary of Contents for HouseFit SMART 420

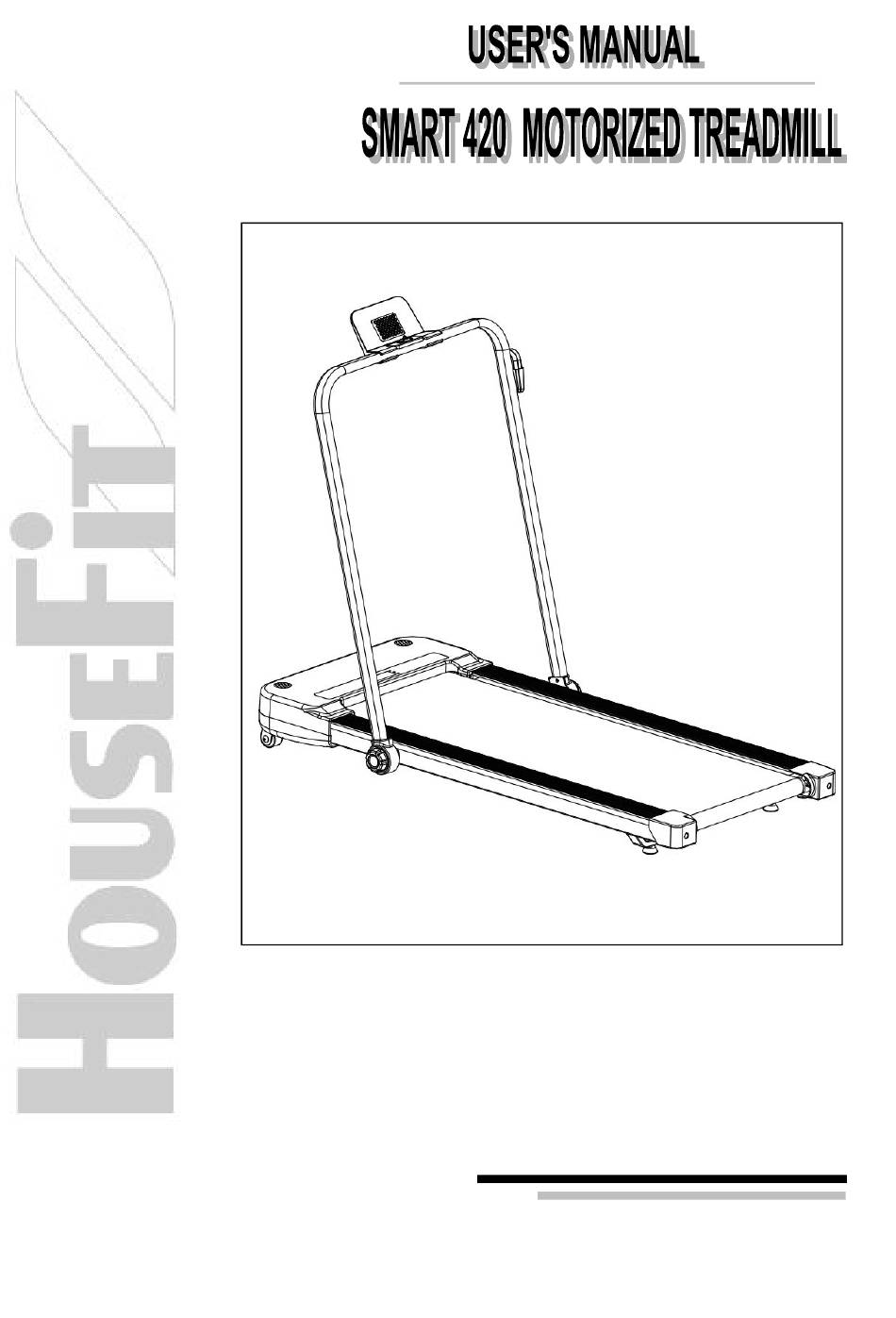

- Page 1 Stay Healthy﹐Stay Fit...
-
Page 2: Important Safety Precautions
IMPORTANT SAFETY PRECAUTIONS 1. Plug the power cord into a surge protector (not Included) then plug the surge protector into a grounded circuit. No other appliances should be on the same circuit. 2. Position the treadmill on a clear level surface. Do not place the treadmill on thick carpet as it may interfere with proper ventilation. -
Page 3: Parts Included
PARTS INCLUDED Parts# Description Remarks Qty. The machine assembly 1 SET User manual 1 PC Wireless remote control 1 PC Socket head wrench 1 PC Silicone oil 30 ml 1 PC IP holder 1 PC Safety key Color red 1 PC △... -
Page 4: Assembly Instruction
ASSEMBLY INSTRUCTION 1. Open the packing box and take out all the above parts from the box. P.S. Do not dispose of the packaging until assembly is completed. 2. Set the treadmill in a clear&horizontal area and remove all packaging materials beforehand. 3. - Page 5 ※The instruction for adjusting the height of the handlebar: Uplift the handlebar as the diagram shows, look at the internal opening part of the side cover, align the fixed position, tighten the handrail with the knob in the clockwise direction, lock another part in the same procedure.
- Page 6 Clamp the IP holder (1) into the upward side of the handrail (2) in correct direction as the diagram shows. Make sure that the IP holder does not touch the safety key part. DIMENSIONS AND PARAMETERS TREADMILL BUILT UP SIZE 52×27.6×43.3INCH TREADMILL SPEED RANGE 0.5—7.5MPH...
-
Page 7: Grounding Methods
GROUNDING METHODS This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. - Page 8 WARM UP STAGE Before exercise, it is better Warm muscles stretch more easily, so the first of 5 ~ 10 minutes to warm up. Then in accordance with the following methods to stop and do stretching exercises - do five times, each leg every time 10 seconds or more time to do it again after the end of the exercise.
-
Page 9: Exercise Instructions
EXERCISE INSTRUCTIONS Warm up stage： If you are over 35 years old, or not very healthy, also it’s your first time exercise, please consult with your doctor or professional person. Before you use the motorized treadmill, please learn how to control the machine, know well how to start, stop, adjust the speed and so on;... - Page 10 Speed 0.5-2.0MPH warm up Speed 2.5-3.0MPH less movement and workout Speed 3.5-4.0MPH normal walking Speed 4.5-5.0MPH fast walking Speed 5.5-6.0MPH Jogging Speed 6.0-7.5MPH intermediate speed walking Attention: For walker, it is better to keep the speed at ≤4MPH. For runner, it is better to keep the speed at ≥5MPH MAINTANCE INSTRUCTION WARNING: Always unplug the treadmill before cleaning or maintance.
-
Page 11: Belt Adjustment
BELT ADJUSTMENT We suggest that you should cut off the power for 10 minutes after keep running 1.5hours to maintain the treadmill. The belt would slip if too loose during using；if the belt is too tight, it would affect the performance of motor and increase the abrasion of roller and belt. - Page 12 OPERATION GUIDE CONSOLE DISPLAYS, FEATURES AND FUNCTIONS. The LED window shows: SPEED, DISTANCE, TIME and STEP. Speed Range of folded handrail: 0.5~4MPH. Speed Range of stand handrail: 0.5~7.5MPH. Time Range: 0:00~99:59. Distance range: 0.00~99.9. Step range:0000-9999 CAL.：0000-9999 REMOTE CONTROL OPERATION. The button function of the remote control is as shown below.
-
Page 13: Troubleshooting Guide
MODE OPERATION After the console fully displays, it enters the standby mode. Then press "START" button to enter the operation of manual mode. The treadmill will start from the speed of 0.5MPH The windows of TIME and DISTANCE will count up from 0. Pressing the Speed (+) or (-) to adjust speed value. - Page 14 Lower control can’t detect PWM drive circuit failure Change the lower controller. speed signal. of lower control 1. The load of the The load on the treadmill must be treadmill exceeds the within the rated operational rated working voltage voltage. of the motor.
Need help?
Do you have a question about the SMART 420 and is the answer not in the manual?
Questions and answers
I need a console for Housefit 420
@janine quinlan Im not sure if its the remote or the board ut the treadmill does not move, it turns on but does nothing
My house fit smart 420 treadmill belt won’t move. How can I address/get it to move?
To fix the treadmill belt on a HouseFit SMART 420 that won't move, follow these steps:
1. Check Power and Safety Key: Ensure the power cord is connected and the red safety key is properly inserted.
2. Check Belt Tension and Alignment:
- If the belt is too loose, pull out the safety key and power switch.
- Turn both left and right adjusting bolts 1/4 turn clockwise.
- Reinsert the safety key, turn the machine on, and test if the belt moves.
- Repeat adjustments until the belt has proper tension.
3. Inspect for Obstructions: Make sure there are no objects blocking the belt or motor.
4. Check Footpad Adjustment: Ensure all footpads and wheels are level with the ground. Adjust rear footpads if needed by rotating them until they touch the ground.
If the belt still does not move after these steps, further mechanical or electrical inspection may be required.
This answer is automatically generated
This housefit 420 needs a console to operate right?
