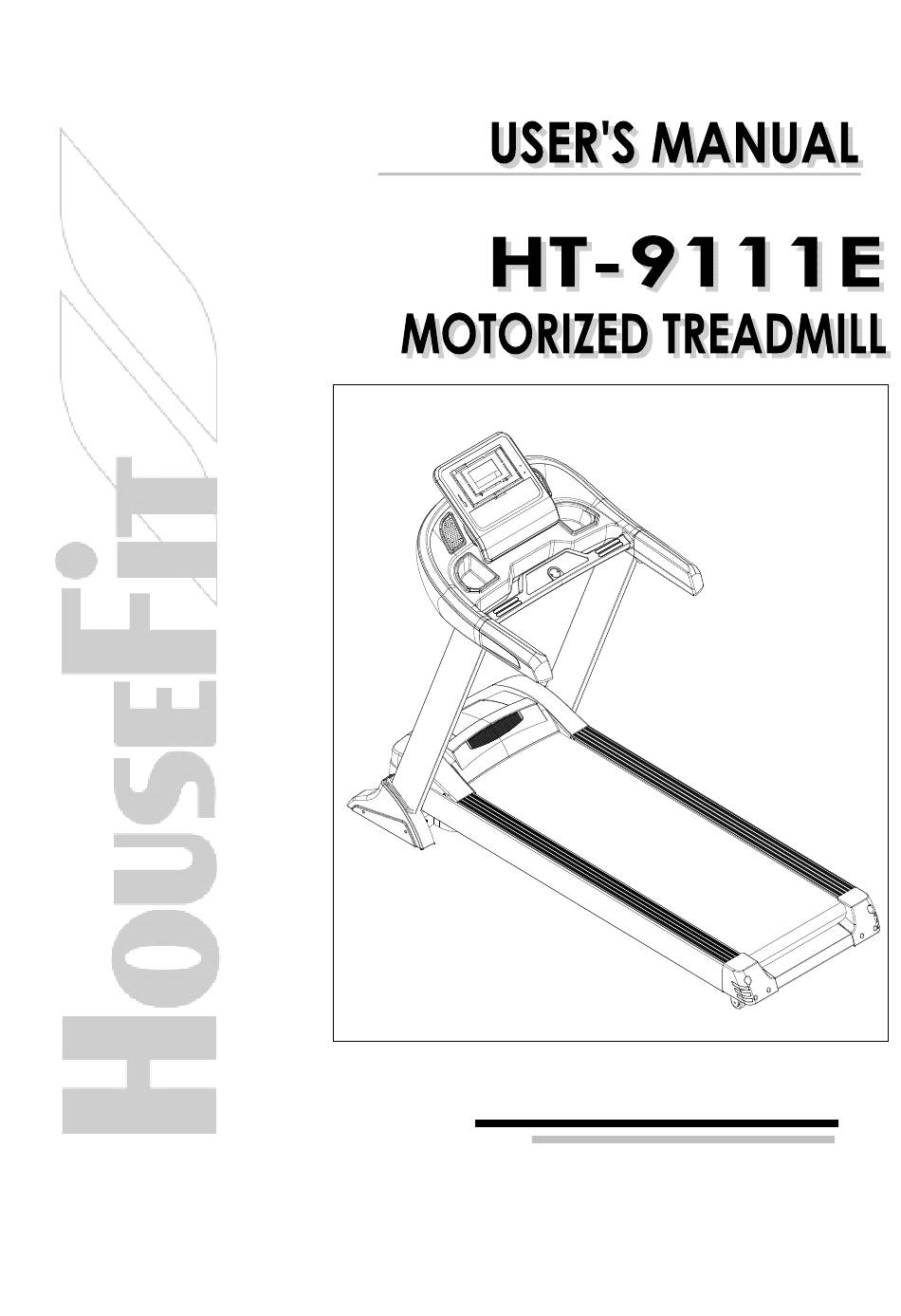

  • Page 1 Stay Healthy﹐Stay Fit...

  • Page 2: Specification

    Specification Assembly size (mm) 1910*800*1400 Voltage DC 220-240V Fold size (mm) 1210*800*1520 Motor power 2.5HP Running area (mm) 460*1360 Output current Net weight 75 KG Speed range 1.0-18 km/h Max.user weight 130 KG Display readout Speed,Time.Distance,Elevation,Calories,Pluse,Program,Body fat PRECAUTIONS BEFORE BEGINNING ASSEMBLY Before starting to exercise, read the manual carefully and also always keep this manual with you.
  • Page 3 BEGIN TO ASSEMBLE Please check all the bolts and nuts and the tools in the tool bag. You must follow the assembly instructions carefully. When assemble the handle, you must note not to let it press any wire. To make the assembly easier, at first you should not tighten all parts completely, but tighten all after finishing the assembly.
  • Page 4 pressure or cholesterol level. We do not suggest you to use the machine unless you have your doctor’s advice. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. If you feel dizziness, nausea, chest pain, back pain or other health symptoms stop the workout at once and consult your doctor before continuing.
  • Page 5 AFTER YOUR WORKOUT Decrease the speed gradually, then press the button “ STOP” on the computer. To get off the running surface, straddle the running surface by standing on the right and left foot rails on each side of the belt after the belt has stopped. Remove the safety key and store it away in a safe place when the treadmill is not in use.
  • Page 6 EXPLODE VIEW 1...

  • Page 7: Parts List

    PARTS LIST Base Rear end cap left Incline frame Rear end cap right Main frame Base cover(left&right) Left upright Base cover board Right upright Side rail cover Handrail rack Side rail Bolt M10*55 End cap support board Bolt M10*45 Handrail foam Bolt M8*55 Motor belt 210J-6 Screw￠4*20...
  • Page 8 EXPLODE VIEW 2...
  • Page 9 NOTICE ● Read this manual before assembly ● Recognize the spare parts first ● Check the hardware ● Ensure that you have the right tool ● Prepare an area to assemble ● Follow the instruction accordingly ● Never force the joints ●...
  • Page 10 PART LIST OF ASSEMBLY #A M8*55 6PCS #B M8*15 4PCS #C ST4*15 6PCS #D ID9*OD16*1.6T 10PCS #E S13.15 1PCS #F S5 1PCS #G S6 1PCS...
  • Page 11 Information: The following parts listed on the drawing is based on the ratio 1:1 , just find them from the bolt set and follow the illustration to finish the assembly ASSEMBLY STEPS: STEP 1: #A M8*55 3PCS #B M8*15 1PCS #D ID9*OD16*1.6T 4PCS S5 1PCS...
  • Page 12 STEP 2: #A M8*55 3PCS #B M8*15 1PCS #D ID9*OD16*1.6T 4PCS S5 1PCS...
  • Page 13 STEP 3: #B M8*15 2PCS #D ID9*OD16*1.6T 2PCS S5 1PCS...
  • Page 14 STEP 4: #C ST4*15 6PCS S13.15 1PCS...
  • Page 15 STEP 5:...
  • Page 16 WARNING 1: Before folding up or down, do not stand on the deck WARNING 2: M ake sure the treadmill has been disconnected with the electricity. You can switch off the treadmill by pressing the main power switch as below.
  • Page 17 INSTRUCTION OF FOLDING AND GRADIENT ADJUSTMENT HOW TO FOLD UP THE TREADMILL 1. FOLD UP: To fold the deck you first need to bring the treadmill to the lowest incline level. Hold the rear cap position (on main Frame) firmly, raise the rear side of Main frame to fold the treadmill up, Then after hearing “kick”...

  • Page 18: Care And Maintenance

    CARE AND MAINTENANCE Use a warm damp cloth with mild detergent to keep your treadmill clean. Do not clean between the mat and running board---The silicone lubricant is needed for smooth movement of the mat. Check parts for wear before use. If in doubt do not use the treadmill and contact our help line.

  • Page 19: Belt Adjustment

    BELT ADJUSTMENT NOTE: For most people, one of your legs is stronger than the other, the treadmill mat may tend to track to that side because of the extra pressure exerted by your stronger leg. If this occurs then either dismount treadmill and allow mat to track back to middle, or exert pressure to side of mat with other leg to track mat back to middle.

  • Page 20: Display Function

    Operation instructions of computer I. Display function 1:LCD Display readout： 1、“SPEED”：（Referred to as: window 1 ） 1.1 display speed 2、“INCLINE/ DIS/CAL” ：（Referred to as: window 2） 2.1 When“INCLINE”flashes, display the accumulated total workout incline 2.2 When“DIS”flashes, display the accumulated total workout distance in kilometers 2.3 When“CAL”flashes, display the accumulated calories burn during workout 2.4 When you enter into program sports, it will display program number 3、“TIME/PULSE”：（Referred to as: window 3）...
  • Page 21 3.2 When“PULSE”flashes, display the current pulse reading in beats per minute when the pulse is detected by placing Both palm on the stainless steel handrail pulse kit 3.3 When the value displayed, the countdown enter into 3 seconds 4、Dot matrix window： 4.1 display graphics program 5、Volume icon: display volume 6、“MANUAL/TIME/DISTANCE/CALORIES/PROGRAM”display manual mode/time meter mode/distance meter...

  • Page 22: Pulse Function

    SPEED +/- or INCLINE +/- button to adjust speed and incline. When the window numerical meter to zero, treadmill slow speed down to stop. Also, you can press STOP button or move safety key then the equipment will resume to ready mode.
  • Page 23 command input. Program instruction：schedule Time 10 segments Program SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE V．Body Fat Scale Function： In standby mode, press PROGRAM button, window will indicate FAT to BODY FAT analysis function.
  • Page 24 corresponding window. 5.1 The input parameter display and setting range Parameter catagory Default value Setting range Note Gender（-1-） 00（male） 00—01 00=male 01=female Age（-2-） 25 years old 10—99 years old Height（-3-） 170 CM 100—220 CM Weight（-4-） 70KG 20—150KG 5.2 Body Fat Index（BMI）...

  • Page 25: Troubleshooting Guide

    Inverse function Start/Stop line plugged into speed Check the handrail sensor line of handrail quick line button WHEN TO CALL UP This treadmill is designed with user safety as the number one priority in the event of electrical failure, the treadmill will shut off automatically to prevent user injury and to prevent damage to expensive components such as the motor.

  • Page 26: Exercise Tips

    EXERCISE TIPS: First try to find your hear beating rate. To make sure your heart is beating in its target zone. You’ll need to know how to monitor your heart rate. The easiest way is to feel the pulse in the carotid artery on either side of your neck.
  • Page 27 body for more strenuous exercise by heating up and stretching out your muscles, increasing your circulation and pulse rate, and delivering more oxygen to your workout, repeat these exercises to reduce sore muscle problems. We suggest the following warm-up and cool-down exercise. 1.
