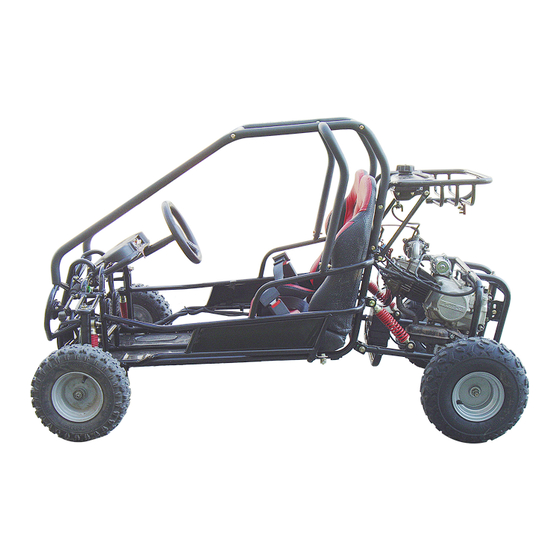

SERIES OFF-ROAD KART
USER'S MANUAL
Dear Sir or Madam,
Thank you very much for your choice of this
Off-road Kart.
The Off-road Kart is manufactured according to the
full survey of market demand. We hope that it will bring
you driving pleasure.
Please read the manual carefully before driving
because it will help you learn the basic knowledge of
structure, function, operation and maintenance of the
Kart, which will be of great help for you to keep it in good
condition and drive more safely.
The materials and pictures provided in the Manual
is the latest information made according to the newest
products. There possibly are differences between the
contents in the manual and the actual situation of Kart
as a result of the improvement or changes of the
products. But the user has to operate by the real
TO ORDER PARTS, PLEASE VISIT WWW.GOKARTSUSA.COM
situation. The producer preserves the rights revision of
the Manual at any time, with no further information or
notice.
No one can copy, quote or print any part of the
Manual without permission from the producer.
Please contact the dealers if you have any
problems about the kart's operation and maintenance.
▲
Warning: Drivers and Parents should
read and follow the rules in Section 4 before driving
Off-road Kart, which is about the important events
and safety.
ORDER AT WWW.GOKARTSUSA.COM
Advertisement
Related Manuals for GOKARTS USA 110GKG-2 Series
Summary of Contents for GOKARTS USA 110GKG-2 Series
- Page 1 situation. The producer preserves the rights revision of the Manual at any time, with no further information or SERIES OFF-ROAD KART notice. USER’S MANUAL No one can copy, quote or print any part of the Manual without permission from the producer. Dear Sir or Madam, Please contact the dealers if you have any Thank you very much for your choice of this...
-
Page 2: Table Of Contents
Contents 1. Brief Introduction to Off-road Kart 2. Main Technical Parameter Table 3. Vehicle Assemblage 4. Important Events and Safety 5. Components and Operation Introduction 6. How to Drive Off-road Kart Properly 7. Maintenance of Off-road Kart Warranty Information 9. Schematic Diagram TO ORDER PARTS, PLEASE VISIT WWW.GOKARTSUSA.COM... -
Page 3: Brief Introduction To Off-Road Kart
1. Brief Introduction to Off-road Kart strength with reliable safety. 1.1 Brief Introduction Front independent suspension and articulated ◆ and complicated shock-absorber in the rear frame are adopted, which is comfortable and is of great help to prolong the life of the components of the whole vehicle. ◆... -
Page 4: Main Technical Parameter Table
2. Main Technical Parameter Table 125cc 110cc Item Parameters Item Parameters 1700×1100×1140 L×W×H (mm) 1680×1100×1105 L×W×H (mm) External External Dimension Dimension 1330 Axle Base (mm) 1330 Axle Base (mm) Weight Dry Weight (Kg) Weight Dry Weight (Kg) Passenger(s) Passenger(s) Single Cylinder, Four Single Cylinder, Four Type Strokes,... -
Page 5: Vehicle Assemblage
carburetor, put the other end to the input oil mouth on 3. Vehicle Assemblage the carburetor. 1. Take off the cover and fixing poles by using 6. Take out the hexangular screws and hexangular wrench. flange face nuts and fix the seat. 2. - Page 6 making sure that it is in the condition that safe driving at an excessive speed. can be obtained. You can inspect according to the ◆ You must do warming-up exercises before process and maintenance specified in the Manual and driving the vehicle. the explanation attached to the components, making Please read the Manual and all the warning notes sure that all the joints are tightened and safe.
-
Page 7: Components And Operation Introduction
◆ You must add petrol to the oil tank before you the sports ground or the local authorities when driving drive it for the first time. If it is four-stroke engine, you for pleasure. must add the engine oil in time according to the ◆... - Page 8 ☆ Gear-engaging Device ▲ Warning: You must keep the hands on Steer Wheel to avoid t he losing control of the kart when driving the Backward and slower Gear Forward and faster Gear off-road kart. Otherwise it may cause serious accidents even death.
- Page 9 ☆ Control Panel lever right and then move to the place necessary and loosen the hand lever. Attention: please resume the location of the hand lever. ☆ Ignition Key Turn the Ignition Key clockwise to the first gear and Braking Indicator will be on. Engine-start ：...
-
Page 10: How To Drive Off-Road Kart Properly
6. How to Drive Off-road Kart Properly the using requirement and the engine oil number is: SF 15W/40SF. 0.8L(Summer);SF10W/30SF.0.8L(Winter). ▲ Special Attention: ▲ Warning: 1. The petrol in the oil tank and the engine oil in the engine have been emptied for the safe transportation. Attention: Please don’t add petrol or engine oil Before starting, please add petrol and engine oil to the when the engine is running and keep the oil tank... - Page 11 Please don’t run at a too fast speed or even tread that the screw bolts of Steer Wheel is tight and reliable Gas Pedal to the bottom in the first few weeks driving and the front wheels turn in the same direction of Steer the new vehicle.
-
Page 12: Maintenance Of Off-Road Kart
7. Maintenance of Off-road Kart Tires 7.1 Routine Maintenance Turning The following is the routine maintenance table. It is System made according to the general situation and you must Front conduct the maintenance more frequently if the driving Suspension environment is worse and dust is more. System Engine Oil* Routine Maintenance Table... - Page 13 7.2 Spark Plug 7.3.1 Cleaning of Air Cleaner ☆ Take off the cap of Spark Plug. ☆ Take off the plastic protecting jacket. ☆ Dust the tray of Spark Plug. ☆ Take off the cover of Air Cleaner. ☆ Take out Spark Plug by wrench. ☆...
- Page 14 ☆ Please replace the braking pedal if it is not active. 7.7 Battery Please pay attention to spring, screw bolt, linchpin and ☆ You must connect the red wire to “+” pole and the the pipe when replacing. black wire to “-” pole when installing the battery. You 7.5 Accelerator should replace the battery if it cannot store electricity.
-
Page 15: Warranty Information
7.9 Steering System Routine screw inspections for the Steering Pole, Steering Machine and Turning Pole are necessary. Toe-in: You adjust them by pulling Pole and the distance is 2-4 mm. Warranty Information See Warranty (Service and Repair) Manual that contains warranty information. TO ORDER PARTS, PLEASE VISIT WWW.GOKARTSUSA.COM... - Page 16 此页为封二 TO ORDER PARTS, PLEASE VISIT WWW.GOKARTSUSA.COM...
- Page 17 中性 TO ORDER PARTS, PLEASE VISIT WWW.GOKARTSUSA.COM...
- Page 18 110/125GKG-2 Series Off-road Kart USER’S MANUAL TO ORDER PARTS, PLEASE VISIT WWW.GOKARTSUSA.COM...
