PixLite E16-S Mk3 Quick Start Guide
1 - Physical Connections
In order to connect to the PixLite E16-S Mk3, there must be a working power supply
between 5 – 24Vdc connected to the power input, which is the small screw terminal
marked "+" & "-". The screws should be loosened for wire insertion and then tightened
again, providing a highly robust and secure connection. Polarity for the connector is
clearly marked on the lid.

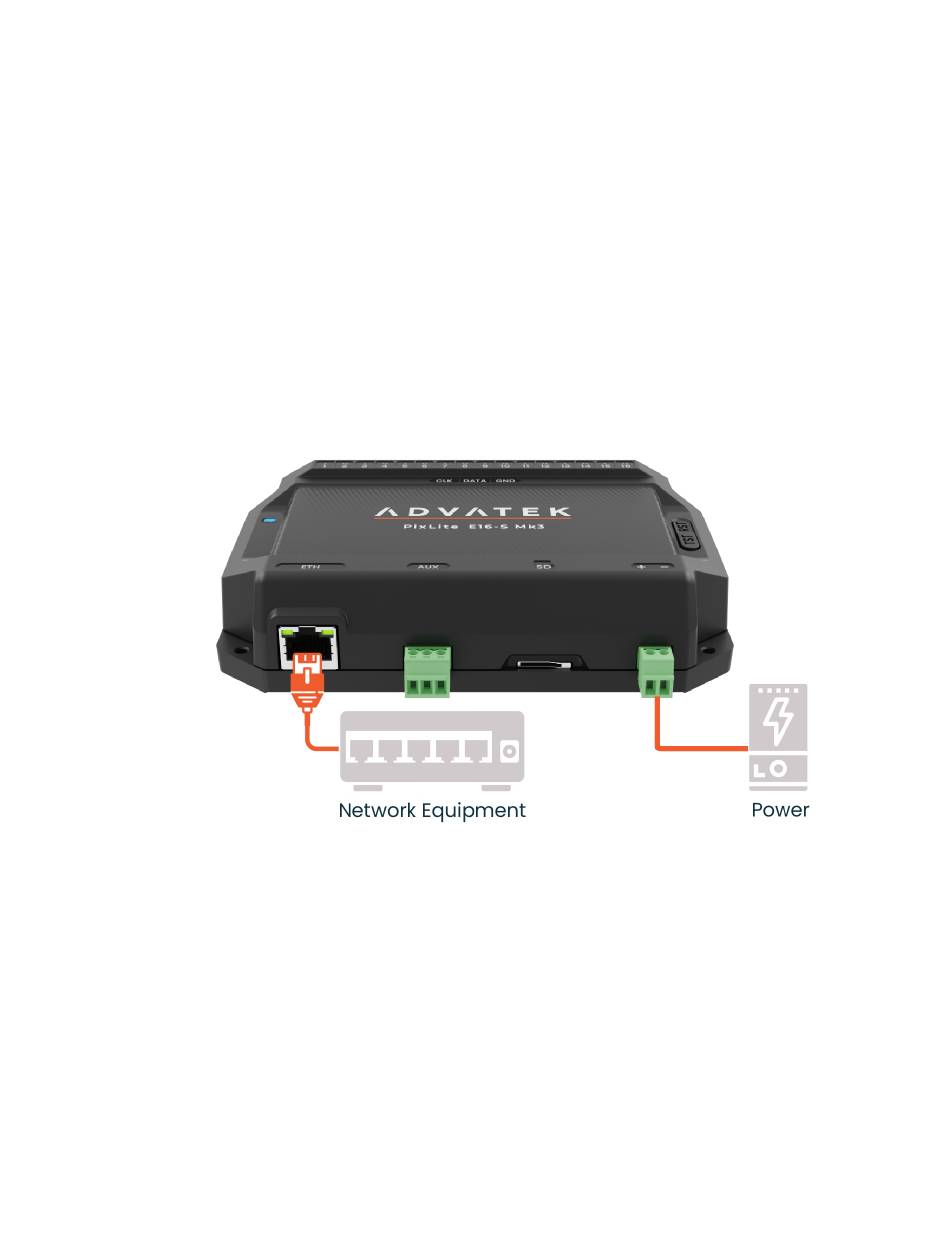

Figure 1: Connection Points
- 1 -
www.advateklights.com
PixLite E16-S Mk3 Quick Start Guide V20220722
Advertisement
Table of Contents
Related Manuals for Advatek Lights PixLite E16-S Mk3
Summary of Contents for Advatek Lights PixLite E16-S Mk3
- Page 1 PixLite E16-S Mk3 Quick Start Guide 1 - Physical Connections In order to connect to the PixLite E16-S Mk3, there must be a working power supply between 5 – 24Vdc connected to the power input, which is the small screw terminal marked “+”...
- Page 2 Advatek Assistant 3. 2.2 - Advatek Assistant 3 The easiest method for connecting to the PixLite E16-S Mk3 is by launching Advatek Assistant 3 to discover the device. Advatek Assistant 3 can be downloaded and installed, using the URL below: www.advateklights.com/advatek-assistant-3...
- Page 3 For a more in- depth understanding of the device, including physical installation, electrical connections, network connections, operation, and specifications, you should consult the PixLite E16-S Mk3 User Manual: www.advateklights.com/downloads/user-manuals/pixlite-e16-s-mk3 To learn how the Management Interface can be used for management, configuration, and monitoring the device's performance, see the PixLite Mk3 Management Guide: www.advateklights.com/downloads/user-manuals/pixlite-mk3-management-guide...
