RaPTr (Rapid Pallet Tracker) Gen 3e
QUICK START GUIDE
This guide is intended to help you get up and running quickly, but we strongly recommend that you familiarize yourself with
and refer to all documentation provided in its entirety.
QUICK START ASSEMBLY

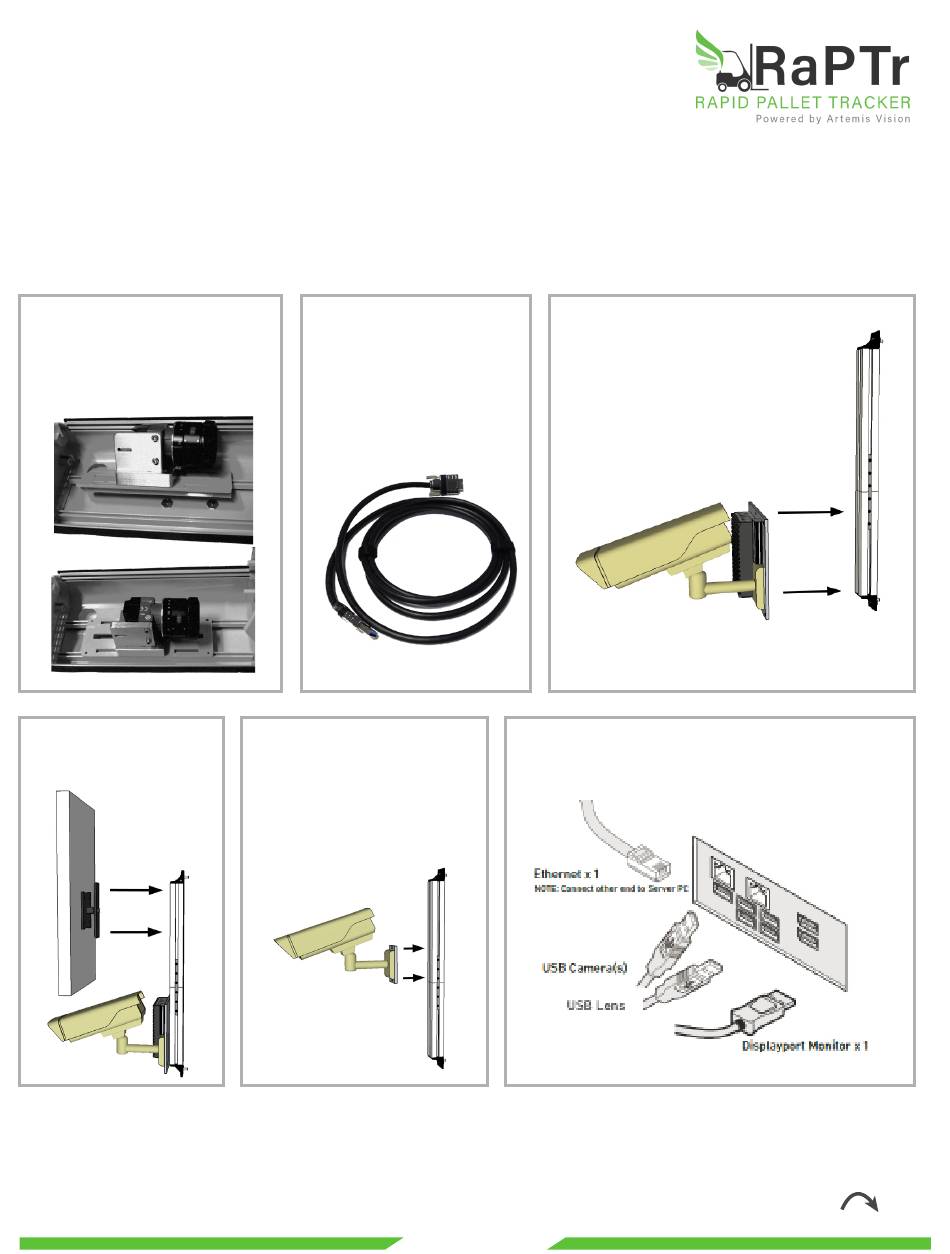

1
Open camera canister
and insert camera sled
into slots. There will be an
audible click.
4
Attach a monitor to
desired location.
(image is example)
2
Plug camera USB into
back of camera, the
lens USB into the lens,
and thread each cable
through hole at bottom
of camera canister.
5
(If applicable)
Attach additional cameras
where needed.
3
Attach main unit to
desired location.
(image is example)
6
Plug in all other cables. Connect your own
keyboard, monitor, and mouse as needed.
1
CONTINUED
