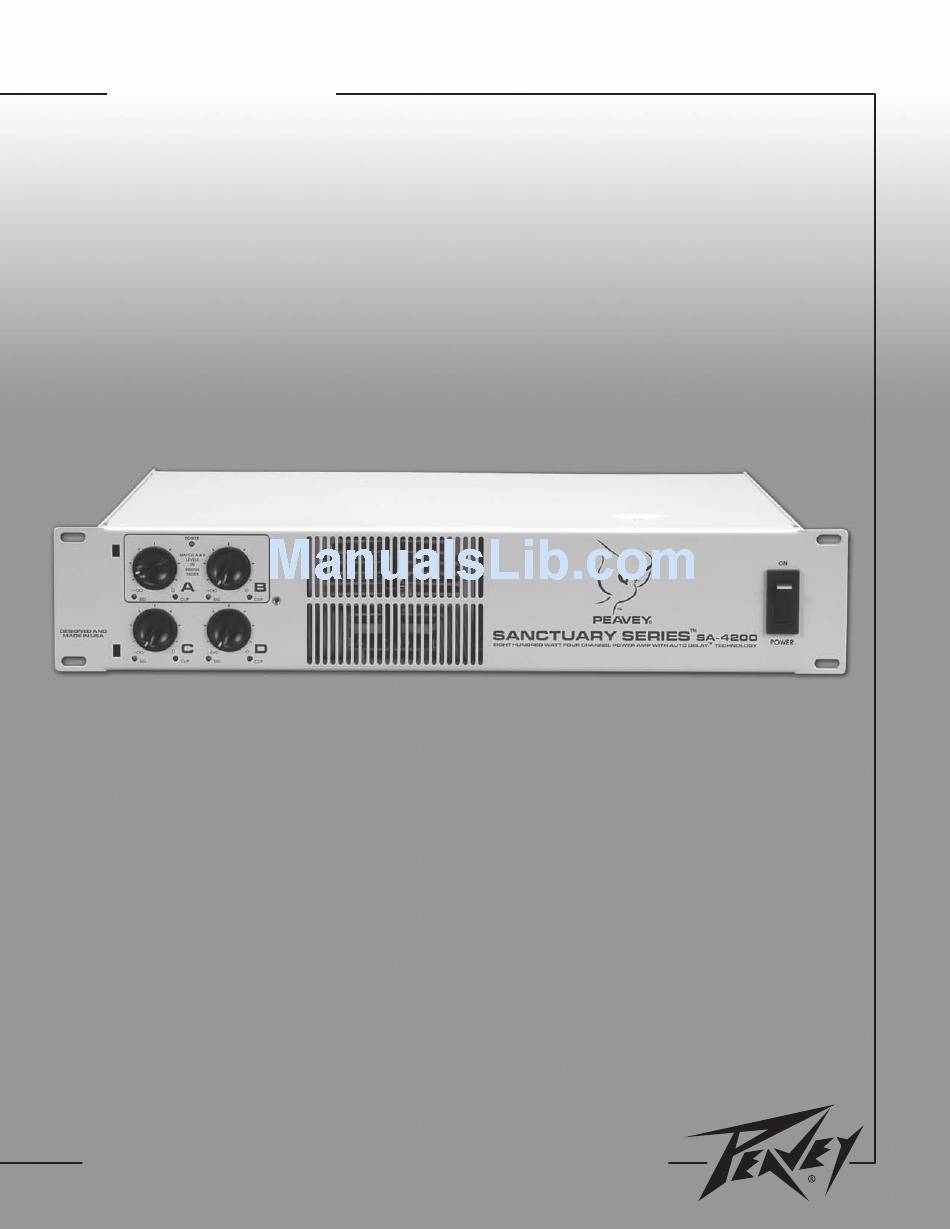

- Page 1 SA-4200 ™ Power Amplifier Operating Guide For information on other great Peavey products, go to your local Peavey dealer or visit us online at www.peavey.com or sanctuary-series.com...
- Page 2 ATTENTION: Afin de réduire le risque de choc électrique, ne pas enlever le couvercle. Il ne se trouve à l’intérieur aucune pièce pouvant être reparée par l’utilisateur. Confiez I’entretien et la réparation de l’appareil à un réparateur Peavey agréé. AVIS: Dans le but de reduire les risques d’incendie ou de decharge electrique, cet appareil ne doit pas etre expose a la pluie ou a l’humidite et aucun objet rempli de liquide, tel qu’un vase, ne doit...
-
Page 3: Important Safety Instructions
WARNING: When using electrical products, basic cautions should always be followed, including the following: Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any of the ventilation openings. Install in accordance with manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat. -
Page 4: Security Cover
Be sure to save the carton and all packing materials. Should you ever need to ship the unit back to Peavey Electronics, one of its offices, service centers or the supplier, use only the original factory packing. -
Page 5: Operating Precautions
Operating Precautions Make sure the mains voltage is correct and is the same as that printed on the rear of the amplifier. Damage caused by connecting the amplifier to improper AC voltage is not covered by any warranty. Note: Always turn off and disconnect the amplifier from mains voltage before making audio connections. Also, as an extra precaution, have the attenuators turned down during power-up. - Page 6 CHANNEL & MASTER FUNCTIONS OUTPUTS...
-
Page 7: Front Panel
DOES NOT BREAK BOTH SIDES OF THE MAINS. HAZARDOUS ENERGY MAY BE PRESENT INSIDE THE ENCLOSURE WHEN THE POWER SWITCH IS IN THE OFF POSITION. SANCTUARY SERIES SA-4200 EIGHT HUNDRED WATT FOUR CHANNEL POWER AMP WITH AUTO DELAY TECHNOLOGY POWER... -
Page 8: Rear Panel
8. CHANNEL A/B OUTPUT MODE SELECT (low-Z or 70 volt): This slide switch allows channels A and B of this amp to be configured for either conventional low-Z or for a 70 volt distribution loudspeaker system. - Page 9 BRIDGE A/B MODE 8 /140V OUTPUT MODE SELECT OUTPUTS A/ B LOW Z SANCTUARY SERIES A PRODUCT OF PEAVEY ELECTRONICS CORP DESIGNED AND MADE IN U.S.A. OUTPUTS C/D WWW.SANCTUARY-SERIES.COM BUILT UNDER U.S. PATENT NO. 6,515,859 AND PATENT PENDING INPUT OUTPUT...
- Page 10 BRIDGE A/B MODE 8 /140V OUTPUT MODE SELECT OUTPUTS A/ B LOW Z SANCTUARY SERIES A PRODUCT OF PEAVEY ELECTRONICS CORP DESIGNED AND MADE IN U.S.A. OUTPUTS C/D WWW.SANCTUARY-SERIES.COM BUILT UNDER U.S. PATENT NO. 6,515,859 AND PATENT PENDING INPUT OUTPUT...
-
Page 11: Auto Delay
AUTO DELAY™ Auto Delay Application Background Compared to light and electricity, sound travels along at a leisurely 1130 feet/second. This relatively slow speed affects many aspects of sound system design and operation. Reverberation as we know it would not exist if sound traveled at the speed of light. - Page 12 AUTO DELAY™ The Sanctuary Series™ SA-4200™ power amplifier with Auto Delay provides the tools necessary to easily install and align loudspeaker systems requiring delay. The delay can be set using any of three different methods. The installer can use his own test equipment to manually adjust the delay, or the delay test circuitry built into the SA-4200 can be used to manually or automatically set the delay.
- Page 13 AUTO DELAY™ SETUP PROCEDURE The delay time will be determined by alternately sending a short tone burst out of the main and auxiliary loudspeaker systems and measuring the time each tone burst takes to travel to the microphone. • Make sure that the amplifier and auxiliary loudspeaker system installation is operable by testing the system with the delay bypassed.
-
Page 14: Input Connections
INPUT CONNECTIONS The XLR connectors are wired as this: Pin 1 is chassis ground, Pin 2 is positive and Pin 3 is negative. Normally balanced inputs are wired using two-conductor shielded cable as shown in the following diagram. For unbalanced (single-ended) input, the single conductor is wired to Pin 2 and the shield in connected to Pins 1 and 3 as shown below. - Page 15 MODE CONFIGURATIONS The SA-4200™ amplifier’s inputs are configurable for two modes of operation, and its outputs for two modes of operation. INPUT MODES The channel inputs can be connected in three different ways to achieve the following modes of operation. Dual-Dual Mono Mode For Dual-Dual Mono operation, all four channels operate independently of each other, with their input attenuators controlling each respective input level.
- Page 16 MODE CONFIGURATIONS Bridge Mode Amplifier channel A and B may bridged together to make a single output with a power rating equal to the sum of both channel power ratings at twice the load rating of a single channel. In other words, bridging two amplifiers rated for 200 watts into 4 ohms will produce 400 watts into 8 ohms.
- Page 17 MODE CONFIGURATIONS OUTPUT MODES Each channel of the SA-4200™ can drive conventional low impedance loudspeaker loads (≥4 ohms) or a 70 volt constant-voltage audio distribution system directly. The setting of the output selector switches determines the mode for each pair of outputs. One switch controls channels A and B and the other switch controls channels C and D. Single channel selection is not possible.
-
Page 18: Bridge Mode
MODE CONFIGURATIONS DUAL A/B MODE 4 /70V BRIDGE A/B MODE 8 /140V OUTPUT MODE SELECT OUTPUTS A/ B LOW Z OUTPUTS C/D All outputs in 70V mode Example of a 70V constant-voltage distribution system: Low Z or 70V Line Low Z or 70V Line Use of a 70 volt matching transformer is possible with a 140 volt system by connecting the tap that is rated for 1/4 power (or less) to the desired 70 volt tap. - Page 19 SA-4200 Block Diagram ™...
-
Page 20: Channel Power Amplifier
Rated Power (all channels driven) Dual-Dual Mono Mode 4 Ohms 8 Ohms 70 Volts Minimum Load Impedance Bridge Mode (Ch A & B only) 8 Ohms 16 Ohms 140 Volts Minimum Load Impedance Frequency Response +0, -1dB @ 1 Watt... - Page 21 1/8 power Controls Front: 4 channel input signal attenuators, AC switch Rear: 2 output mode switches; Ch A & B bridge switch; HPF switches; AUTO DELAY™ bypass switches; AUTO DELAY setup switches Indicator LEDs Front: 4 Clip, 4 Signal, 1 Power...
- Page 22 Construction Dimensions Weight Power Requirements Test Conditions Due to our efforts for constant improvements, features and specifications listed herein are subject to change without notice. SA-4200 ™ 4-Channel Power Amplifier SPECIFICATIONS 16-gauge steel reinforced with 12-gauge rack ears Height: 3.50" (8.84 cm) 2 EIA rack spaces Width, front: 19.00"...
- Page 23 What Peavey Will Do We will repair or replace (at Peavey's discretion) products covered by warranty at no charge for labor or materials. If the product or component must be shipped to Peavey for warranty service, the consumer must pay initial shipping charges. If the repairs are covered by warranty, Peavey will pay the return shipping charges.
