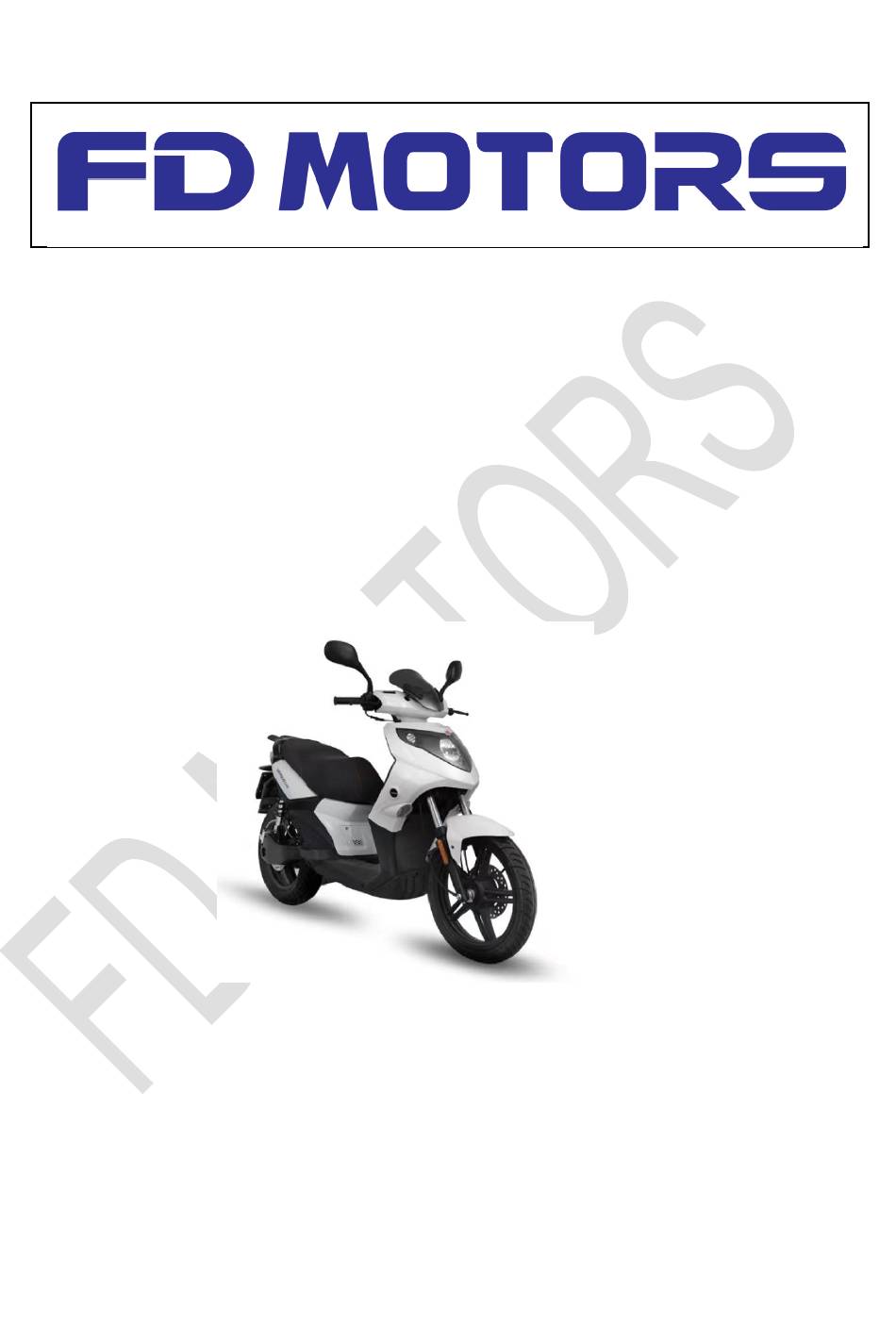

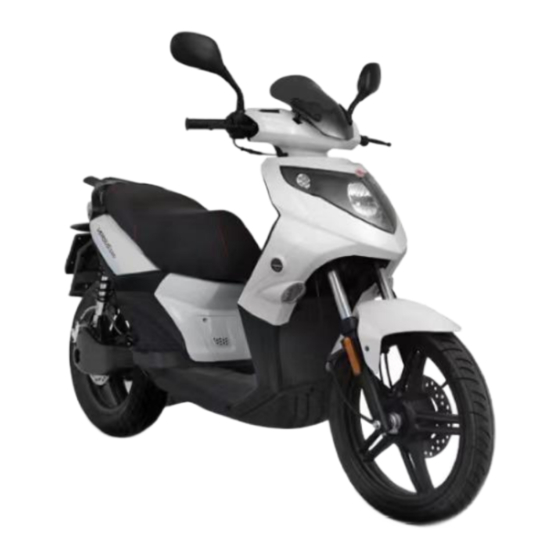

- Page 1 F3-A & F5-A E-SCOOTER Operation and Maintenance Instructions We strongly recommend that you read this entire manual before using your vehicle for the first time...
-
Page 2: Table Of Contents
Contents Page General Instruction before riding Page 2 Point Inspection Page 3 Assembly Instructions Page 4 Technical Specifications Page 5-6 Parts List Page 7 Front Display Page 8-10 Trouble code Page 11-12 Ignition Key Positions Page 13 Handle Bar Controls Page 14 Accelerating &... -
Page 3: General Instruction Before Riding
General Instructions Before Riding 1) To ensure the vehicle is functioning correctly, do a quick check of the vehicle’s tires and check that the brakes are working. (For more detailed maintenance instructions see the Maintenance Schedule). Your vehicle has been thoroughly checked by our engineers before delivery. -
Page 4: Point Inspection
Point Inspection before every use Item Action Front Brake Right Squeeze right hand brake and push the vehicle to see brake only control whether it rolls easily. If it does, then the brake must the front brake. be tightened. Tighten the bolt until the vehicle will no longer move with the brakes applied. -
Page 5: Assembly Instructions
Assembly Instructions Installing the mirrors Mirrors can be easily fixed to the handle bars between the grips and the brake handle. Screw in the mirror clockwise. The mirror that goes on the left controller is curved to the left and the mirror that goes on the right controller curves to the right. -
Page 6: Technical Specifications
Technical Specification F3 TECHNICAL DATA rear wheel side motor Motor (W) 72V 1500W Battery (V)(AH) 60V/35Ah Lithium battery Communication System speed range Speed 25KM/h 60KM 45KM/h 55KM E-mark certificate No. e13*168/2013*00689*00 Category L1e-B Charger Input Voltage 110V-230V Charger 60V 5A Charging Time 7-8 hours Max.Load... - Page 7 F5 TECHNICAL DATA rear wheel side motor Motor (W) 72V 3000W Battery (V)(AH) 60V/45Ah Lithium battery Communication System speed range Speed 75KM/h 87 KM E-mark certificate No. e13*168/2013*00691*00 Category L3e-A1 Charger Input Voltage 110V-230V Charger 84V 10A Charging Time 4.5 hours Max.Load 265 Kg Climibing Capacity...
-
Page 8: Parts List
Parts List A. Head Lamp B. Rear View Mirror C. Throttle and Brake Lever D. Front Turning Signal Lamp E. Front Shock Absorber F. Front Tire G. Seat H. Side Stand I. Center Stand J. Rear Side Motor K. Rear Tire L. -
Page 9: Front Display
Dashboard Part Item Function Left Indicator Light is on when indicator is on +12V, green color Right Indicator Light is on when indicator is on , green +12V color High beam Light is on when high beam is on +12V, blue color MCU light Light is on when there is any problem... - Page 10 1. Battery SOC: the battery SOC% is controlled by CAN communication. LCD display SOC(%) by CAN ～ segment light on ～ segment light on ～ segment light on ～ segment light on ～ segment light on ～ segment light on ～...
- Page 11 3.1.LCD SEGMENT OPERATION 3.2.BUZZER OPERATION: After KEY is ON, if get MCU Stand by, the buzzer beeping one time for 2 second. And the “FD motors” sound appear. It means it ready to go. 4. BATTERY CAPACITY WARNING SEGMENT: (When entering 0~20% SOC by can)
-
Page 12: Trouble Code
6. DTC (Diagnostic Trouble Code) 6-1. BATTERY DTC Express CAN_Messa at the speedometer Troubles Name Battery Battery Byte No data BMS CAN Signal Failure Charging Over Voltage Charging Over Current Discharging Under Voltage Discharging Over Current Short circuit Charging Over Temperature Discharging Over Temperature Charging Under Temperature Discharging Relay Failure... - Page 13 6-2. MCU DTC Express CAN_Message at the Troubles Name Byte speedometer No data MCU CAN Signal Failure Identification error Over voltage Low voltage Motor did not start Internal volts fault Over temperature Throttle error at power-up Internal reset Throttle open or short Motor over-temperature Hall Galvanometer sensor error...
-
Page 14: Ignition Key Positions
Ignition Key Key Position Description Key cannot be taken out when power is on. Key can be taken out when power is off Lock handle To prevent theft, turn the Handle Bar to the far left and turn the key into the lock position. The key can be taken out when handle bar is in the lock position. -
Page 15: Handle Bar Controls
Left handle bar controls High Beam – Push switch up Headlight Switch Low Beam – Push switch down Left Turn Signal – Slide switch to the left Signal Switch Right Turn Signal – Slide switch to the right Turning off Signal – Press central release button Sounds Horn –... - Page 17 Accelerating and Braking Throttle Tips Turn the key to the ‘ON’ position, Press the starting button and you will hear a beeping sound. it means it is ready to go. And FD motors will be appear on dashboard. .then you can start to run the scooter.
-
Page 18: Battery & Charging
Battery Gauge and Charging Instructions Grid Description 10 grid While riding, when the battery is fully charged the dashboard shows 10grid. 1 grid When the dashboard shows 2 grid, that means there is not much power remain in battery. Ride at” Lower speed” you can get more range and find the nearest charging point. -
Page 19: Performance
Battery Longevit The driver should, if possible, charge the scooter if the SOC lower than 10% as this will help the battery’s life. The life of the Lithium battery is 1000-1200 deep cycles (100% deep discharged). Note: Pls stop the charging when the charging display is around 90%. -
Page 20: Maintenance
Maintenance This electric motorbike represents a new generation of environmentally friendly two-wheeled transportation. Therefore, good maintenance will play a major role in keeping your vehicle in good working condition and prolonging the life of the batteries. Please follow these suggestions: •... -
Page 21: Maintenance Schedule
Maintenance Schedule Mileage 1000 2000 3000 4000 5000 6000 Maintenance Battery Change motor oil Charger Tire Pressure Tire Wear Brake System Brake Pad Nuts and Bolts Mileage 7000 8000 9000 10,000 11,000 12,000 Maintenance Battery Change motor oil. Charger Tire Pressure Tire Wear Brake... -
Page 22: Frequently Asked Questions
Frequently Asked Questions 1. Fully charged, what is the range of the electric vehicle? A. The Range is affected by the weight of rider, the type of terrain and the speed at which the vehicle is driven. Under optimal conditions keep a steady 45km/h rate speed), a range of (93 km) has been recorded on a single charge. - Page 23 7. Do you need to wear a helmet to drive the electric vehicle? A. For safety reasons we always advise the use of a helmet. However, local law dictates whether or not riding vehicle law obligates a helmet. 8. Is it easy to recharge the batteries? A.
- Page 24 13. Why is this product the best available in the world today? It has a Brushless motor. We emphasize "brushless" not just because this is the latest technology, but because these permanent magnet motors are supremely reliable! These more expensive motors produce high torque at low speeds, keeping an acceptable balance of torque and energy across the whole speed range.
-
Page 25: Special Maintenance Warning Signals
Troubleshooting Problem Condition Check Solution 1.Check DC-DC 1. Light off, When I turn my 1.Change DC-DC input and output horn off, press vehicle on convertor , Fasten plugs, voltage is work or starter button, nothing happens. or change fuse. not, check the plug is throttle, motor tighten or not, check （lights off，...
