Page 1

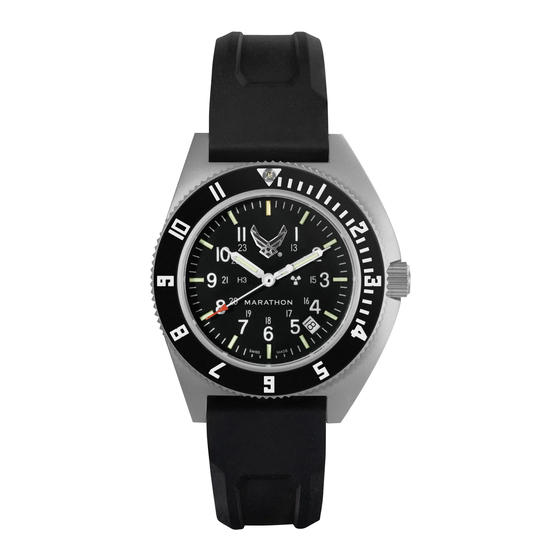

SSNAV-D STEEL NAVIGATOR W/ DATE MANUAL PART NO. WW194013 SWISS MADE. CANADIAN DESIGNED. NSN: 6645-01-698-4275...
Page 2
The original Steel Navigator was developed in partnership with Kelly Air Force Base For detailed specs, reviews and additional in 1986 under NSN: 6645-01-150-8115. Marathon has now re-engineered Navigator information about the SSNAV-D watch, scan the QR in Steel under NSN: 6645-01-698-4275 with improvements to the function, features, code or visit our website online.
BEZEL MARKER WITH TRITIUM SPECIFICATIONS TRITIUM HOUR MARKERS 41mm Case Diameter MINUTE HAND WITH TRITIUM TUBE HOUR HAND WITH TRITIUM TUBE 11mm Case Thickness SCREW-DOWN CROWN 48mm SECONDS HAND Lug to Lug DATE 20mm Drilled Lug Width 316L Stainless Steel Case BI-DIRECTIONAL BEZEL 20MM LUGS...
TECHNICAL INFORMATION Sapphire Crystal Type Screw-Down Crown Type ETA F06.412 HeavyDrive-PreciDrive Quartz Bi-Directional Movement Bezel Type 12 Hour Number of Jewels Bezel Scale ± 10 s/year Accuracy Scale Quantity Date 1 - 12 (13 - 24) Calendar Scale Range 10 ATM – 100 meters (300 feet) Tritium Gas Tubes Luminous Features Submersibility...
TRITIUM GAS TUBES WATER RESISTANCE The SSNAV-D uses self-contained tritium gas tubes to ensure constant The SSNAV-D is made from 316L surgical-grade stainless-steel with a visibility in low light situations. A gas tube is placed on each hour marker screw-down crown and a synthetic sapphire crystal that allow it to operate and hand.
SWISS CRAFTMANSHIP The SSNAV-D is equipped with a low-power consumption movement, Inside the SSNAV-D is a Swiss-made, 3 jewel, ETA F06.412 HeavyDrive- with an EOL (End-of-Life) display, whereby the seconds hand advances in PreciDrive, quartz movement. These watches are hand-assembled in 4 second increments when the battery needs a replacement.
Page 7
Regular servicing every four to six years will help to keep your movement running with Marathon-level precision. For servicing requests, contact our team Once the crown of the watch is fully secured our SSNAV-D Watch is rated directly at service@marathonwatch.com...
Page 8
SETTING THE TIME 1. Unscrew and pull the crown from position 1 to position 4. 2. Turn the crown clockwise to adjust the time. 3. Ensure correct AM/PM settings so that the date wheel changes at midnight and not mid-day.
Page 9
SETTING THE DATE 1. Unscrew and pull the crown from position 1 to position 3. 2. Turn the crown clockwise to change the date. CAUTION: Do not adjust the date wheel between 9pm and 3am as this may damage the watch movement.
Page 10
LOCKING THE CROWN From position 2, push the crown into position 1 and rotate clockwise to lock the crown back into place. The crown must be screwed down in position 1 for optimal water-resistance.
Page 11
BI-DIRECTIONAL 12-HOUR GMT BEZEL The SSNAV-D comes with a 12 hour GMT bezel which allows for easy tracking of time in two different time zones. Rotate your bezel to align the 12 o'clock bezel marker to local time-zone offset. Read the watch as normal for home time, and off the bezel for local time.
WARRANTY & SUPPORT Every newly purchased Marathon Watch comes with an International warranty Marathon Watch Company Ltd. warrants this item to be free from defects in material covering the timepiece for any manufacturing defects within the first two-years and workmanship under normal use in accordance with care and usage instructions of its life.
Page 13
Marathon Watch has remained family owned and operated since our founding in 1939. This watch has been hand assembled by our team with the utmost craftsmanship and care. Mitchell Wein, President...
Page 14
SSNAV-D MANUEL POUR NAVIGATEUR EN ACIER AVEC DATE PIÈCE NO. WW194013 FABRIQUÉ EN SUISSE. CONÇU AU CANADA. NSN : 6645-01-698-4275...
Page 15
Navigateur en acier est développée avec la base aérienne de Kelly en 1986 sous la informations additionnelles sur la montre SSNAV-D, balayez le série 6645-01-150-8115. Navigateur en acier est remaniée par Marathon sous NSN : code QR ou visitez notre site web en ligne.
REPÈRE DE LUNETTE AVEC TRITIUM CARACTÉRISTIQUES INDEX DES HEURES AU TRITIUM AIGUILLE DES MINUTES AVEC 41mm Diamètre du boîtier AIGUILLE DES HEURES AVEC TUBE AU TRITIUM 11mm Épaisseur du boîtier TUBE AU TRITIUM COURONNE VISSÉE 48mm AIGUILLE DES SECONDES D'une patte à l'autre DATE 20mm Largeur de la roue percée...
INFORMATIONS TECHNIQUES Saphir Type de cristal Vissée Type de couronne ETA F06.412 HeavyDrive-PreciDrive Quartz Bidirectionnel Mouvement Type de lunette 12 heures Nombre de bijoux Echelle de la lunette ± 10 s/an Précision Quantité d'échelle Date 1 - 12 (13 - 24) Calendrier Échelle 10 ATM - 100 mètres (300 pieds)
Page 18
TUBES DE GAZ TRITIUM RÉSISTANCE À L'EAU La SSNAV-D utilise des tubes à gaz tritium autonomes pour assurer une La SSNAV-D est fabriquée à partir d'acier inoxydable de qualité visibilité constante dans les situations de faible luminosité. Un tube à gaz chirurgicale 316L avec une couronne vissée et un cristal saphir synthétique...
Page 19
EXPERTISE SUISSE Le SSNAV-D est équipé d'un mouvement à faible consommation La SSNAV-D renferme un mouvement à quartz ETA F06.412 HeavyDrive- d'énergie, avec un affichage EOL (End-of-Life), doté d’aiguille des PreciDrive, fabriqué en Suisse et doté de 3 rubis. Ces montres sont secondes qui avance par incréments de 4 secondes lorsque la pile doit...
Page 20
état avec une précision de niveau Marathon. Pour toute demande de service, contactez notre équipe directement à Une fois la couronne de la montre bien fixée, notre montre SSNAV-D est classée service@marathonwatch.com pour 10ATM et est étanche jusqu'à une profondeur de 100 mètres (300 pieds).
Page 21
RÉGLAGE DE L'HEURE 1. Dévisser et tirer la couronne de la position 1 à la position 4. 2. Tournez la couronne dans le sens des aiguilles d'une montre pour régler l'heure. 3. Veillez à ce que les réglages AM/PM soient corrects afin que la roue de la date change à...
Page 22
SETTING THE DATE 1. Dévisser et tirer la couronne de la position 1 à la position 3. 2. Tournez la couronne dans le sens des aiguilles d'une montre pour changer la date. ATTENTION : Ne pas ajuster la roue de la date entre 21 heures et 3 heures du matin, car cela pourrait endommager le mouvement de la montre.
Page 23
VERROUILLAGE DE LA COURONNE Depuis la position 2, poussez la couronne en position 1 et tournez dans le sens des aiguilles d'une montre pour verrouiller la couronne en place. La couronne doit être vissée en position 1 pour une étanchéité optimale.
Page 24
LUNETTE BI-DIRECTIONNELLE 12 HEURES GMT La SSNAV-D est équipée d'une lunette GMT de 12 heures qui permet de suivre facilement l'heure dans deux fuseaux horaires différents. Tournez votre lunette pour aligner le repère de la lunette à 12 heures sur le décalage du fuseau horaire local.
Page 25
GARANTIE & ASSISTANCE Marathon Watch Company Ltd. garantit, pendant 2 ans à compter de la date d'achat Chaque montre Marathon achetée depuis peu est livrée avec une garantie auprès d'un distributeur agréé, que cet article est exempt de défauts de matériaux Internationale couvrant la pièce d'horlogerie contre tout défaut de fabrication...
Page 26
Marathon Watch a été dirigé et a perduré comme entreprise familiale depuis notre fondation en 1939. Cette montre a été assemblée à la main par notre équipe en y apportant le plus haut soin et le meilleur savoir-faire. Mitchell Wein,...
