HIGH STRENGTH STRUCTURAL KIT (HSSK)
LIST OF COMPONENTS:
(2) 22-796395 STRUT DISTRIBUTOR MODULE
(1) 22-796399 TRI-BRACE
(2) 22-796680 TRI-BASE
(1) 22-890520 32' HOSE, YELLOW W/COUPLINGS
(1) 22-890521 32' HOSE, RED W/COUPLINGS
(1) 22-890522 32' HOSE, BLACK W/COUPLINGS
TOTAL KIT WEIGHT: 67.15lbs (30.46 KG)

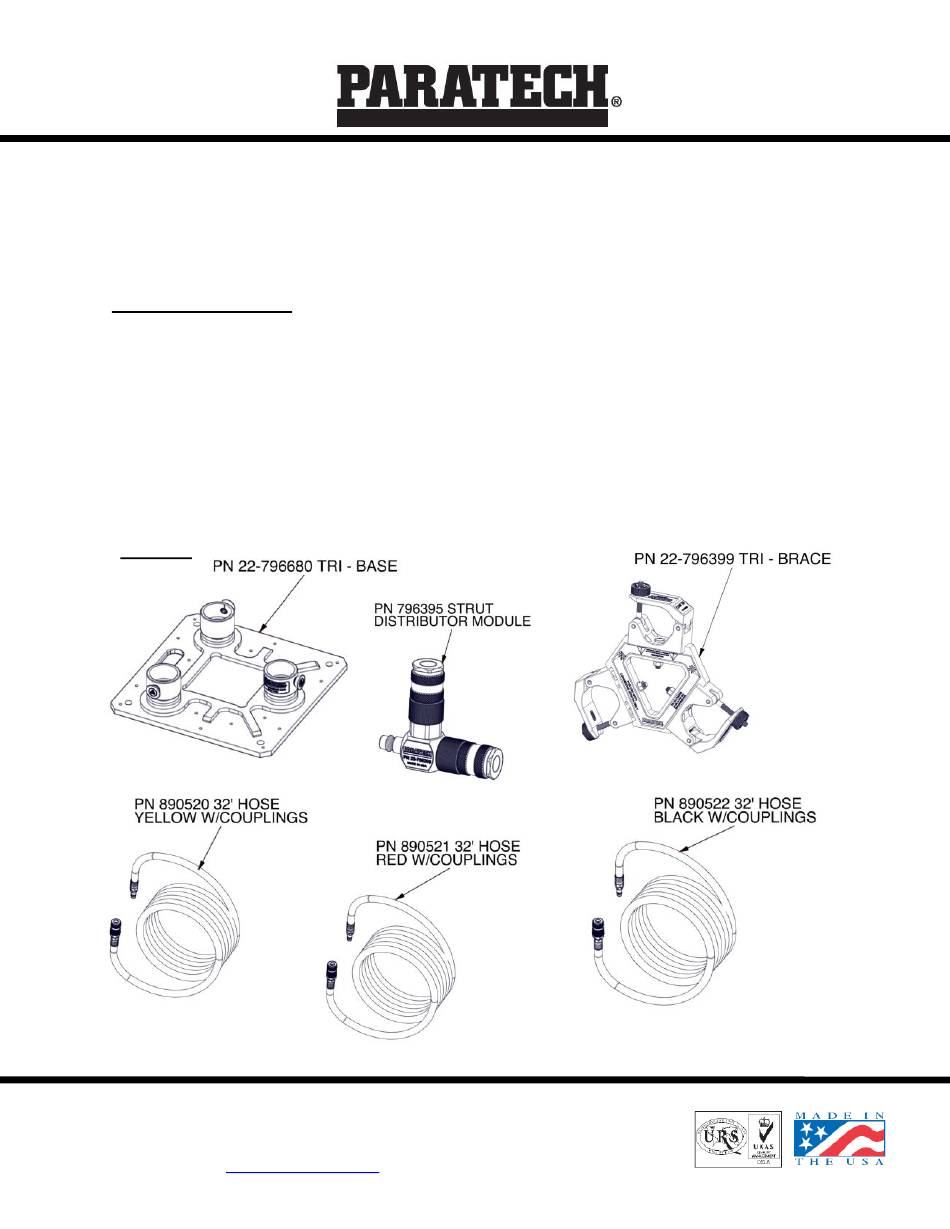

FIGURE 1
Paratech Incorporated
P.O. Box 1000, Frankfort, IL 60423 USA
Customer Service: 800.435.9358
Phone: 815.469.3911 Fax: 815.469.7748
www.paratech.com E-mail:
paratech@paratech.com
- INSTRUCTION SHEET -
PN: 22-796HSSK
Paratech Europe, Branch of Paratech Inc.
P.O. Box 174, 5260 Odense S, Denmark
www.paratech.com Email:
Paratech@paratech.dk
Advertisement
Table of Contents
Related Manuals for paratech 22-796HSSK
Summary of Contents for paratech 22-796HSSK
- Page 1 (1) 22-890522 32’ HOSE, BLACK W/COUPLINGS TOTAL KIT WEIGHT: 67.15lbs (30.46 KG) FIGURE 1 Paratech Incorporated Paratech Europe, Branch of Paratech Inc. P.O. Box 1000, Frankfort, IL 60423 USA P.O. Box 174, 5260 Odense S, Denmark Customer Service: 800.435.9358 www.paratech.com Email: Phone: 815.469.3911 Fax: 815.469.7748...
- Page 2 1. Erect supporting structure as shown in Figure 2 on a flat surface, then lift into place. Refer to guidelines in the Paratech Support System Manual for strut load and length parameters. 2. The Tri-Brace must be installed after Struts are installed onto the first Tri-Base.
- Page 3 LOAD RATING: Maximum Working Load for the assembled system will be 3X the tabulated load data on a LongShore Strut label at the applied length. MAINTENANCE: Inspect kit components for physical damages such as; loose hardware, deep scratches/gouges, surface cracking, cut hose, or leaking couplings. ...
- Page 4 HSSK LIMITED WARRANTY...
