Flowzone CYCLONE 3 Operation Manual page 11

CYCLONE 3
OPERATION GUIDE
FZVAAJ-3
4

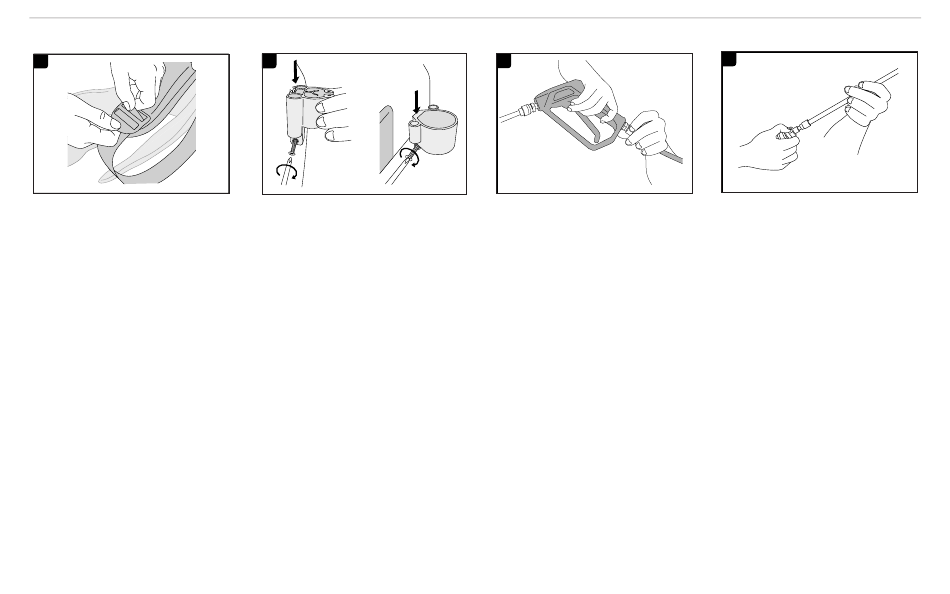

If the shoulder straps
arrive detached, attach the
bottom to the adjustable
buckle using the same
method as before.
5
A B
Slide the top wand holster
onto protruding holster
mount on the sprayer tank.
Insert a nut on one side of the
hexagonal slot on the bottom
of the holster and screw
the bolt through the other
side using a Phillip' s head
screwdriver until the bolt
fastens into the nut. Repeat
for the bottom holster/slot.
6
Take the spray gun (10) and
attach it to the threaded
fitting on the end of the hose
(12). Tighten the fitting to
ensure the gasket properly
seals the connection.
- 11 -
© WESSOL, LLC 2022
7
If spraying with the
stainless steel spray wand
(9), pull back on the collar
of the quick-connect fitting
on the spray gun and push
the collar back into its
original position.
