Petlibro PLAF103 User Manual

Petlibro PLAF103 User Manual

Granary automatic pet feeder-wifi control 5l double food tray
Hide thumbs Also See for PLAF103:

Advertisement

Scan for more details
www.petlibro.com
PETLIBRO Granary Automatic Pet Feeder-WiFi Control 5L Double
Food Tray
Model: PLAF103
©Libro Corp. All Rights Reserved.
Manufacturer: Shenzhen Libro Technology Co., Ltd.
Address: Building 3, Cloud Park, Shenzhen, China, 518129
CAN ICES-3 (B)/NMB-3(B)
FCC ID: 2A3DE-PLAF103
Made in China
PLAF103_V1.0
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Granary Automatic Pet Feeder-WiFi Control
5L Double Food Tray
User Manual
Model: PLAF103
Read this manual before using the product, and keep it
for future reference.
This product is intended for household use only.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLAF103 and is the answer not in the manual?

Questions and answers

DANAN Barnett
August 1, 2025

If feeder is accidentally disconnected will the program be wiped out?

Summary of Contents for Petlibro PLAF103

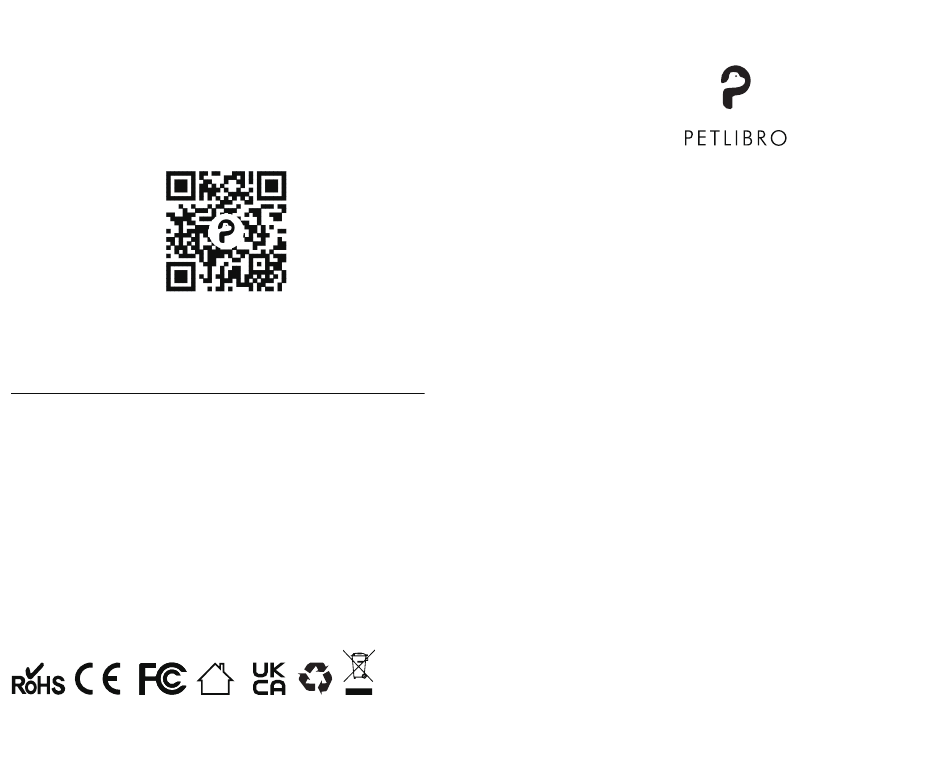

  • Page 1 Scan for more details Granary Automatic Pet Feeder-WiFi Control www.petlibro.com 5L Double Food Tray User Manual PETLIBRO Granary Automatic Pet Feeder-WiFi Control 5L Double Model: PLAF103 Food Tray Model: PLAF103 ©Libro Corp. All Rights Reserved. Manufacturer: Shenzhen Libro Technology Co., Ltd.
  • Page 2: Table Of Contents

    Contents SAFETY GUIDELINES 1 WARRANTY 3 IN THE BOX 4 PRODUCT OVERVIEW 5 BUTTONS AND INDICATORS OVERVIEW 7 SET UP THE FEEDER 9 CONTROLLING VIA APP 15 CLEAN AND CARE 24 SPECIFICATIONS 29 TROUBLESHOOTING 29...
  • Page 3: Safety Guidelines

    SAFETY GUIDELINES ! WARNING CAUTION • Dispose of all packaging materials properly. Some items may • Do NOT install or store the pet feeder where it will be exposed be packed in plastic bags; these bags could cause su ocation; to weather or temperatures below 4°C / 39.2°F.
  • Page 4: Warranty

    1 X User Guide Kit • Lifetime support For guidance on product use and warranty extension, please contact our brand after-sales sta via email: support@petlibro.com. If any questions related to orders, please contact the seller through the shopping platform. 1 X Power Adapter...
  • Page 5: Product Overview

    PRODUCT OVERVIEW 1: Lid 2: Seal Strip 3: Food Tank 4: Transparent Window 5: Tank Base 6: Anti-Clog Detector 7: Control Panel 8: Display Panel 9: Food Outlet 10: Feeder Base 11: Stainless Steel Bowl 12: Bowl Holder 13. Meal Splitter 14: Desiccant Box 17: Battery Compartment 15: Power Jack...
  • Page 6: Buttons And Indicators Overview

    BUTTONS AND INDICATORS OVERVIEW Indicators Overview Buttons Overview Food level indicator Light up red if the food level is low. O if the tank has enough food. Unlocked Button Manual Feeding Button To unlock the control In the unlocked state, press Lock indicator panel, press and hold the once to dispense 1 portion...
  • Page 7: Set Up The Feeder

    SET UP THE FEEDER Assembly and Prepare for Setting 2.Twist anticlockwise to open the lid. 1. Connect Power 1) Plug the 5V power adapter into a power socket and the USB cable into the USB port on the back of the feeder. 2) The LED display will light up automatically to indicate the feeder is on.
  • Page 8 4. Add dry pet food to the food tank. 6. Take out and install the double food tray. Notes: Attach the double food tray to the notch underneath the feeder base. • To prevent uneven food dispensing, please add enough pet food to the visible level.
  • Page 9 1) To get equal amount of food, move the splitter to the Note: To remove the bowl holder from the feeder base, move right until it can't move. the meal splitter away from the food outlet. Left = Right 2) To get uneven amount of food, move the splitter to the left, more food will be dispensed to the right bowl.
  • Page 10: Controlling Via App

    System Requirements iPhone on iOS 10.0 or later; smartphone on Android 5.0 or later Install the APP & Log in 1. Search “PETLIBRO LITE” in App Store or Google Play download the App. 2. Sign up and log into your account.
  • Page 11 1) Turn o the Bluetooth on your phone. 2) Open the App, tap "Add Device" or "+" in the upper right corner, choose PLAF103 WiFi Feeder, tap the icon at the top right corner and choose AP mode. 5 ) Feeder connected, start to set the feeding time and portions, record...
  • Page 12 3) Con rm the WiFi indicator on the feeder is ashing. Set Meal Plan (Note: If the WiFi indicator on the feeder is not ashing, hold the On Schedule page, tap the Add icon, choose feeding time, unlocked button for 5s to unlock, the lock indicator goes out. Keep feeding days, and feeding portions.
  • Page 13 Record a Meal Call & Set Playback Times View the Logs On Log page, you can view the feeding records and abnormal icon in the upper right corner → Recording, then tap the noti cations. Add icon, follow the instructions on the screen to record a meal call, set the times the meal call play.
  • Page 14: Clean And Care

    Reset the Feeder on App CLEAN AND CARE icon in the top right corner → Factory Reset, the feeder It’s recommended to clean the feeder regularly for the health of emits beeps: Di, DiDi, the WiFi indicator keeps ashing, it indicates pets.
  • Page 15 2. Twist anticlockwise to remove the lid and take out the 4. Twist anticlockwise to remove the tank base. desiccant bag from the inner box under the lid. 5. Thoroughly rinse and air dry the lid, tank and tank base . 3.
  • Page 16 Clean the Bowls and Holder 6. Re t them to the machine. Turn the tank base clockwise until it snaps into place 1. Remove the bowl holder from the feeder base. 7. Then install the tank and lid. 2. Rinse the stainless steel bowls and holder, and air dry them thoroughly before re tting them to the machine.
  • Page 17: Specifications

    SPECIFICATIONS Problem Solution 1)Check whether the electricity is cut o . The indicators are o . Model PLAF103 2)Check whether the indicator function Capacity 5 liters is o on the App. Power DC 5V power adapter; I can’t remove the food...
