  • Page 1 8-Inch Secondary Enclosure Installation Guide...
  • Page 2 EQUIRED OOLS ..................3 NSTALLATION UIDES Install an 8-Inch Secondary Enclosure ............3 Install a DT2011B Data Logger ..............7 Install a DT2055B Data Logger ..............9 Install an Affinity Data Logger ..............10 ........... 12 ERVICE EPAIR AND ONTACT...
  • Page 3: Product Overview

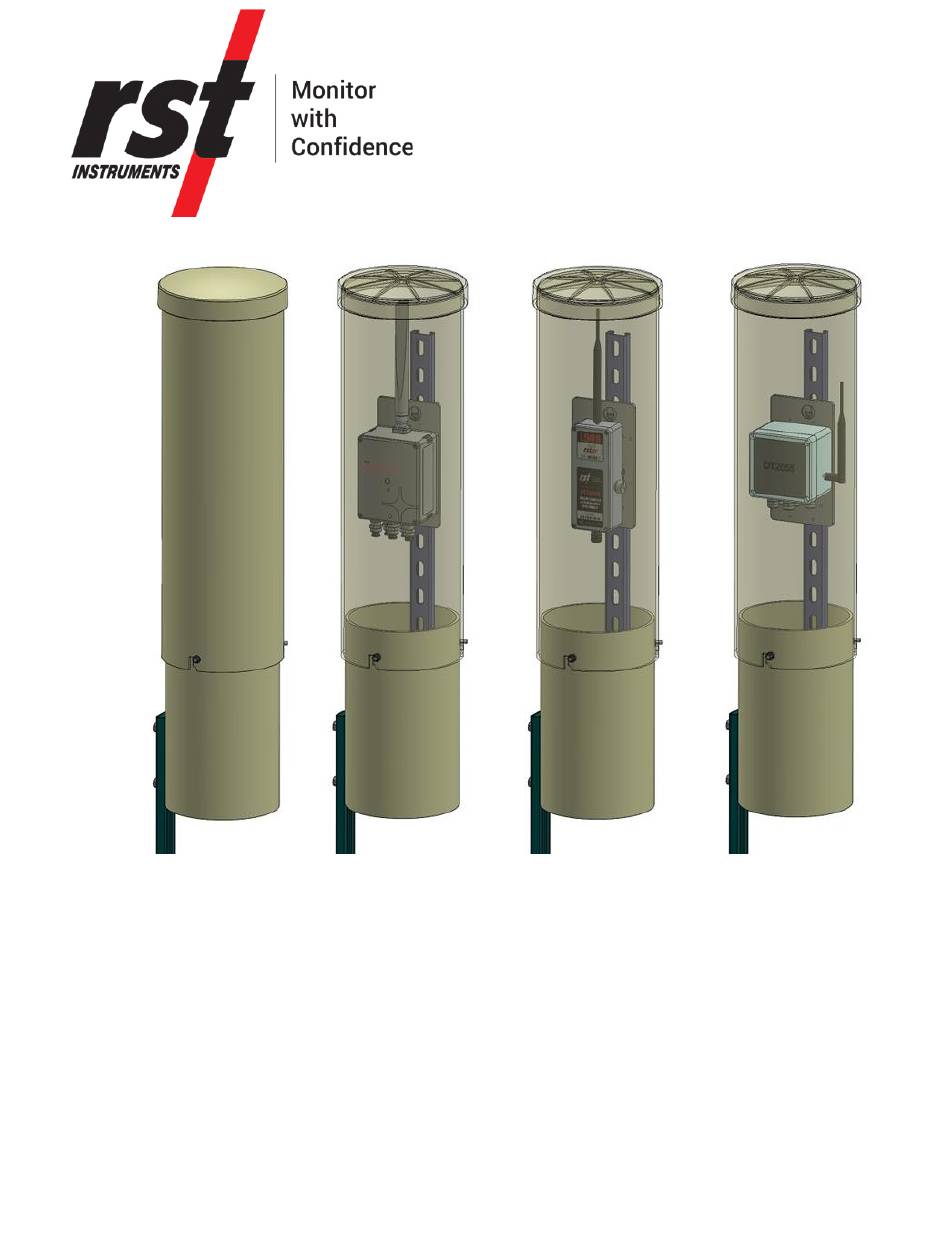

    RST’s 8-Inch Secondary Enclosure is built for use in remote locations where data loggers will require protection from natural elements and tampering from vandals or wildlife. Designed for use with RST’s Affinity, DT2011B and DT2055B data loggers, this enclosure fully meets most site protection and security requirements.
  • Page 4 3. Unscrew the 36-inch ground stake from the lower enclosure. NOTE: Do not remove the mounting post. Do not discard the M10 hex head screws, washers, and nuts. You will need them to reinstall the ground stake. ELI0095A RST Instruments Ltd. Page 4...
  • Page 5 Make sure to leave 6” of the stake above the ground. NOTE: Depending on the soil you are installing on, you may need a hammer, a mallet, or an appropriate tool to drive the ground stake to the ground. ELI0095A RST Instruments Ltd. Page 5...
  • Page 6 NOTE: Make sure the lower section of the enclosure is as close to the ground as possible without touch the ground surface. 6. Install the data logger. Refer to the procedure specific to the data logger. • Install a DT2011B Data Logger • Install a DT2055B Data Logger •...
  • Page 7 DT2011B D NSTALL A OGGER To install a DT2011B data logger to a secondary enclosure, complete the following steps: 1. Remove the front lid from the data logger. 2. Find the mounting plate and the appropriate screws (check the label on the bag) for the data logger in the secondary enclosure package.
  • Page 8 Secondary Enclosure Installation Guide 7. Twist the upper enclosure onto the lower enclosure. Tighten the M6 hex head locking screw. NOTE: The see-through picture on the right is for illustration purposes only. ELI0095A RST Instruments Ltd. Page 8...
  • Page 9 4. Screw the data logger onto the mounting plate with the antenna pointing up. 5. Screw the front lid back onto the data logger. 6. Slide the mounting plate downward on the mounting post to lock in place. ELI0095A RST Instruments Ltd. Page 9...
  • Page 10 2. Insert the mounting screws through the back of the mounting plate. 3. Screw the mounting plate onto the data logger with the antenna pointing up. ELI0095A RST Instruments Ltd. Page 10...
  • Page 11 Secondary Enclosure Installation Guide 4. Slide the mounting plate downward on the mounting post to lock in place. 5. Twist the upper enclosure onto the lower enclosure. Tighten the M6 hex head locking screw. ELI0095A RST Instruments Ltd. Page 11...
  • Page 12 Business hours: 7:30 a.m. to 5:00 p.m. (PST) Monday to Friday, except holidays RST UK Office Address: Unit 4 Charles Industrial Estate Stowupland Road, Stowmarket Suffolk, UK, IP14 5AH Telephone: +44 1449 706680 Business hours: 9:00 a.m. to 6:30 p.m. (GMT) Monday to Friday except holidays ELI0095A RST Instruments Ltd. Page 12...
