Riley Hopkins FLASH FORCED AIR Assembly Instructions

Hide thumbs
1
2
3
4

Advertisement

Table of Contents

Assembly Instructions
RILEY FLASH FORCED AIR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLASH FORCED AIR and is the answer not in the manual?

Questions and answers

Related Manuals for Riley Hopkins FLASH FORCED AIR

Summary of Contents for Riley Hopkins FLASH FORCED AIR

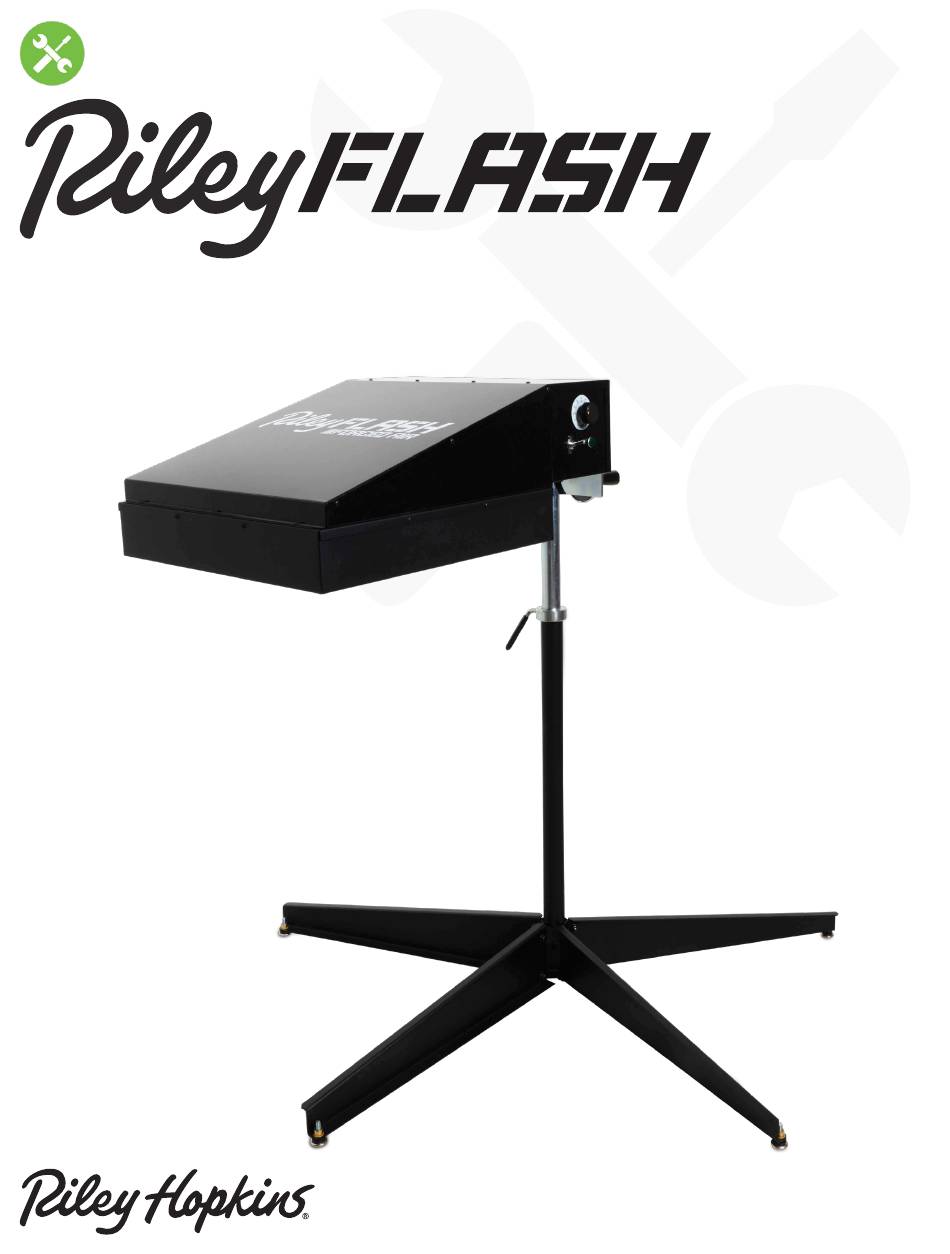

  • Page 1 Assembly Instructions RILEY FLASH FORCED AIR...
  • Page 2 Tools Required: • (x2) 1/2” open end wrench • (x1) Phillips screw driver What’ s in the box Part # Item Qty. AF2-4000RH-H AIR FLASH HEATER 97-011 UPPER TUBE 13-141 COLLAR 1 7/16 ID 97-184 BENT BOLT 93-022 KNOB 5/16-18 X 1”L STUD 97-190 TUBE ASSEMBLY 90-580...
  • Page 3 LEVELING KNOB DOWN FLANGE HEAT PRODUCING UNIT DO NOT LEAVE HEATER UNATTENDED General Operating Instructions: 1. Adjust height of heater above platen to suit specific conditions. 2. Rotate knob to level heater above platen. 3. Adjust temperature heat setting. 4. Air Flash will heat to operating temperature in approximately 5 minutes. 5.
  • Page 4 MANUFACTURE’S WARRANTY All products are warranted against defects in workmanship at the time of shipment. The obligation under the above warranty shall be limited to the repair or replacement of any part or parts manufactured by the dryer manufacturer without charge F.O.B. factory that may prove defective within 12 months from the date of shipment, which are returned to dryer manufacturer.
