Summary of Contents for Riley Hopkins RILEY FLASH 16X16

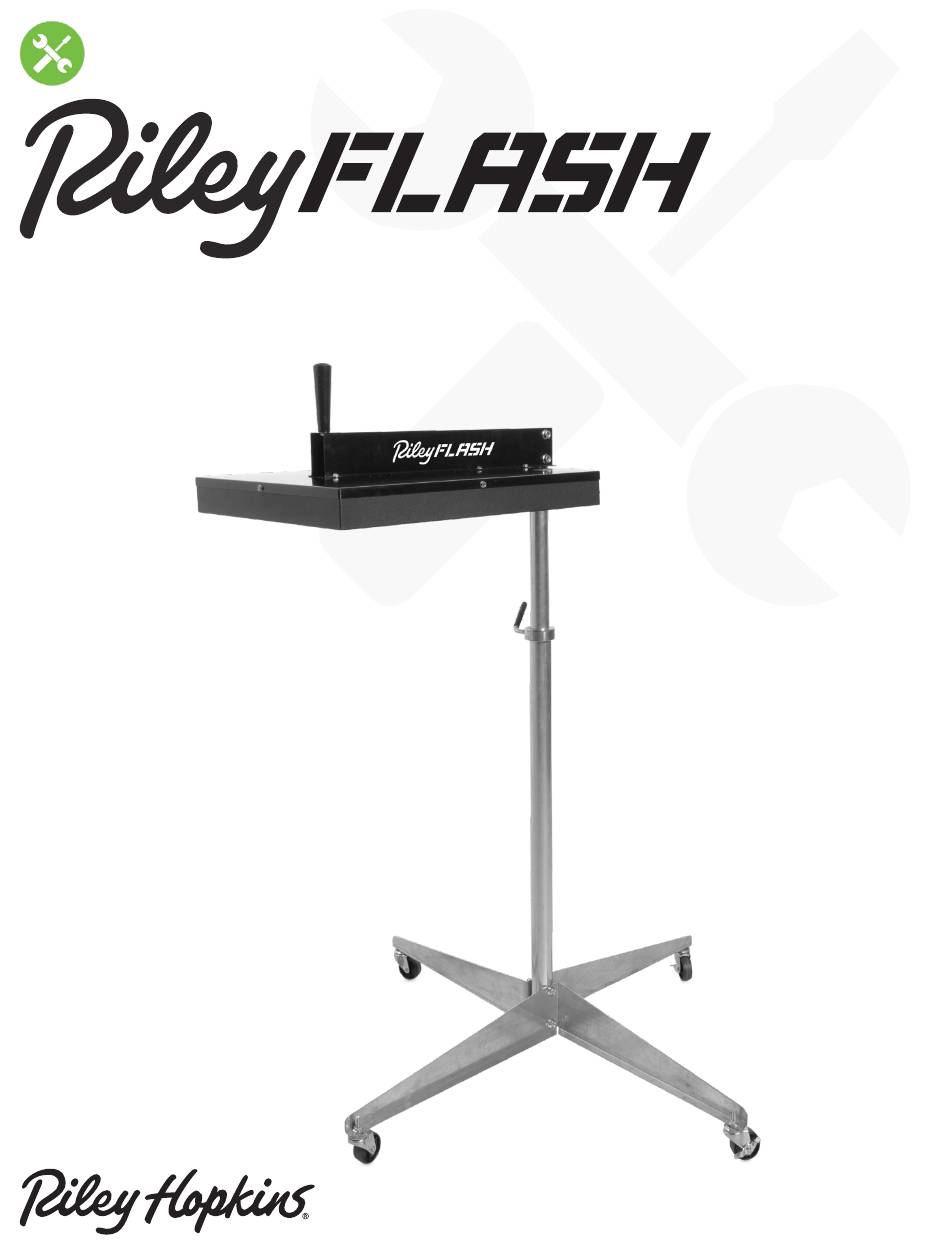

  • Page 1 Assembly Instructions RILEY FLASH 16X16...
  • Page 2 Tools Required: • (x1) 1/2” open end wrench • (x1) 7/16” open end wrench What’ s in the box Item Qty. HANDLE-BLACK 1/4-20 INSERT BOLT-1/4-20X1/2HHCS (ZINC) MOUNTING BRACKET BLK HEATER NUT 5/16-18 SERRATED BOLT-5/16-18 X 1-3/4 SERR FL HEX HD ZP TUBE 1.38 DIA TUBE 1.63 DIA COLLAR 1 7/16 ID...
  • Page 3 HEAT PRODUCING UNIT DO NOT LEAVE HEATER UNATTENDED General Operating Instructions: 1. Adjust height of heater above platen to suit specific conditions. 2. Riley Flash will heat to operating temperature in approximately 5 minutes. 3. All operating/curing temperatures should be checked with a temperature monitoring device of your choice.
  • Page 4 MANUFACTURE’S WARRANTY All products are warranted against defects in workmanship at the time of shipment. The obligation under the above warranty shall be limited to the repair or replacement of any part or parts manufactured by the dryer manufacturer without charge F.O.B. factory that may prove defective within 12 months from the date of shipment, which are returned to dryer manufacturer.
