ermengineering LTSE-200 Use And Maintenance Manual

Timing belt welder & milling machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

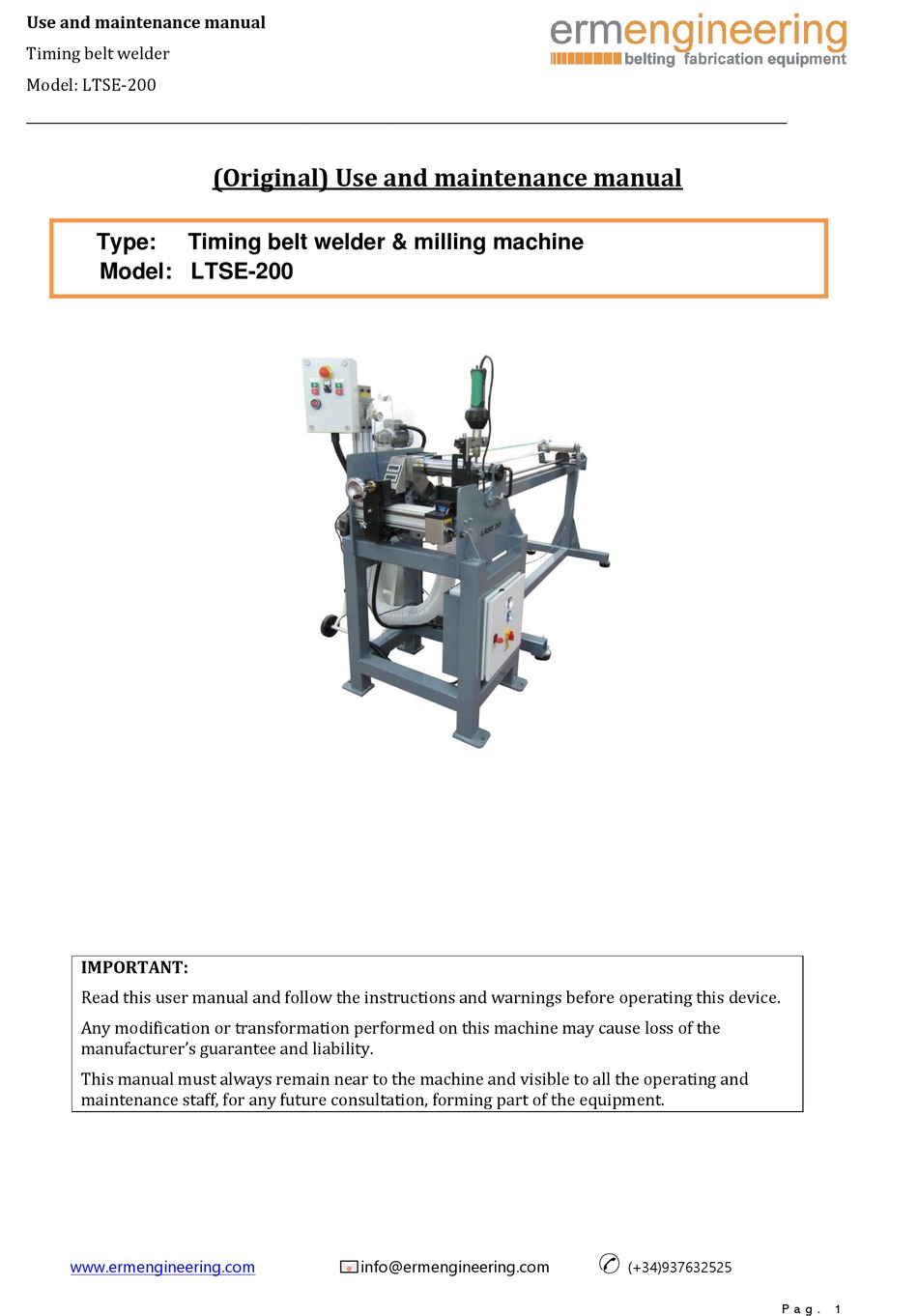

Use and maintenance manual
Timing belt welder
Model: LTSE-200
____________________________________________________________________________________________________________________
Type:
Timing belt welder & milling machine
Model: LTSE-200
IMPORTANT:
Read this user manual and follow the instructions and warnings before operating this device.
Any modification or transformation performed on this machine may cause loss of the
manufacturer's guarantee and liability.
This manual must always remain near to the machine and visible to all the operating and
maintenance staff, for any future consultation, forming part of the equipment.
www.ermengineering.com
(Original) Use and maintenance manual
info@ermengineering.com
✆
(+34)937632525
P a g . 1
